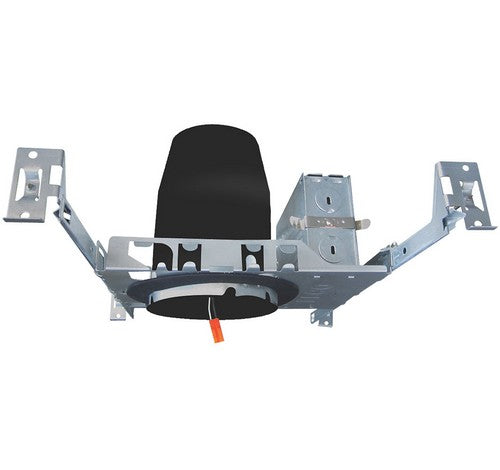

Elco Lighting EL390ICA

EL390ICA Product Description

3" new construction dedicated LED housing. Compatible with MR16 LED lamps with PSA37 or 3" LED inserts.

FEATURES :

Single wall IC construction, for use in insulated ceilings.
Flicker Free LED Dimming.
Transformer (EL390ICA-7 only): 277V to 120V step-down transformer.
Trims and inserts sold separately, MR16 LED with PSA37 or 3" Insert.

SPECIFICATIONS :

Wattage 14W
Voltage 120V or 277V
Wet Location Listed with Shower Trims
Damp LocationListed

Lamp: Designed for use with ELCO 3" LED inserts, LED modules, or PSA37 with 3" MR16 trims.

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 5/8". Suitable for t-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Dimmability:
Dimmability based on lamp.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
