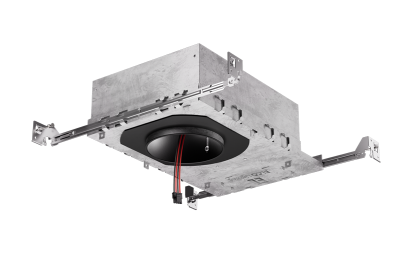

Elco Lighting E45KT12ICAD 4″ Tunable White Koto™ IC Airtight Housing, Lumens 1250 lm, Voltage 120/277V, Dimming 0-10V

Elco Lighting E45KT12ICAD

E45KT12ICAD Product Description

120/277V AC/50-60Hz. Must be used with Tunable White Koto™ LED Light Engines (ELK19TWD Series).

Features:

IC Airtight for direct contact with insulation.
120/277V AC/50-60Hz universal input voltage
Smooth, flicker-free dimming and CCT tuning
Dimmable to 0.1%, dim to dark
E45KT10 (1000 lm, 14W)
E45KT12 (1250 lm, 18.3W)
Control Modules Ordered Separately

Specifications:

Wattage 14W - 18.3W
Lumens 1000 lm - 1250 lm
Voltage 120/277V AC
Dimmable 0-10V
Lamp Type LED

Technical Details:

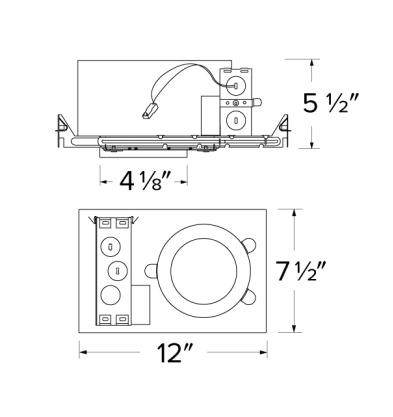

Construction: Double Wall IC Rated for direct contact with insulation. For use in IC and Non-IC conditions. Up to 1100 lumens. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation: Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information. For use with ELCO Tunable White Koto™ LED Light Engines (ELK19TWD Series)

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.95.

Dimmability: 3-in-1 dimming: Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through. JA8-2022-E Title 24 Compliant.
