Elco Lighting E3LK66ICAD-EM1 3" IC Airtight New Construction Housing for Architectural Koto™ LED Engine with 90 min. Emergency Battery Back-Up, Voltage 120/277V, Dimming 0-10V/Triac/ELV
E3LK66ICAD-EM1
Elco Lighting E3LK66ICAD-EM1
E3LK66ICAD-EM1 Product Description
Elco Lighting 3" IC Airtight New Construction Housing for Architectural Koto™ LED Engine with 90 min. Emergency Battery Back-Up, Voltage 120/277V, Dimming 0-10V/Triac/ELVFEATURES:
IC Airtight for direct contact with insulation.
Koto™ Architectural Housing: 120/277V 0-10V/Triac/ELV or 120V Triac/ELV with optional Emergency Battery Backup.
Must be used with Architectural Koto™ LED Light Engines (ELK19 or ELK21 Series).
Lumen output based on module
Specifications:
Wattage 10.5W
Lumens 750 (ELK19) - 950 (ELK21) lm
Voltage 120/277V or 120V
Dimmable Triac/ELV, 0-10V/Triac/ELV
Technical Details:
Construction: Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

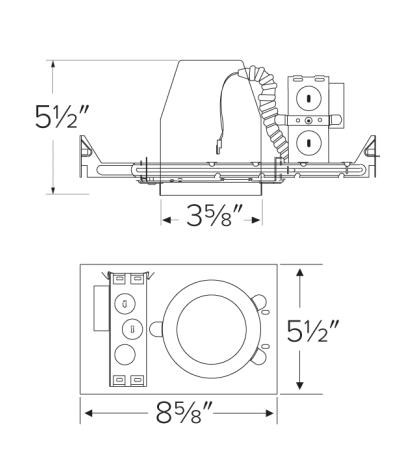

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 3 5/8". Suitable for t-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Electrical: Input Voltage: 120V or 120/277V. Dimmability: Triac/ELV or 0-10V/Triac/ELV
Listings: UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Feed Through. UL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283. Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.
