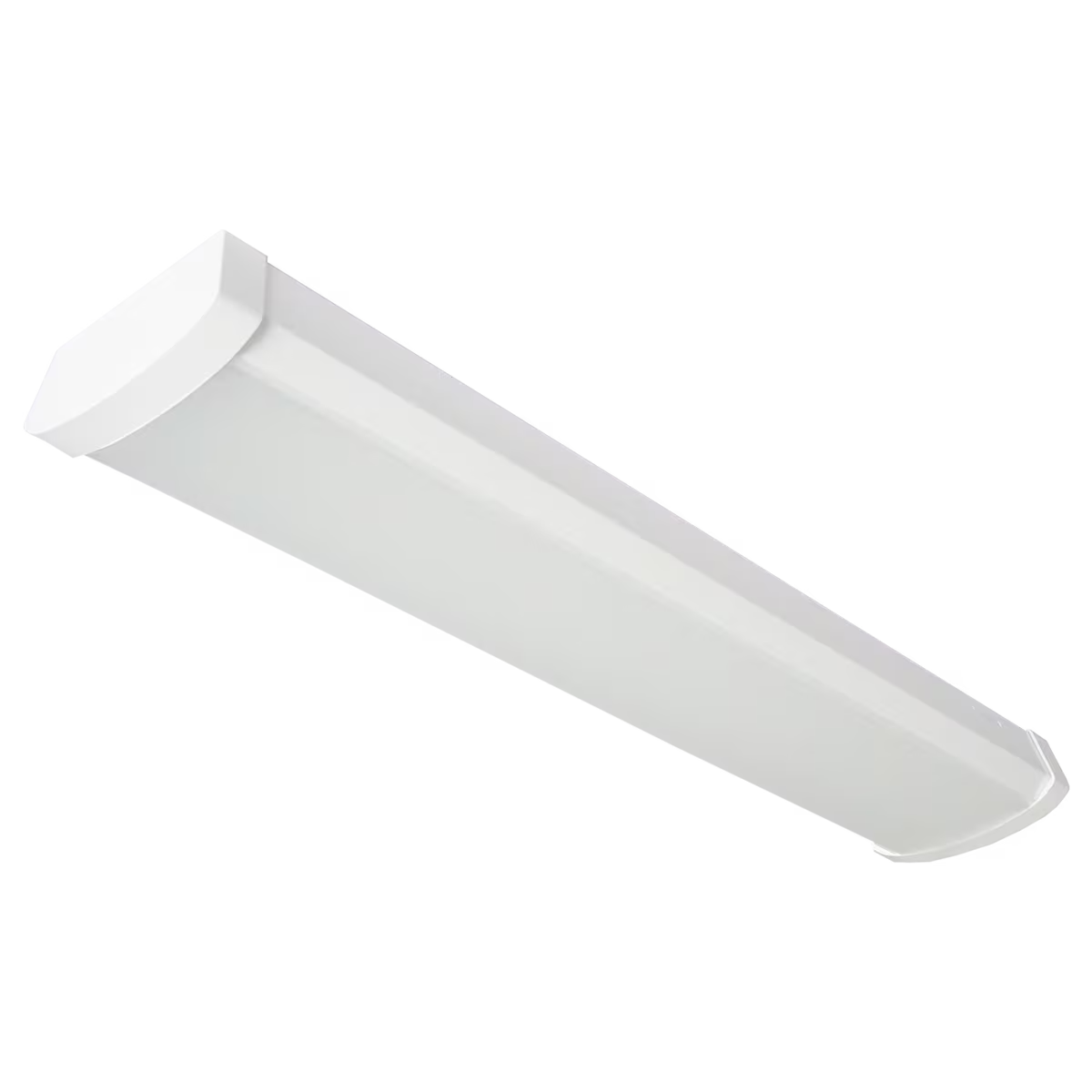

Eiko LLW2/20W/8FCCT/UD

LLW2/20W/8FCCT/UD Product Description

This 2-foot LED fixture operates on 120-277VAC, delivering 2,300 lumens at 20W with an efficacy of 115 lm/W. Available in 3500K, 4000K, and 5000K CCT options, it features a CRI of 80+ and supports 0-10V dimming. With a damp location rating, it meets DLC Standard, T20 Exempt, RoHS, FCC, and UL compliance. The fixture's dimensions are 27 3/16" (L), 5 5/16" (W), and 2 1/8" (H). It has a white housing and polycarbonate lens, operating in temperatures ranging from -4°F to 122°F (-20°C to 50°C). No auxiliary output is included.

Specifications:

Brand: EiKO
Voltage: 120-277VAC
Lumens (lm): 2,300 lm
Wattage: 20W
Efficacy (lm/W): 115 lm/W
CCT (Color Temperature): 3500K / 4000K / 5000K
CRI (Color Rendering Index): 80+
Dimming: 0-10V Dimming
Nominal Size: 2 Foot
DLC Version: DLC Standard
T20 Status: Exempt
Wet/Damp/Dry Location Rating: Damp
RoHS Compliant: Yes
FCC Compliant: Yes
UL Listed: Yes
Length: 27 3/16" [691 mm]
Width: 5 5/16" [135 mm]
Height: 2 1/8" [54 mm]
Housing Color: White
Lens Material: Polycarbonate (PC)
Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
SKU: LLW2/20W/8FCCT/UD
UPC: 31293125774

About Eiko:

EiKO, founded on entrepreneurial spirit over 46 years ago, has grown from a specialty lamp company to a leading provider of traditional lamps, LED lamps, fixtures, wireless sensors, and controls, serving industrial and commercial customers across the US and Canada. Agile and responsive to the ever-changing lighting industry, EiKO remains committed to delivering innovative solutions and exceptional customer experiences. With a strong focus on putting customers first, EiKO continues to evolve, expand its product offerings, and maintain its reputation for excellence, ensuring continued growth and success in an increasingly dynamic market.
