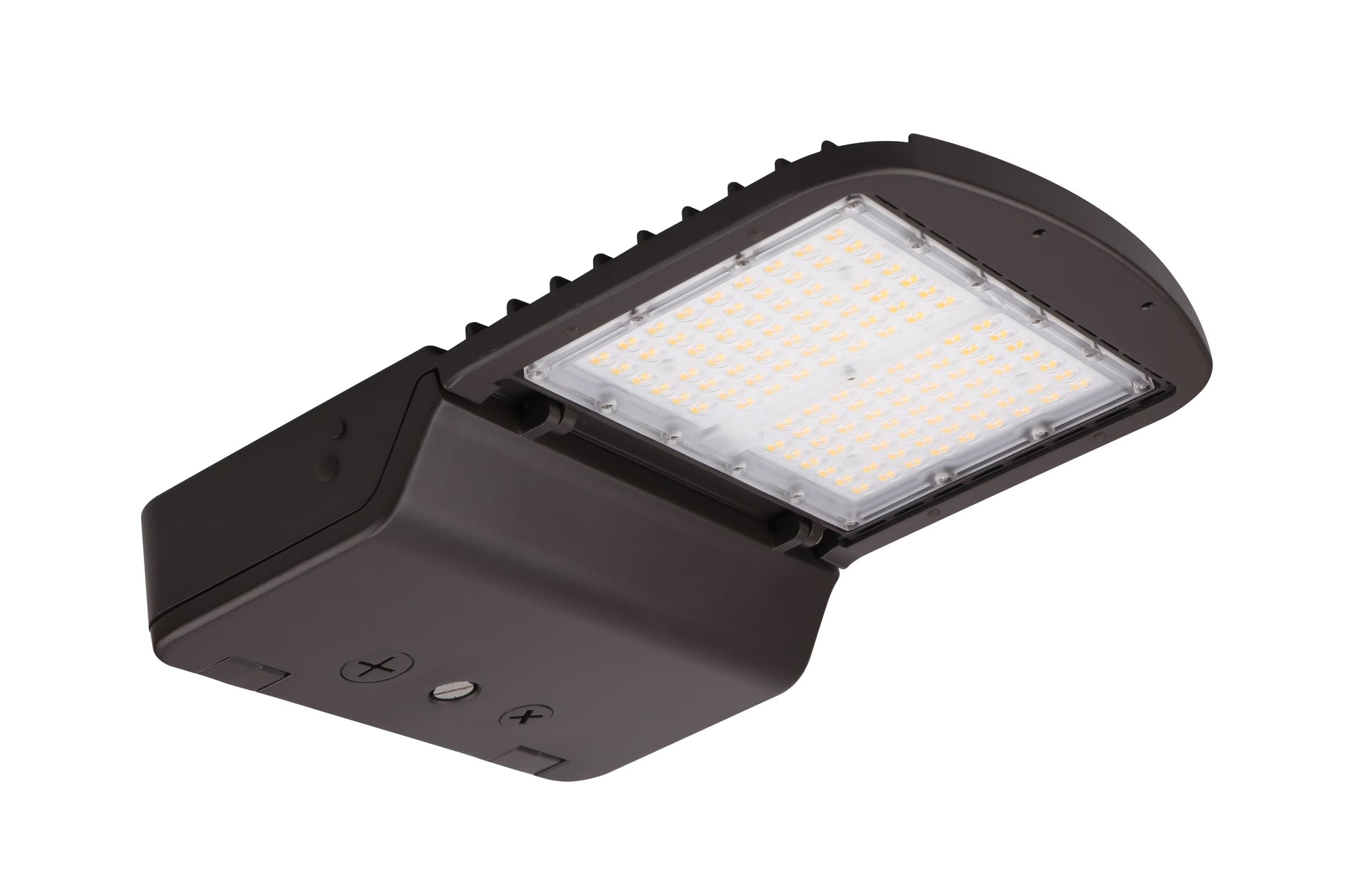

Eiko AAL1-PS100-40T4-U

AAL1-PS100-40T5-U Product Description

Low-profile architectural design for area lighting applications, Controls Ready makes adding controls quick and easy. Includes screw-on receptacle for stand-alone sensors or networked lighting controls, NEMA 7-pin photocell receptacle available via factory retrofit, T2, T3, T4, T5 optics available, Multiple mounting options available for versatility (brackets sold separately), Zero-access hinged junction box for easy installation and maintenance, Includes 1 m pre-installed power cord, 1/2" side knockout, PowerSet feature allows multiple lumens to be turned off right out of the box. 1 m pre-installed power cord, 1/2" side knockout, PowerSet feature allows multiple lumens to be turned off right out of the box, FieldCCeT feature allows multiple color temperatures to be set in a single fixture.

Specifications:

Brand: Eiko
Voltage    : 120-277VAC
Lumens (lm): 14,000/11,200/8400 lm
Wattage: 100/80/60W
Efficacy: (lm/W)    140 lm/W
CCT: 4000K
CRI: 80+
Dimming: 0-10
Replacement For/Equivalent: up to 175-320W HID
DLC Version: DLC Premium
T20 Status: Exempt
IP Rating: IP65
Wet/Damp/Dry Location: Wet
IK Rating: 8
RoHS Compliant: Yes
FCC Compliant: Yes
UL: Yes
Dimensions (L x W x H): L: 13 3/4" (349 mm), W: 10 5/16" (262 mm), H: 2 5/16" (74 mm)
Housing Color: Bronze
Lens Material: Polycarbonate (PC)
Operating Temp Range (°F/°C): -40F to 122F (-40C to 50C)
Driver Surge Protection (kV): L/N-PE: 10kV, L-N: 10kV
Additional Surge Protection (kV): 10kV included, 20kV option
Auxiliary Output: 12V, 100mA
SKU: AAL1-PS100-40T5-U
UPC: 31293136060
