DMF Lighting M4NCRS15OES

M4NCRS15OES Product Description

Please call us at 323-937-4444 OR email us at buyriteelectric@gmail.com for pricing on this product

Note: Lighting module only, housing and trim sold separately

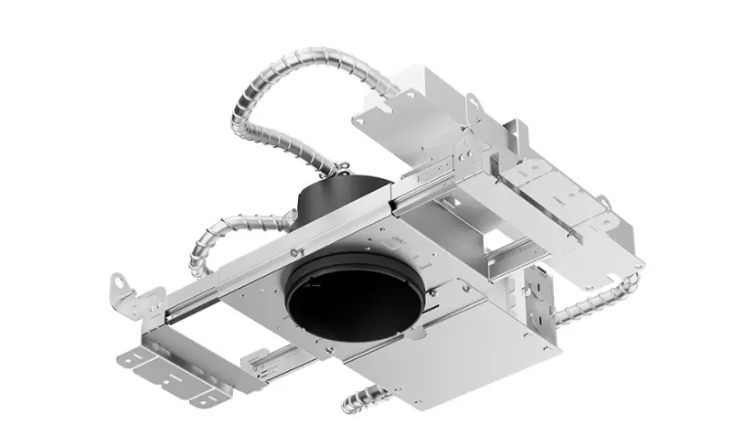

This DMF Lighting M-Series 4" Round New Construction Housing with battery backup and remote test switch is made to be installed in open ceilings with access to joists.

For use with 1,500 lumen DRD2 and DRD4 0-10V dimmable LED modules and M Series round trims
Junction Box: Equipped with 10 knockouts: two 1/2" and two 3/4" trade size knockouts on top, two 1/2" trade size knockouts on side, four romex knockouts on top. Approved for 8 (four in, four out) #12 AWG 70°C
Mounting: Adjustable bar hangers for 9"-24" joist spacing. Compatible with traditional joists, Armstrong™, Hat Channel, and T-Bar
Ceiling: 4 1/4" round opening with pre-installed mounting brackets that allow vertical adjustment of bar hangers 1 / 2" to 1 1 / 4"
Listings: Metallic outlet box certified UL514A, STC/IIC Sound Rated, ASTM E283 certified Air Tight, IC (Insulation Contact) Rated, Compliant to FCC Title 47 Part 15; Class B
Emergency Battery Specifications: 90 minutes of illumination time
Remote Test Switch: Must be installed according to local code can be used with any flanged, flangeless, or decorative trim type

Specifications:

Brand:    DMF Lighting
Manufacturer Part Number:    M4NCRS15OES
Lumens:    1,500 Lumens
Dimmable:    0-10V
Special Features:    Battery Backup
Length:    24"
Width:    12"
Height:    4.37"
