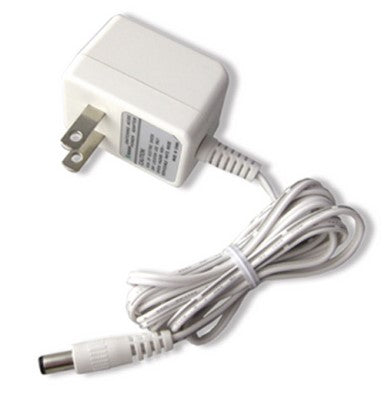

Diode LED DI-PA-12V6W-CL2-W Class 2 DC Plug-In Adapter, Wattage 6W, Voltage 12V, White Finish
DI-PA-12V6W-CL2-W
Diode LED DI-PA-12V6W-CL2-W
DI-PA-12V6W-CL2-W Product Description
12V Adapters convert the AC power of homes and businesses into low-voltage LED power supplies. Converting your voltage with a DC Adapter is easy: just plug your LED lights into the 1/4 inch jack of the LED light adapter either directly or using connectors. An adapter is a right choice if you are installing just a few light fixtures, or want to avoid making a permanent installation with a bigger, hard-wired power driver. Our LED adapter is a plug-and-play LED lighting transformer at its most effortless.
While LED power supplies are rated to accept a maximum rated load, for optimum performance we recommend loading a power supply to no more than 80% of its labeled rating. For example, a 100W power supply should be loaded only to 80W. Optimum performance accounts for various environmental factors like ambient temperature fluctuations and power surges.
Specifications:
Input Voltage / Frequency: 100 ~ 240VAC / 50 ~ 60HzMax Load: 6W / 0.5A
Cass 2 Certifed: No
Output Voltage: 12VDC
Ambient Temperature: +32 ~ +104°F (0 ~ +40°C)
Operating Temperature: +32 ~ +130°F (0 ~ +52°C)
Minimum Load: None
Dimmable: Yes. PWM & RGB(W) dimmers/controls & DMX controls
Input Current Full Load: 0.2A@115VAC
Primary Connection: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
Secondary Leads: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
Voltage Boost: No
Circuit Breakers: Auto Reset Hiccup
Environment: Indoor / Dry Location
Working Humidity: 20 ~ 90% RH non-condensing
Housing / Cooling: Plastic Class II power unit, no FG connection / free air convection
Dimensions: Length = 1.90", Width = 1.30", Height = 1.30"
Warranty: 1 Year
