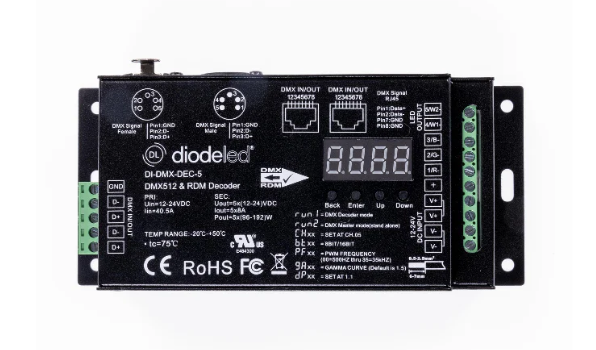

Diode LED DI-DMX-DEC-5

DI-DMX-DEC-5 Product Description

Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 5-channel decoder featuring a digital display for fast and easy connections, has drive capacity up to 480W per receiver at 24V.

Specifications:

Brand:    Diode LED
Input/Output Voltage: 12-24VDC
Input Signal: DMX512
Output Signal: PWM
Maximum Load: 5 CH x 96W/192W
Input/Output Connection Type: RJ45/5-Pin XLR
Max Run: 10 Interconnected Units
5 Channel x 8A
Standalone feature
Compatible with 12 to 24 VDC LED lighting
Indoor / Damp Location (IP20)
Length: 6.45"
Width: 2.87"
Height: 1.5"

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors
