Diode LED DI-24V-TE-LIN-RGBW-50-016
DI-24V-TE-LIN-RGBW-50-016 Product Description

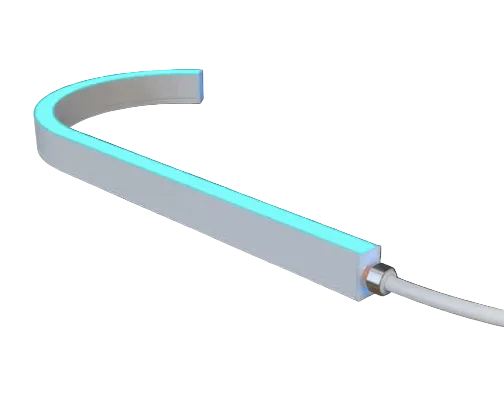

The Diode LED is a premium LINAIRE® Flex Side Bend RGBW Linear Light designed for architectural applications requiring vibrant full-spectrum color, a dedicated 5000K white channel, and seamless dot-free illumination. Operating on 24V DC constant voltage, this flexible side-bending light engine delivers dynamic RGB color effects along with crisp daylight white illumination for sophisticated indoor and outdoor lighting installations.
Specifications:
Brand: DIODE LED
SKU / MPN: DI-24V-TE-LIN-RGBW-50-016
Product Type: LINAIRE® Flex Top Bend RGBW Architectural Linear LED Light Engine
Electrical: 24V DC Constant Voltage; 4.5W/ft; RGBW Dimmable; Maximum Run Length: 16.4 ft.
Optical: RGBW + 5000K; Up to 134 Lumens/ft (5000K White); 49 Lumens/ft White Channel; Red: 17 Lumens/ft; Green: 63 Lumens/ft; Blue: 12 Lumens/ft; 90+ CRI; Fully Diffused Dot-Free Illumination
Mounting: Compatible with LINAIRE® Flex Top Bend Mounting Channel, Spine Channel, Mounting Clips, and Dead End Cap
Mechanical: Flexible Top-Bending Construction; 1.96 in. Cut Points; UV Stabilized; 29 LEDs/ft; 5050 LED Chips; 96 in. White Bare Lead 20/5 AWG UL 3132 Wire with Strain Relief on Both Ends; IP65 Field Termination / IP67 Factory Assembly; UL Listed 2108
Dimensions: 16.4 ft. Length × 0.63 in. Width × 0.63 in. Height
Operating Temperature: -4°F to 176°F (-20°C to 80°C)
Lifecycle: TM-21 (LM-80): >50,000 Hours; 5-Year Limited Warranty
Applications: Architectural Accent Lighting, Cove Lighting, Hospitality, Retail, Entertainment Venues, Landscape Lighting, Curved Installations, Indoor & Outdoor Decorative Lighting, Custom RGBW Architectural Lighting
Accessories: DI-LIN-TE-MTCH-39 Mounting Channel; DI-LIN-TE-SPINE-39 Spine Channel; DI-LIN-TE-MTCL-2 Mounting Clips; DI-LIN-TE-DEC Dead End Cap; Compatible VLM and Mean Well 24V Drivers; TOUCHDIAL™, CASAMBI®, ATTRIBUTE®, and Nicolaudie DMX Controllers
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
