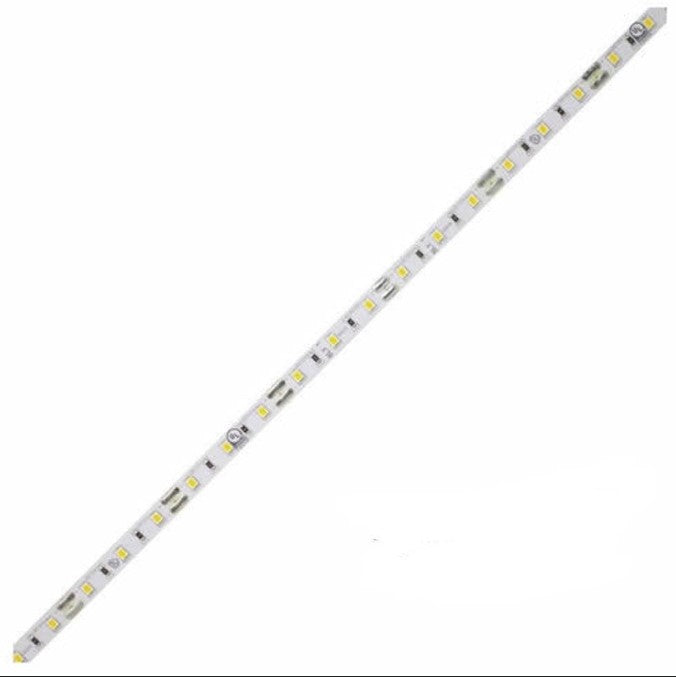

Diode LED DI-12V-BLX1-42-016

DI-12V-BLX1-42-016 Product Description

When precision performance matters... The all new precision engineered BLAZE X is the newly enhanced LED tape light, leading the industry in lighting performance and quality. BLAZE X has 95+ CRI and higher R-Values that provides precision color rendering, superior long-lasting performance, and all with the Diode LED 12-year warranty. The X Series comes in a vast variety of higher efficiency lumen outputs for any application. You won’t find a more superior tape light in the market today.

Specifications:

Voltage: 12VDC
Wattage: 1.54W /ft
Lumens: 126/ft
Cut Points: 2 in
Max Run: 37 ft
LED Chips: 18/ft
Color Temperature: 4200K
CRI: 95+
Dimmable: Yes
Dimensions: Width = 0.32", Height = 0.1"
Environment: Indoor / Damp Location
Certification: UL Listed 2108
Warranty: 12 Year
LED Chip Type: Epistar 2835 Guang Mau
LED Chip Beam Angle: 120°
Luminous Efficacy 3 (lm/w): 75~86
Mounting 4 : 3M™ 55280 Adhesive
Connections 5 : 3 ft. Female DC plug on end. 3 ft. hard-wire lead opposing end. Leads: UL 2464 20/2 AWG
Ambient Temp 6 : -4 ~ 122°F (-20 ~ 50°C)
