Diode LED DI-12V-0025

DI-12V-0025 Product Description

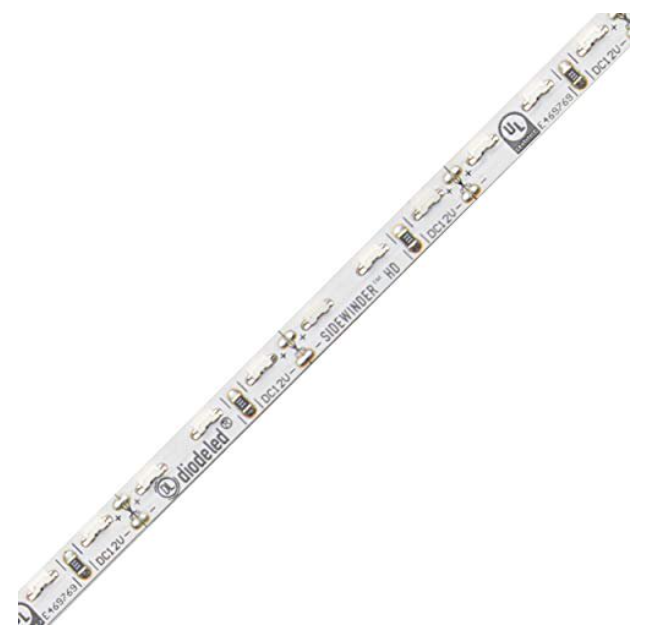

Diode LED SIDEWINDER 16.4 ft LED Tape Light, Color Temperature 3000K- 12V

Specifications:

Input Voltage: 12VDC Constant Voltage
Power Consumption / ft.: 1.44W / 120mA (STD), 2.88W / 240mA (HD)
LED Chip Type: Epistar 335 SMD Chip
LED Chip Beam Angle: 120°
LED Chips / ft.: 18 (STD), 36 (HD)
Mounting: 3M™ 55280 Adhesive
Field Cuttable: ~ 2 in. (STD), ~ 1 in. (HD)
Maximum Run ¹: 16.4 ft.
Connections ² : 3 ft. Female DC plug on end. 3 ft. hard-wire lead opposing end. Leads: 20/2 AWG
Dimmable: Yes
Ambient Temp ³ : -4 ~ 122°F (-20 ~ 50°C)
Operating Temp ⁴ : -4 ~ 176°F (-20 ~ 80°C)
Environment ⁵: Indoor/dry location
