Diode LED DI-0783

DI-0783 Product Description

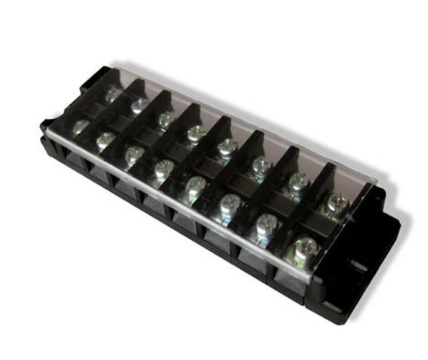

8-Way Hard-Wire Splitters are a convenient accessory for joining up to seven LED light fixtures, LED strip light runs, or LED light bar runs to a single power source. The UL Listed junction features eight terminals for a positive connection and eight terminals for a negative connection and can be used for any voltage up to 450V AC. This terminal block is perfect for creating parallel runs with LED Strip Lights, and any other LED light installation where many fixtures or strip sections need to be powered by the same source, but each needs its own distinct connection to power. The 8-Way Hard-Wire Splitter is made of heavy-duty plastic and comes with a plastic cover to protect the splitter’s electrical connections. Each splitter has a hole on each end for secure mounting to a flat surface and is UL Listed..

Specifications:

Certifications: UL Component Recognized
Dimensions: Length = 4.75", Width = 1.3", Height = 0.9"
Environment / IP Rating: Indoor
Max Voltage: 450V AC
Max Amperage Rating: 30A
Connection Type: Screw down terminal lock
Connection Size: Fits 24-12AWG wire. Stud size: 4mm
Housing: Phenolic Aldehyde
Mounting: Mount with applicable screws (mounting screws not included)

About Diode LED:

Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
