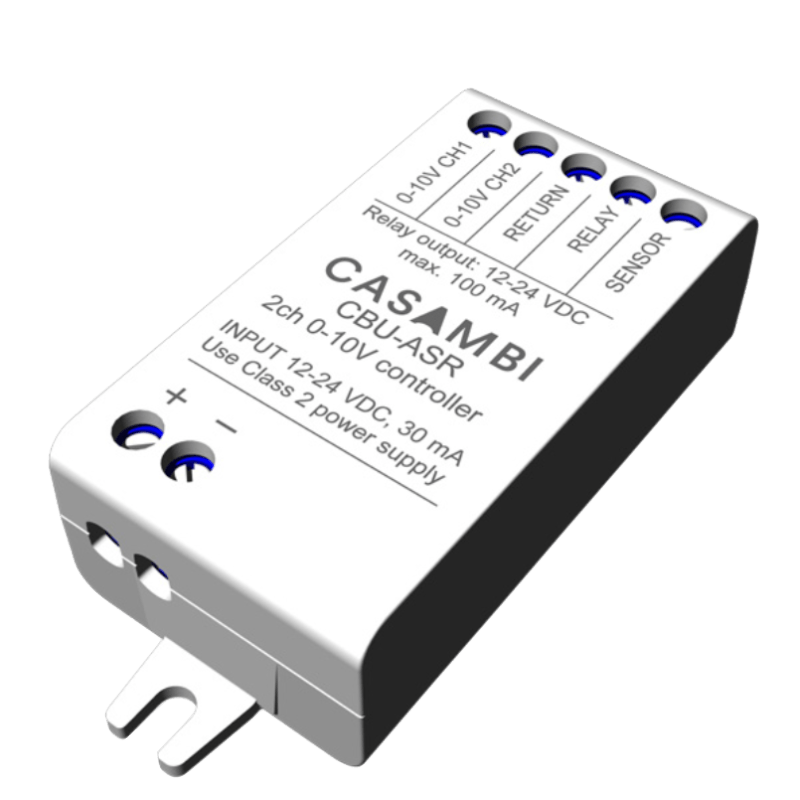

Diode LED CBU-ASR
CBU-ASR Product Description
The CBU-ASR can be configured to control 2 single-channel drivers or 1 multi-channel drivers. Both 0-10 VDC channels can be configured to control 2 channels of brightness or one channel can control brightness and one channel can control the temperature. The CBU-ASR also has a sensor input which works with all standard low voltage occupancy sensors. The sensor input can also be configured to accept a signal from a light sensor.
Specifications:
Brand: Diode LED
SKU: CBU-ASR
UPC: 848333028601
Input Voltage: 12–24V DC
Output Voltage: 0–10V DC
Input Current: 30 mA
Dimensions: 72.6 x 30.0 x 18.0 mm
Control Type: 2-Channel 0–10V Analog Control
Product Type: Bluetooth Mesh Wireless LED Controller
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
