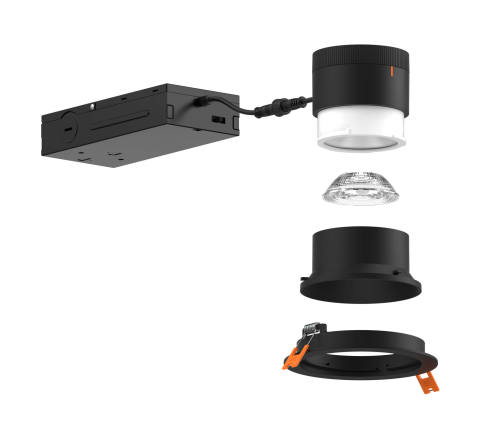

Dals Lighting RC04-CC-20-WWWH 4 Inch Modular Downlight, 5CCT, 20 degree Beam Angle, Wall Wash Reflector, White Finish

Dals Lighting RC04-CC-20-WWWH

RC04-CC-20-WWWH Product Description

A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces.

Specifications:

SKU: RC04-CC-20-WWWH
Brand: Dals Lighting
Size: 4"
Watts (W): 16 / 20 / 24
Delivered lumens: Up to 2200
CRI: 90
Voltage (V): 120 / 277 / 347
Beam angle (deg): 20 / 35 / 60
UGR: <22
Lifespan (hrs): 50,000FT rating: FT6
Binning: 3 SDCM
LED model: COB
Color temperature: 2700K / 3000K / 3500K / 4000K / 5000K
Environment: Wet
Location: Indoor / Outdoor
Operating temp (°C): -24 to 44
IP rating: IP65
Input voltage (V): 120–347
Output voltage (V): 34.7
Output current (mA): 575
Power factor (%): 92
Driver type: Constant current
Dimming: Triac / ELV / 0–10V
THD: 19.6%
Cut hole size (in): 4-1/4"
Housing material: Aluminum
Finish type: Painted
Lens material: Acrylic
Optic type: Optical lens
Certifications: ETL, FCC, ICES, ES, JA8/T24, IC, ASTM E283-04

About Dals Lighting:

DALS Lighting manufactures designer lighting products focusing on smart, innovative, and emerging technologies. Our lighting systems are displayed and stocked at several lighting showrooms and retailers, electrical distributors, and e-commerce platforms. Our products are also sold on projects across North America through an extensive network of agents who work with architects, engineers, contractors, and distributors. We strive for excellent service, superior-to-market lead times, environmental innovation, and product quality.
