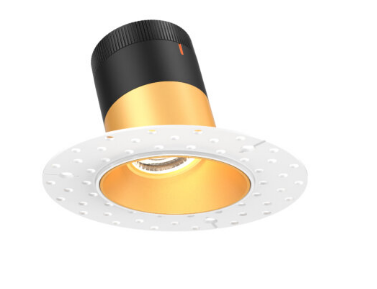

Dals Lighting RC03-CC-20-SLGD-TL 3 Inch Modular Downlight, 5CCT, 20 degree Beam Angle, Sloped Ceiling, Gold Finish, Trimless

Dals Lighting RC03-CC-20-SLGD-TL

RC03-CC-20-SLGD-TL Product Description

A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces.

Specifications:

SKU: RC03-CC-20-SLGD-TL
Brand: Dals Lighting
Size: 3"
Watts (W): 8/10/12
Delivered lumens: Up to 1000
CRI: 90
Voltage (V): 120/277/347
Beam angle (deg): 20/35/60
UGR: <19
Lifespan (hrs): 50,000
FT rating: FT6
Binning: 3 SDCM
LED model: COB
Color temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Environment: Wet
Location: Indoor/Outdoor
Operating temp. (°C): -20 to 40
IP rating: IP65
Input voltage (V): 120–347
Output voltage (V): 35.4
Output current (mA): 256
Power factor (%): 92
Driver type: Constant current
Dimming: Triac / ELV / 0–10V
THD: 18%
Cut hole size (in): 3-1/2"
Housing material: Aluminum
Finish type: Painted
Lens material: Acrylic
Optic type: Optical lens
Certifications: ETL, FCC, ICES, ES, JA8/T24, ASTM E283-04
