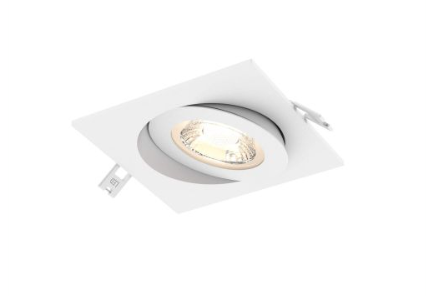

DALS Lighting FGM4SQ-CC-WH Pivot 4" Square LED Gimbal Downlight - 90° Tilt - CCT Selectable - 120V - White Finish
FGM4SQ-CC-WH
DALS Lighting FGM4SQ-CC-WH
FGM4SQ-CC-WH Product Description
The Pivot series of LED gimbal downlights by DALS are an excellent choice to provide long lasting, energy efficient LED illumination for your new construction or remodel ceiling application. Being CCT-selectable, they allow you to choose between 5 different white light color temperatures - from warm 27K to daylight 50K white light. These fixtures are low-profile and IC-rated, making them suitable for direct contact with insulation. This model has an even greater range of tilt than normal gimbals, allowing for a full 90º of gimbal tilt in any direction. Ideal applications include wall washing, sloped ceilings and highlighting artwork or other features.
Every fixture includes a junction box with integrated dimmable driver
Can be daisy chained
Superior LED performance and lifespan
90° tilting, 360° rotation
Minimal heat emission
Aluminum construction
Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
40° beam spread
IC certification (suitable for direct contact with insulation)
Air-tight certified as per ASTM E283-04
Suitable for wet locations
Specifications:
Manufacturer:DALS
Manufacturer Part Number:FGM4SQ-CC-WH
UPC:775902022145
Lumens:1,475 Lumens
Wattage:18 Watts
Input Voltage:120V
Dimmable:120V
Color Temperature:2700K, 3000K, 3500K, 4000K, 5000K
Downlight Diameter:4"
Downlight Type:Gimbal
Color:White
Special Features: CCT Selectable
Length:4-15/16"
Width:4-15/16"
Height:1-7/16”
