Eaton's bolt‑on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one‑, two‑, or three‑pole designs. Built and listed to UL 489. All products 15‑100A are HACR rated. Choose from Bolt‑On Types BAB, QBHW, HBAX, HBAW.
FEATURE :

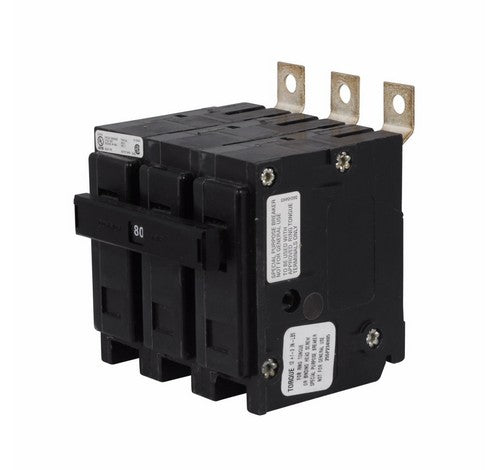

Product Name : Quicklag Industrial Thermal-Magnetic Circuit Breaker
Catalog Number : BAB3080H
Dimensions:
Height: 4.7 IN
Length: 3.8 IN
Width: 3.2 IN
Weight: 1 LB
Notes: HACR rated
SPECIFICATIONS :
Type: Quicklag
Amperage Rating: 80A
Mounting: Bolt-on
Interrupt Rating: 10 kAIC
Number Of Poles: Single-pole
Voltage Rating: 120/240V
Main Circuit Breaker: CL
Wire Size: #14-4 AWG Cu/Al
Trip Type: Non-Interchangeable
Used With: Square D HOMELINE, General
Electric, Crouse-Hinds, Thomas & Betts, Murray
and ITE/Siemens Load centers
Warranties: 1 year
UPC: 786679303801
Certifications:
UL Listed
CSA Certified
Product compliance: No Data
