CREE LED Lighting ZR24T-50L-40K-10V 44 Watt 2x4 LED Troffer Light Fixture Dimming 5000 Lumens Full Definition Color Rendering

This 44 watt 2x4 LED troffer in a color temperature of 4000K delivers high quality and energy efficient light at 111 lumens per watt and full definition 80+ color rendering. The ZR24 LED troffer is designed to last up to 75,000 hours and delivers 5000 lumens with advanced dimming capabilities to allow for increased energy savings. This DLC Qualified troffer is ideal for both new construction or renovation.

FEATURES :

Utilizes Cree TrueWhite® Technology
Assembled in the US & Mexico
Efficacy: 111 LPW
Delivered Light Output: 5000 lumens
Input Power: 45 watts
CRI: 80+ CRI
CCT: 4000K, 5000K
Input Voltage: 120-277 VAC
Limited Warranty: 10 years†
Lifetime: Designed to last up to 75,000 hours
Controls: 0-10V (Standard)*
Mounting: Recessed

SPECIFICATIONS :

CONSTRUCTION & MATERIALS
Durable cold rolled steel housing provides strength and uniformity
Ultra-thin 3.9" fixture height and lightweight design effectively target a broad range of plenum spaces and allow for easy installations
Fixture is pre-painted for enhanced smooth finish
Includes t-bar clips and holes for mounting support wires (by others)
Includes lens gasket to prevent ingress of insects

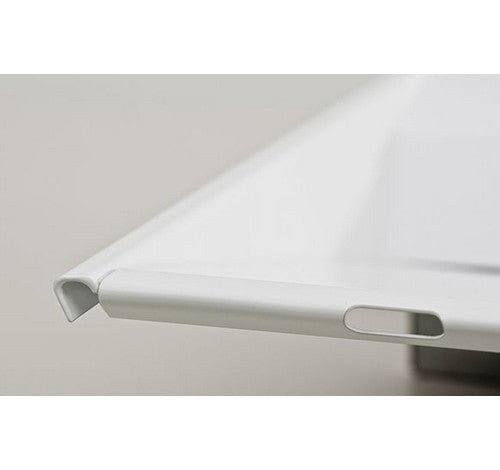

Fixture sides and ends are hemmed in for safe, easy handling
Not for installation within 3" (76mm) of insulation

OPTICAL SYSTEM
Unique fixture design creates perfect balance of both horizontal and vertical illumination

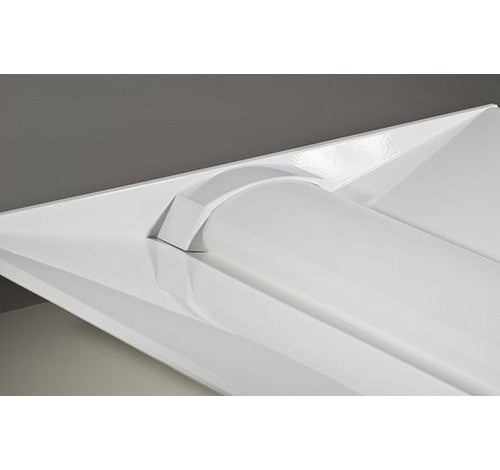

Optimized smooth lens eliminates pixelation and delivers a low-glare, diffused light distribution

ELECTRICAL SYSTEM
Cree born components including highly efficacious Cree® LED chips along with an integral high-efficiency Cree® driver
Power Factor = 0.9 nominal
Input Power: Stays constant over life
Input Voltage: 120-277V, 50/60Hz
Battery Backup: Consult factory
Temperature Rating: Designed to operate in temperatures 0-35˚C and below room side and plenum side
Total Harmonic Distortion: <20%

CONTROLS
Continuous dimming to 5% with 0-10V controls comes standard*

REGULATORY & VOLUNTARY QUALIFICATIONS
UL924 (EB option)
cULus Listed
Suitable for damp locations
Designed for Indoor use
DLC qualified.
RoHS compliant.
Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions

Best Seller Product: No
UPC: 849665004424
Call For Price: No
Type of Area: Gas Station & Convenience Store, Industrial & Warehouse, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, ROHS, UL Listed
Color Temp: 4000K
Dimmable: Yes
Lamp Life: Up to 75,000 hours
CRI: >80

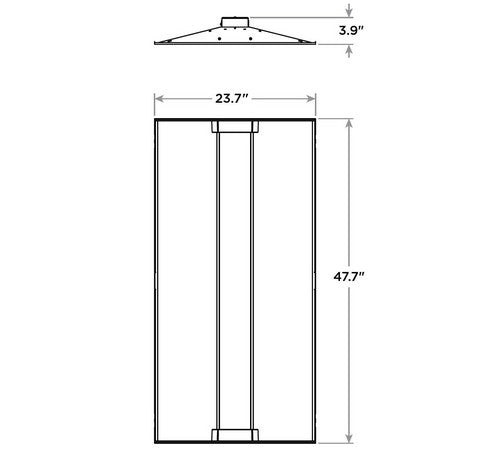

Dimensions: L 47.7" x W 23.7" x H 3.9"
Length: 47.7"
Width: 23.7"
Height: 3.9"
Lumen Output: 5000
Manufacturer: CREE
Product Warranty: 10 Year
Part Number: ZR24T-50L-40K-10V
Minimum Start Temperature: 32 Deg F
Technology: LED - New Fixture
Voltage: Multivolt 120V-277V
Wattage: 44 Watt
Weight Each: 15.00 lbs
Ballast Start Type: Instant Start
Fixture Type: 2 x 4 Ft - New Fixture
Fixture Length: 4 Feet / 48 Inches
Beam Angle: Normal
