CREE Lighting CR14-31L-30K-S-NO

CR14-31L-30K-S-NO Product Description

This 34 watt CR14 1x4 Architectural LED troffer provides high-quality light with a 90 CRI color quality and 3100 lumens in a color temperature of 3000K. The CR14 troffer allows for easy application for either commercial new construction or renovated spaces and includes a 10 year warranty with 75,000 lifetime hours. This troffer also provides step level dimming to 50%.

FEATURES:

Utilizes Cree TrueWhite® Technology (90 CRI) or available in 80+ CRI
Active Color Management
Room-Side Heat Sink
Assembled in the US & Mexico
Efficacy: 90-125 LPW
Delivered Light Output: 2200, 3100, 4000, 5000 lumens
Input Power: 22-50 watts
CRI: 90 CRI (Cree TrueWhite® Technology), 80+ CRI
CCT: 3000K, 3500K, 4000K, 5000K
Input Voltage: 120-277 VAC or 347 VAC
Warranty†: 10 years
Lifetime: Designed to last from 50,000 hours (HD), 75,000 hours (Standard TW), and 100,000 hours (HE TW)
Controls: Step Level to 50%, 0-10V Dimming or Lutron EcoSystem Enabled to 5%
Mounting: Recessed

SPECIFICATIONS:

Cree TrueWhite Technology:
A revolutionary way to generate high-quality white light, Cree TrueWhite® Technology mixes the light from the highest performing red and unsaturated yellow LEDs. This patented approach delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and lifelong color consistency, all while maintaining high luminous efficacy—a true no compromise solution.

Room-Side Heat Sink:
An innovative thermal management system designed to maximize cooling effectiveness by integrating a unique room-side heat sink into the diffusing lens. This breakthrough design creates a pleasing architectural aesthetic while conducting heat away from LEDs in a temperature-controlled environment. This enables the
LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency.

Construction & Materials:
Durable 20-gauge steel housing with standard troffer access plate for electrical installation.
Field replaceable light engine integrates LEDs, driver, power supply, thermal management, and optical mixing components.
One-piece lower reflector finished with a textured high reflectance white polyester powder coating creates a comfortable visual transition from the lens to the ceiling plane.
Provided t-bar clips and holes for mounting support wires enable recessed or suspended installation.
Individual fixtures may be mounted end to end for a continuous row of illumination.

Optical System:
Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixelation and color fringing.
Components work together to optimize distribution, balancing the delivery of high illuminance levels on horizontal surfaces with an ideal amount of light on walls and vertical surfaces. This increases the perception of spaciousness.
Diffusing lens integrated with upward-facing LED strip eliminates direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low-glare high angle appearance.

Electrical System:
Integral, high-efficiency driver and power supply.
Power Factor = 0.9 nominal
Input Power: Stays constant over life.
Input Voltage: 120-277V, 347V- 50/60Hz
Battery Backup: Consult factory.
Temperature Rating: Designed to operate in temperatures 0-35 C and below room side and plenum side.
Total Harmonic Distortion: < 20%

Controls:
Step dimming to 50% comes standard.
Optional continuous dimming to 5% with 0-10V DC control protocol.
Optional Lutron EcoSystem® Enabled option allows seamless integration with Lutron EcoSystem controls.

Regulatory & Voluntary Qualifications:
UL924 (EB14 option).
cULus Listed.
DLC qualified.
Suitable for damp locations.
Designed for Indoor use.

Best Seller Product: No
UPC: 603149215566
Call For Price: No
Type of Area: Gas Station & Convenience Store, Large Retail & Open Areas, Office & Small Retail
Ballast Factor: 1.00
Certifications: CUL Listed, DLC Approved, ROHS, UL Listed
Color Temp: 3000K
Dimmable: Yes
Lamp Life: 75,000 hours
CRI: 90

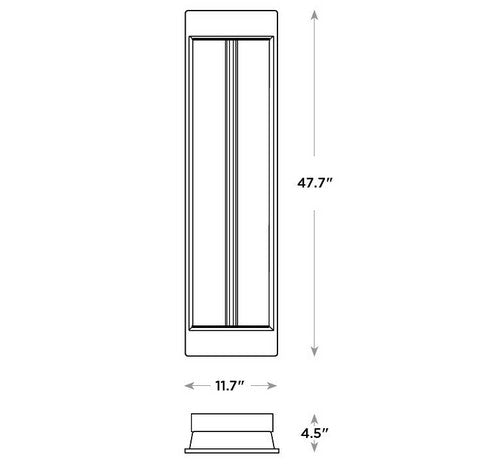

Dimensions: 47.7" x 11.7" x 4.5"
Length: 47.7"
Width: 11.7"
Height: 4.5"
Lumen Output: 3100
Manufacturer: CREE
Product Warranty: 10 Year
Part Number: CR14-31L-30K-S
Minimum Start Temperature: 32 Deg F
Technology: LED
Voltage: Multivolt 120V-277V
Wattage: 34 Watt
Weight Each: 12.00 lbs
Ballast Start Type: Instant Start
Fixture Type: 1 x 4 Ft - New Fixture
Fixture Length: 4 Feet / 48 Inches
Beam Angle: Normal

About CREE Lighting:

Cree Lighting is a market-leading innovator of Indoor, Outdoor, and Consumer Bulb LED lighting. We are uniquely positioned to innovate new ways in which lighting will serve as a platform for emerging technologies and capabilities that will enrich lives, improve society and safeguard our planet.
