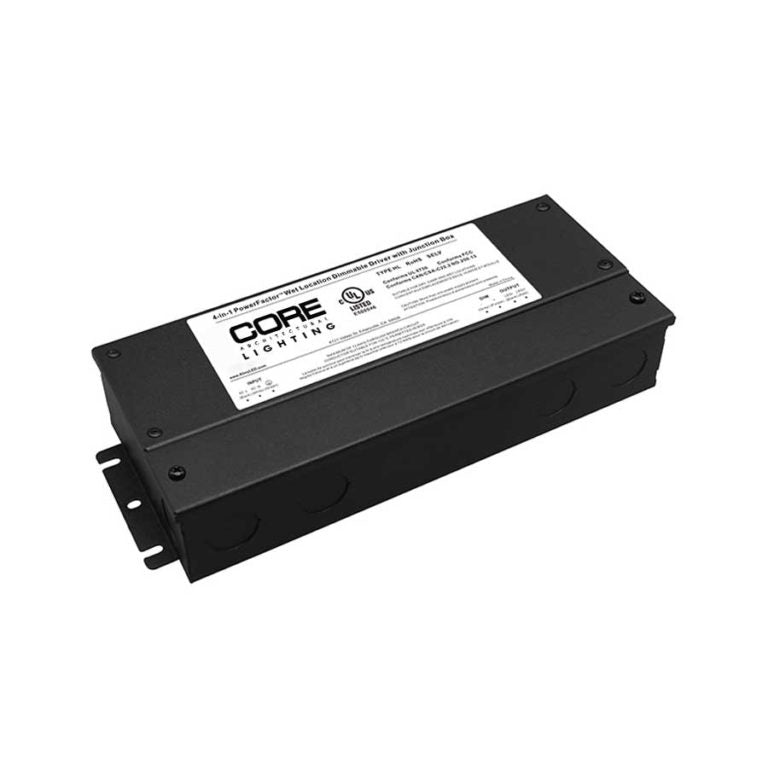

Core Lighting PSRX-288W-24V-UNV-CL2 Class 2, 4-in-1 Dimmable Driver with Junction Box - 288W - 24V - UNV
PSRX-288W-24V-UNV-CL2
Core Lighting PSRX-288W-24V-UNV-CL2
PSRX-288W-24V-UNV-CL2 Product Description
PSRX SERIES indoor/outdoor drivers are highly efficient, stable with smooth dimming capability compatible with most TRIAC, ELV, MLV, 0-10V reverse and forward phase dimmers, and on/off switches. These drivers are factory derated which allows them to be loaded to maximum wattage capacity.
Features:
Manufacturer: Core Lighting
SKU: PSRX-288W-24V-UNV-CL2
High power factor/efficiency
Short circuit and over current protection
Dry or wet location
Superior PWM dimming technology
Compatible with TRIAC, MLV, and ELV dimmers
Factory derated
Flicker-free 100-0% dimming
Only 10% minimum load
Line Regulation: 5%
CLASS 2: Yes
Input Voltage Range: 100-277V AC
Input Frequency Range: 47 - 63 Hz
Power Factor: > 0.99 (120VAC); ≥0.97 (277VAC)
AC Current (Max): 1.8A (100V AC)
Output Voltage: 24V DC
Output Current (Max): 4A
Output Wattage (Max): 200W
