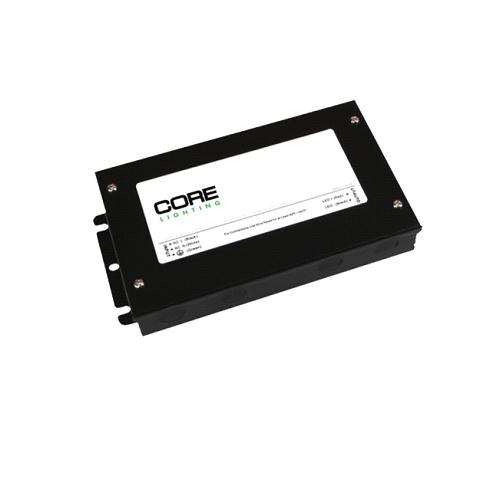

Core Lighting PSDL-60W-24V-UNV

PSDL-60W-24V-UNV Product Description

PSDL SERIES indoor/outdoor drivers are highly efficient, stable with smooth dimming capability compatible with most TRIAC, ELV, MLV, reverse and forward phase dimmers, and on/off switches. These drivers are derated allowing them to be loaded to maximum wattage capacity.

FEATURES:

Wattage: 60W
Input voltage: 120-277V AC
Output Voltage: 24V
Compatible with TRIAC, MLV and ELV dimmers
Minimum Load: 10%
Maximum Load: 100%
Short circuit and over current protection
Factory derated
Flicker-free dimming

SPECIFICATIONS:

CLASS 2 YES
LOAD REGULATION 2%
LINE REGULATION 5%
INPUT FREQUENCY 47~63 Hz
POWER FACTOR >0.92
EFFICIENCY >90%
MTBF 50,000 hrs.
OPERATING ENVIRONMENT -40ºF ~ 140ºF (-40ºC ~ 60ºC)
FUNCTION SURFACE TEMP -40 to +80 (25 C AMB)
STORAGE TEMPERATURE -40ºF ~ 176ºF (-40ºC ~ 80ºC)
HUMIDITY 20~90% RH, non condensing
LENGTH 7.4” (188MM)
WIDTH 3.63” (92.2MM)
HEIGHT 1.58” (40.1MM)
