Core Lighting PSDE-60W-24V-ELV-G2

PSDE-60W-24V-ELV-G2 Product Description

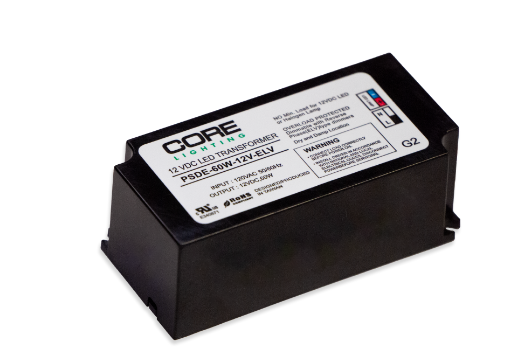

PSDE-60W-ELV is a compact electronic dimming driver suitable for LED lighting systems. Manufactured with an advanced patented circuit board provides
smooth dimming operation with ELV style dimmers. This driver is compatible with architectural dimming controls without the need for a separate interface. Its built-in short circuit protection and zero mInimum load requirements make this driver one of the most efficient in the market. Available in 12VDC and 24VDC.

Specifications:

Manufacturer: Core Lighting
SKU: PSDE-60W-24V-ELV-G2
CLASS 2 Yes
WATTAGE 60W
INPUT VOLTAGE 120V AC
FREQUENCY 50/60 Hz
OUTPUT VOLTAGE 12V DC | 24V DC
OUTPUT CURRENT 0.53A
DIMMINGElectronic Low Voltage (ELV)
CASING TEMPERATURE 194°F (90°C) MAX
AMBIENT OPERATING TEMP 104°F (40°C) MAX
THD <13%

About Core Lighting:

Core Lighting's focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality, and customer-focused service.
