Core Lighting LSA-MDC-WH

LSA-MDC-WH Product Description

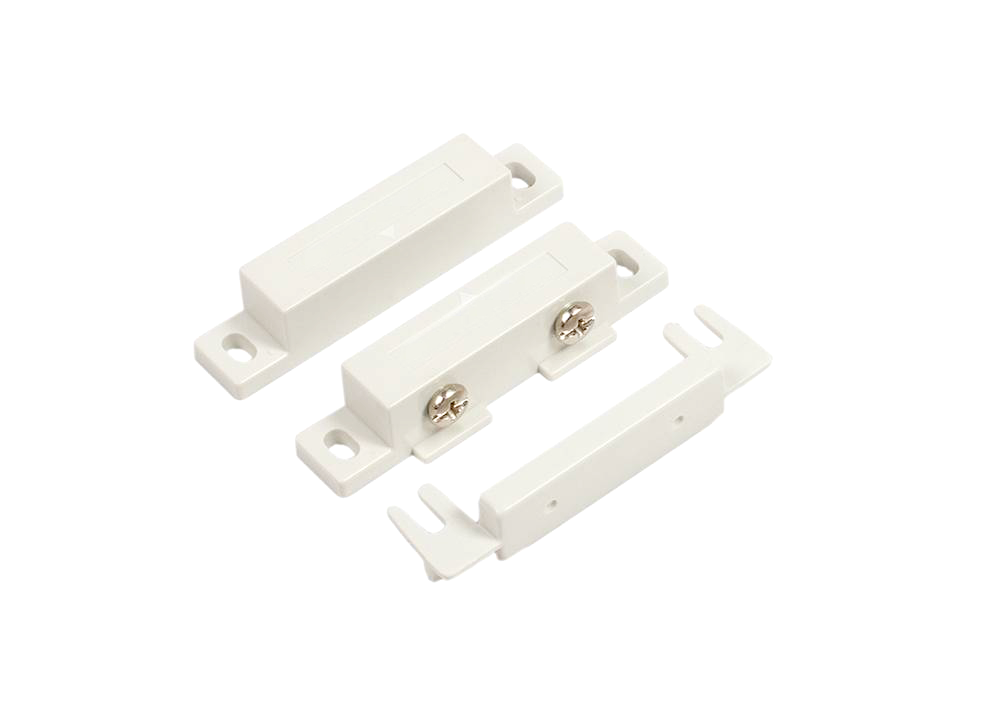

The LSA-MDC is a two part magnetic switch that when separated, turns on your light. Simply mount inside a drawer or cabinet door so the two parts are in contact with each other while closed. Upon opening, the switch will turn the light on. Designed with slotted mounting holes for easy installation, adjust the distance between the magnet and sensor for the perfect fit.

Specifications:

Manufacturer: Core Lighting
SKU: LSA-MDC-WH
CLASS 2  Yes
OPERATING VOLTAGE  300V (MAX)
MAX LOAD 3 Amp
OPERATING TEMPERATURE  -15°F ~ 160°F
MAX OPERATION GAP 15.88mm (0.63 in)
LOCATION  Dry
WARRANTY 3 Years
CERTIFICATIONS UL, ULC Listed
DIMENSIONS 63.5 x 28.7 x 40.1mm
(2.4 x 1.13 x 0.5”) (LxWxH)

About Core Lighting:

Core Lighting's focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality, and customer-focused service.
