Core Lighting LNT20-VB-22K-PF-24V

LNT20-VB-22K-PF-24V Product Description

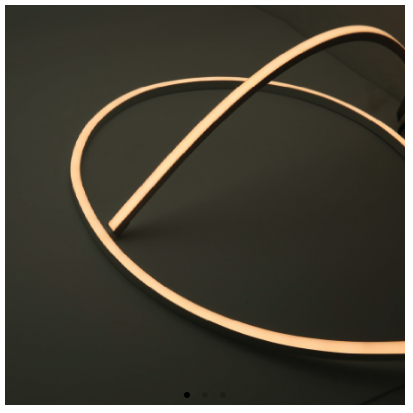

The LNT-20HBVB is a high performance, flexible LED strip designed as a neon replacemen, useful in a wide variety of indoor or outdoor applications where a smooth surface or continuous line of light is desired. It can bend around contours or tight curves horizontally or vertically without being damaged. It allows for easy installation with its factory sealed terminators and self locking male and female barrel connectors. Fully encapsulated UV protected and wet location rated.

Features:

• High color consistency
• Multiple CCT options available
• Ideal for indoor and outdoor use
• Continuous run length up to 32 Ft.
• Dimmable with CORE dimmable drivers
• UL Listed

Specifications:

POWER CONSUMPTION 1.5W per Ft.
LUMEN OUTPUT47 Lm. / Ft
CRI90+
DIMMINGTRIAC, MLV, ELV, 0-10V
MAXIMUM RUN LENGTH32 Ft.
CUTTABLEEvery 3.28 in (83.3mm)
POWER FACTOR≤ 1
OPERATING VOLTAGE24V DC
STORAGE TEMPERATURE-40°F (-40°C) to 140°F (60°C)
OPERATING TEMPERATURE-40°F (-40°C) to 131°F (55°C)
RATINGOUTDOOR (IP65)
LUMEN MAINTENANCE50,000 Hrs.
