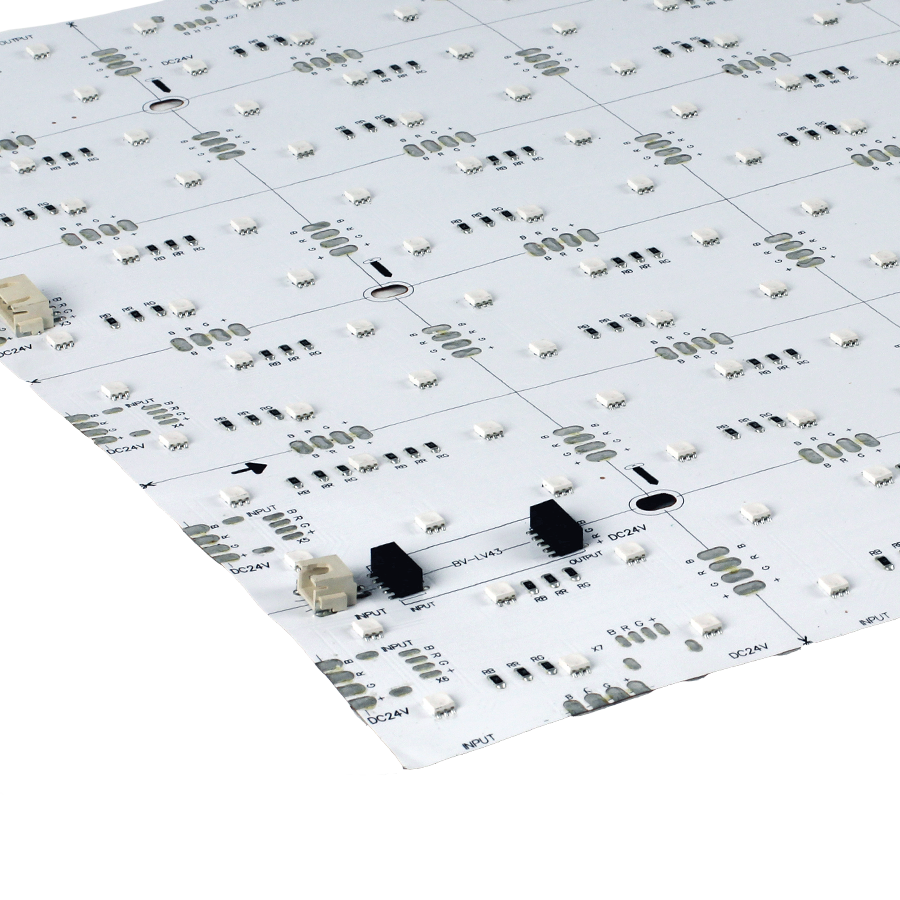

Core Lighting LFS-2412-RGBW-40K-24V

LFS-2412-RGBW-40K-24V Product Description

LFS-2412-RGBW is a flexible, color-changing + white LED sheet module ideal for high density and slim lighting applications. Achieve rich, color-changing lighting effects via RGBW controller (sold separately) or illuminate a whole area or spread. Rated to last 50,000 hours.

Specifications:

Manufacturer: Core Lighting
SKU: LFS-2412-RGBW-40K-24V
INPUT VOLTAGE 24V DC
POWER CONSUMPTION 35W
LEDs PER SHEET 288
MIN CUTTABLE LENGTH 76.2mm X 50.8mm
OPERATING TEMPERATURE -20ºC~60ºC
TOTAL CURRENT 0.810 A
HEAD VOLTAGE 23.93 V
TAIL VOLTAGE 23.89 V
HEAD CURRENT 29.2 mA
TAIL CURRENT 28.8 mA
HEAD TO TAIL VOLTAGE DROP RATE 0.17%
HEAD TO TAIL CURRENT DROP RATE  1.37%
DIMENSIONS 24” L x 12” W
CCT RGB + White 40K
