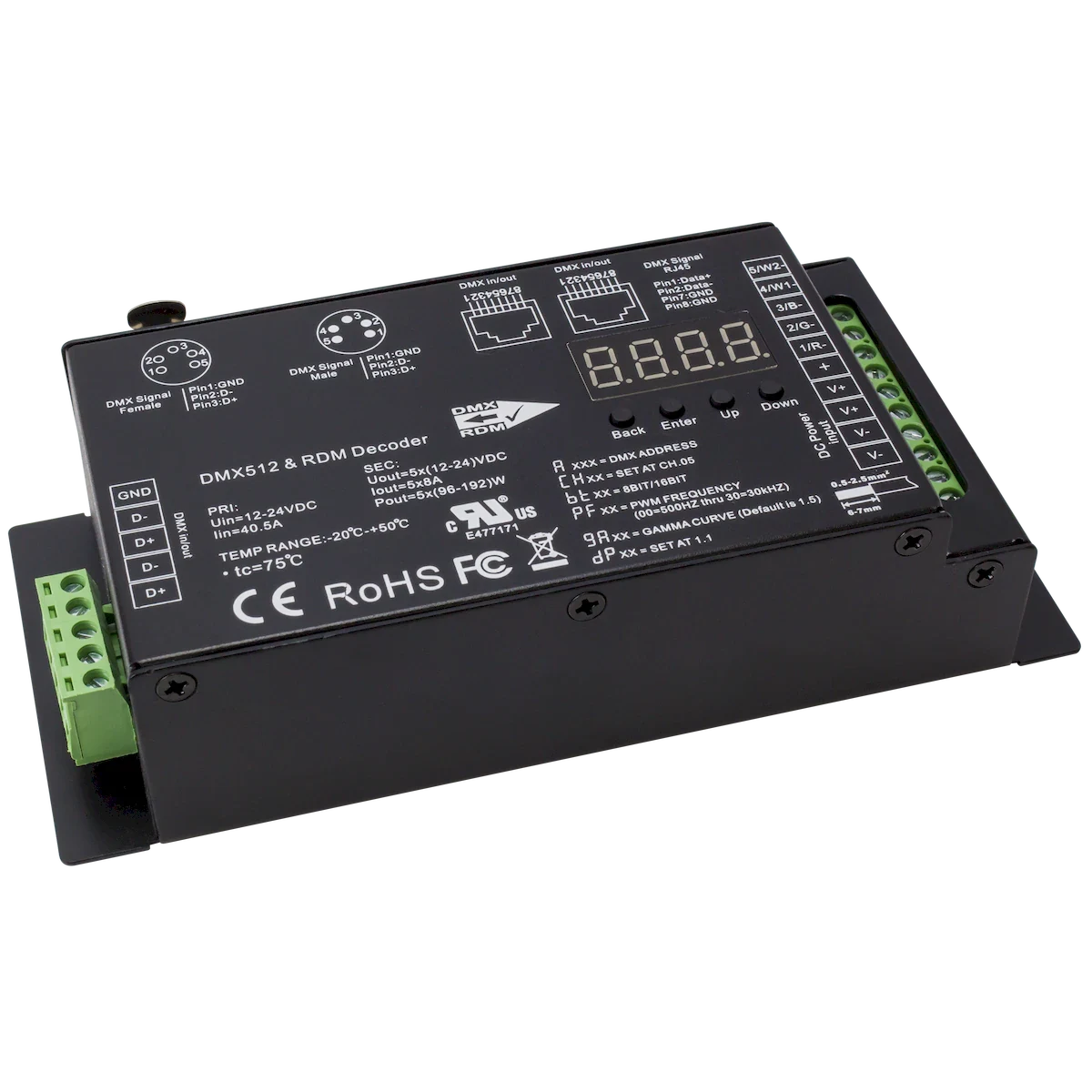

American Lighting REC-DMX-RJ45A-5CH

REC-DMX-RJ45A-5CH Product Description

The DMX 5-Channel Decoder translates DMX signals into the PWM control signal used by RGB LED lights, and allows for flawless integration into new and existing DMX installations. Using the 5-channel DMX receiver, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications.

Specifications:

Brand: American Lighting
SKU: REC-DMX-RJ45A-5CH
UPC: 714176016115
Input Voltage: 12–24V DC
Output Voltage: 12–24V DC
Input Frequency: DMX
Output Frequency: RGBCW
Wattage: 192 W
Temperature Range: -20°C to 50°C
Dimming: DMX
Finish: Black
Weight: 0.90 lbs
Width: 2.9 Inch
Length: 6.5 Inch
Height: 1.468 Inch
Safety Rating: cURus Recognized
Location Rating: Dry
Indoor: Yes
ROHS Compliant: Yes
FCC Compliant: Yes

Features:

5-channel capable output (8A per channel max)
Compatible with single color, tunable, and RGB based neon or tape light
Features easy to use RJ45, XLR5, or direct wire DMX inputs and outputs
Link multiple receivers for larger installs required separate addresses
8 bit or 16 bit PWM output resolution ratio
Requires 12-24V DC input and DMX controller for operation
