American Lighting HTL20-PXL-RGB1-12VDC-16

HTL20-PXL-RGB1-12VDC-16 Product Description

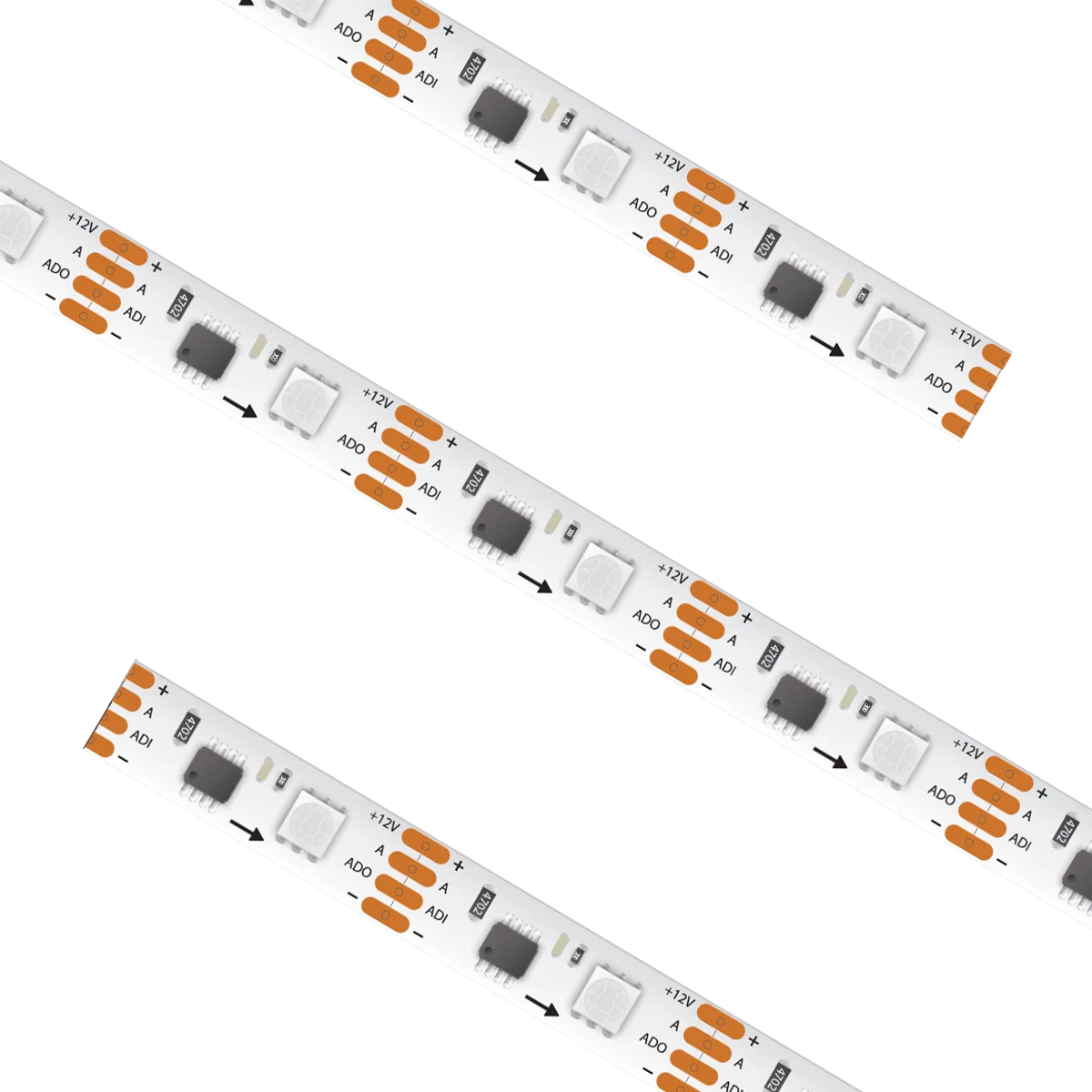

Digital pixel tape light features individually addressable LEDs, allowing for independent control of each LED to create dynamic colors and designs. Easily produce effects such as chasing, popcorning, waves, and strobe using the DMX 512 control protocol.

Specifications:

Brand: American Lighting
SKU: HTL20-PXL-RGB1-12VDC-16
UPC: 714176030357
Input Voltage: 12V DC
Input Frequency: 60Hz
Wattage: 2 W/ft
CCT: RGB
Lumens: 35
Cut Increment: 1.31 in
Max Run: 16.4 ft
Optics: 120° Beam Angle
Rated Life: 50,000 Hours
Temperature Range: -20°C (-4°F) to 40°C (104°F)
Dimming: DMX512 0 - 100%
Spacing: 33.3 mm
Weight: 0.36 lbs
Width: 0.03 ft
Length: 16.4 ft
Safety Rating: cULus Listed
IP Rating: IP20
Location Rating: Dry
Indoor: Yes

Features:

RGB dynamic pixel color mixing capabilities
Create millions of color combinations for impactful installations
Features SMD 5050 RGB LEDs
Cuttable every LED at 1.31” with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
IP20 uncoated
Control via DMX for color and dimming
cULus Listed dry locations
50,000 hours rated life
