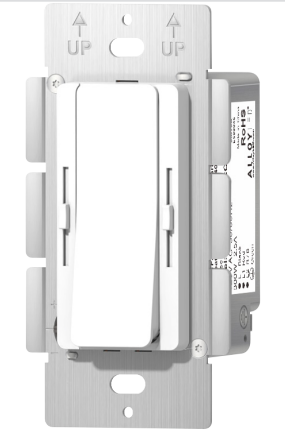

Alloy LED AL-97-03-24160
AL-97-03-24160 Product Description
The AdaptDrive is an all-in-one LED driver and dimmer that simplifies installation by fitting directly into a standard recessed electrical box—eliminating the need for a separate
driver location. UL Listed and Class 2 Compliant, AdaptDrive is available in a wide range of output options in both 12VDC and 24VDC configurations to suit a variety of low-voltage lighting applications. AdaptDrive also includes a breakthrough multitap version featuring dual 80W outputs, delivering up to 160W from a single unit. This is the first driver of its kind to provide this level of power in such a compact footprint—making it ideal for high-output applications where space is limited
Specifications:
Item Number: AL-97-03-24160
Product Type: LED Power Supply / Driver
Output Voltage: 24V DC
Rated Current: 6.67 A
Rated Power: 160 W
Minimum Load: 0%
Input Voltage Range: 120V AC
Input Current: 1.5 A
Frequency: 60 Hz
Power Factor (Average): >99%
Protection Type: Short-circuit protection (hiccup mode with automatic recovery)
Over-Voltage Protection: ≥110% constant current mode with automatic recovery
Operating Temperature: -40°C to +60°C / -104°F to +140°F
Operating Humidity: 20–95% RH (non-condensing)
Safety Standards: UL8750, CAN/CSA-C22.2 No. 250.13
EMC Emission: FCC Part 15 Subpart B, ANSI C63.4:2014 (US)
Dimensions (L × W × H): 4.13 × 2.12 × 1.59 in
