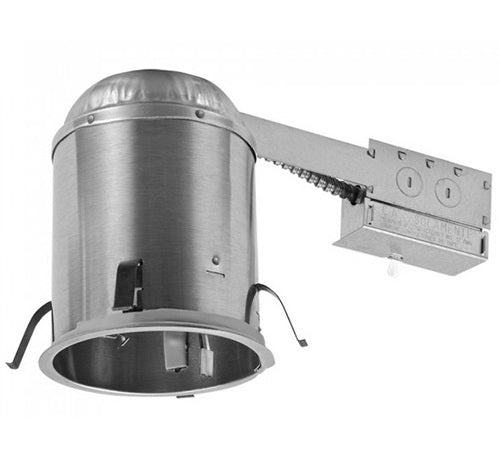

6'' LED CAN Remodel IC / Air Tight
2
sold in last
8
hours
LS-6R-IC-AT
$16.99
customers are viewing this product
PRODUCT DESCRIPTION
SPECIFICATIONS:
Sizes:
Size1 6 7/8 x 13 3/4
Size2 7 1/2” x 6 1/8
Housing:
Single wall PAinted Steel Housing gasket for IC/Air Tight in Insulated Ceiling
Housing can be adjusted for ceiling thickness up to 1-3/3/8”
Junction Box:
Listed For Trough Branch circuit wiring
Contains seven 7/8” knockouts and four Romex playouts with romex cable clamp
Ground wire provided on J-Box.
LED Engine:
10~ 100 Dimmable with most dimmers.
Heat Sink and aluminum board for low heat
operation of high power LED chip
Range of 3000k or 4000k color temp , 82 CRI
Produces 565~ 801 lumen output from Luminaire operating by 350mA connect.
Use 1.2 W High Power LED
LED Power Supply Driver
Class 2 constant current LED Driver 350mA
For 120v, 50-60Hz
Driver installed on junction box door for easy access from below ceiling
Quick Connect PUSH TERMINAL
Three QUICK CONNECTORS for fast easy wiring.
Sizes:
Size1 6 7/8 x 13 3/4
Size2 7 1/2” x 6 1/8
Housing:
Single wall PAinted Steel Housing gasket for IC/Air Tight in Insulated Ceiling
Housing can be adjusted for ceiling thickness up to 1-3/3/8”
Junction Box:
Listed For Trough Branch circuit wiring
Contains seven 7/8” knockouts and four Romex playouts with romex cable clamp
Ground wire provided on J-Box.
LED Engine:
10~ 100 Dimmable with most dimmers.
Heat Sink and aluminum board for low heat
operation of high power LED chip
Range of 3000k or 4000k color temp , 82 CRI
Produces 565~ 801 lumen output from Luminaire operating by 350mA connect.
Use 1.2 W High Power LED
LED Power Supply Driver
Class 2 constant current LED Driver 350mA
For 120v, 50-60Hz
Driver installed on junction box door for easy access from below ceiling
Quick Connect PUSH TERMINAL
Three QUICK CONNECTORS for fast easy wiring.
