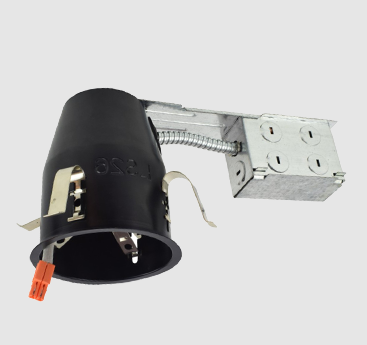

4''LED Recessed Can Remodel IC/Air Tight LS-4R-IC-AT

SPECIFICATIONS:

Sizes:
Size 1 4 3/4” x 12 3/4"
Size 2 6 1/4” x 4”

Housing:

Single wall Painted Steel Housing gasket for IC / Air Tight in Insulated Ceiling
Housing can be adjusted for ceiling thickness up to 1-3/3/8”

Junction Box:

Listed For Trough Branch circuit wiring
Contains seven 7/8” knockouts and four Romex playouts with romex cable clamp Ground wire provided on J-Box.

LED Engine:

10~ 100 Dimmable with most dimmers.
Heat Sink and aluminum board for low heat
operation of high power LED chip
Range of 3000k or 4000k color temp , 82 CRI
Produces 565~ 801 lumen output from Luminaire operating by 350mA connect.
Use 1.2 W High Power LED

LED Power Supply Driver
Class 2 constant current LED Driver 350mA
For 120v, 50-60Hz
Driver installed on junction box door for easy access from below ceiling

Quick Connect PUSH TERMINAL
Three QUICK CONNECTORS for fast easy wiring.
