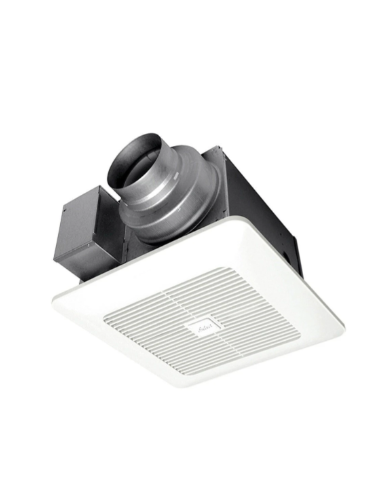

Panasonic FV-0511VKS2

FV-0511VKS2 Product Description

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements that will provide greater value to our customers. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible and easy installation. Other enhancements include a new elegant grille design, an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features:

Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Pick-A-Flow® Airflow Selector; features a built-in speed selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
New! Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy
New! Elegant grille design complements the aesthetics of any room

Specifications:

Model number:FV-0511VKS2
Fan Type:Fan only
Advanced Features:Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay
Air Volume Supply (CFM):@0.1= 30,40,50,60,70,80,90,100,110 @0.25= 30,41,51,60,71,80,90,101,110 @0.375= 30,40,51,60,70,79,90,101,108
Noise (Sones):@0.1"SP (30,40,50,60,70,80,90,100,110 CFM) = <0.3 @0.25"SP(30,41,51,60,71,80,90,101,110 CFM) = 0.3, 0.3, 0.4, 0.4, 0.5, 0.5, 0.6, 0.7, 0.8
Power Consumption (Watts):30 CFM=2.4, 40=2.7, 50=3.1, 60=3.7, 70=4.3, 80=5.1, 90=6.5, 100=7.9, 110=9.9
Energy Efficiency (CFM/Watt):30 CFM=12.6, 40=14.8, 50=16.2, 60=16.3, 70=16.7, 80=15.7, 90=13.9, 100=12.7, 110=11.1
Power Rating (V/Hz):120/60
Motor Type (AC/DC):DC (ECM)
ENERGY STAR® Certified:Yes
Other Approved Codes and Standards:ASHRAE 62.2, LEED, CA T-24, CALGreen
Duct Diameter:4 inch
Mounting Options:Horizontal
Ventilation Design Approach:Bathroom Exhaust Fan
Warranty:6 years ECM Motor, 3 years all other parts
Industry:Residential, Light Commercial
Radiation Damper Available:Yes, PC-RD05C5
UL Listed for Tub/Shower Enclosure when GFCI Protected:Yes
Master Carton Gross Weight (lbs.):11.90 (1 unit)
Master Carton Dimensions (HxWxD):11.85 x 14.17 x 16.73
