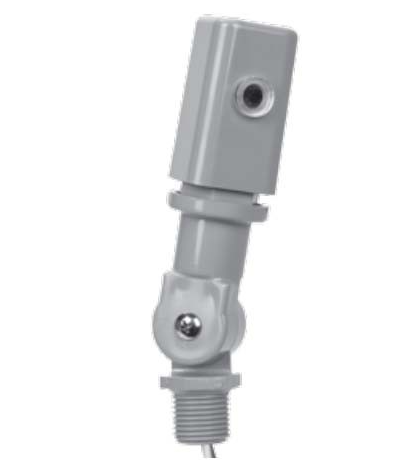

Intermatic EK4236S

EK4236S Product Description

The EK4236S and EK4736S are electronic photo controls that come with a swivel arm for easy reorientation of the photo control after installation. They fit standard ½" knockouts in standard outlet boxes and wall pack lighting fixtures.

Specifications:

Stock Code EK4236S
Brand Intermatic
Family Fix Mount Electronic Photo Controls
UPC 078275146303
Voltage (V) 120-277 V
Length (in) 1.24
Width (in) 1.24
Height (in) 5.64
Watts Ballast Magnetic Ballast 1800 Watts; LED / Electronic Ballast 6 Amps
Watts Tungsten 1000 Watts
Switch Type: Instant turn ON light level 1.5 fc; OFF light level: 2.25 fc; Turn OFF to ON ratio 1.5:1 with 2-5 second delay
Mounting Stem and Swivel Mounting, 1/2 in. - 14 Threaded Swivel
Wire Gauge 18 AWG
Start Temp. (Min) -40 Deg. F
Start Temp. (Max) 158 Deg. F
UL Listed CSA and UL Listed, CA TITLE 20 Listed
Warranty Limited 8-year manufacturer's warranty
