Westgate G2 and G4 Bollards Explained: A Complete Guide

• Westgate G2 bollards are certified crash-rated barriers designed for commercial and urban sites requiring moderate to high hostile vehicle mitigation.
• Westgate G4 bollards are high-security crash-rated systems engineered for critical infrastructure exposed to severe vehicle impact threats.
• Westgate crash-rated bollards achieve certified impact resistance only when installed with properly engineered reinforced concrete foundations matching tested specifications.

Hostile Vehicle Mitigation is no longer a niche discipline within perimeter security. It has become a central component of risk management for commercial developers, infrastructure operators, architects, and security consultants. Vehicle-borne threats have reshaped how public-facing environments are designed, forcing security professionals to integrate crash-rated barrier systems into spaces that must remain accessible, visually cohesive, and operationally flexible. Bollards are now engineered structural elements that carry serious performance obligations rather than decorative traffic-control devices.

Within this context, Westgate’s G2 and G4 bollard systems occupy two distinct positions in the HVM ecosystem. While both are certified solutions designed for perimeter protection, they are engineered for different threat profiles, foundation conditions, and operational environments. Understanding the difference requires a deep look at impact dynamics, foundation engineering, survivability under collision loading, and lifecycle implications. This guide examines both systems in detail, not as catalog products, but as engineered security infrastructure components deployed within real-world conditions.

Understanding Hostile Vehicle Mitigation

The Contemporary Vehicle Threat Model

Vehicle threats now span a broad spectrum, from opportunistic ram raids to deliberate high-speed attacks involving heavy commercial platforms. Modern risk modeling must account for mass, velocity, approach geometry, and potential stand-off distances. Passenger vehicles, delivery trucks, and large commercial vehicles each generate dramatically different kinetic energy profiles. The exponential relationship between speed and impact force means that relatively small increases in velocity can create disproportionate loading conditions on perimeter barriers.

Security planning has therefore shifted toward performance-based mitigation strategies. Instead of relying on visual deterrence or nominal obstruction, certified systems are specified to resist defined impact scenarios. This requires engineers to evaluate:

• Vehicle mass assumptions
• Achievable approach speeds
• Surface conditions and gradients
• Required penetration limits
• Structural survivability after impact

Crash-rated bollards are selected within this framework, not as generic barriers, but as components validated against specific test conditions.

What Makes a Bollard Crash-Rated

A crash-rated bollard is not simply a steel post embedded in concrete. It is an engineered assembly composed of structural steel, reinforcement systems, anchoring geometry, and a foundation designed to distribute impact loads into the surrounding ground. Certification standards such as PAS 68, IWA 14-1, and ASTM F2656 define how these systems are tested against vehicles of specified mass traveling at controlled speeds.

Performance is evaluated based on:

• Vehicle classification
• Impact velocity
• Penetration distance
• Barrier integrity after collision

The visible bollard above grade represents only a portion of the total structural system. In most certified installations, the below-grade reinforced concrete assembly is equally important. Failure to follow certified installation geometry can compromise performance regardless of product rating.

Westgate Security Bollard Ecosystem

Product Categories and Deployment Environments

Westgate’s portfolio spans fixed bollards, removable systems, illuminated architectural assemblies, and multifunctional units that integrate lighting or power access. This modular approach allows perimeter systems to serve more than one function within a development.

Deployment environments typically include:

• Commercial retail and mixed-use properties
• Transportation hubs
• Public plazas and pedestrian corridors
• Government and municipal facilities
• Critical infrastructure sites

Within this portfolio, the G2 and G4 systems represent two different tiers of hostile vehicle mitigation capability.

Positioning of the G2 and G4 Systems

The G2 system is engineered for moderate to high-security commercial and urban applications where certified impact resistance must coexist with architectural integration and manageable civil works. The G4 system is designed for higher-threat environments where severe vehicle impact scenarios must be addressed through deeper foundations and more aggressive structural reinforcement.

The distinction is not simply strength. It is about alignment between:

• Threat severity
• Installation feasibility
• Utility constraints
• Lifecycle expectations
• Operational continuity

Understanding these factors prevents over-specification or under-protection.

Engineering Principles Behind Crash-Rated Bollards

Impact Energy and Dynamic Loading

When a vehicle strikes a bollard, kinetic energy transfers into the barrier assembly within milliseconds. The system must resist bending moments, shear forces, torsional stress, and foundation displacement simultaneously. The objective is controlled energy dissipation without catastrophic failure.

Structural behavior depends on:

• Steel yield strength
• Reinforcement continuity
• Anchor configuration
• Concrete compressive capacity
• Soil bearing characteristics

Vehicle construction also influences performance. Heavy trucks behave differently than passenger vehicles due to axle geometry and rigidity. Effective barrier engineering accounts for this interaction.

Foundation Load Transfer

Load transfer is the defining factor in crash-rated performance. Even heavily reinforced steel shafts will fail if the foundation cannot distribute forces into surrounding soil. Reinforcement cages, anchor plates, and concrete mass must work together to prevent pullout, rotation, or progressive structural failure.

In practical deployment, foundation engineering often dictates system selection more than visible product differences. Urban installations frequently face:

• Underground utility congestion
• Slab-on-grade limitations
• Suspended structural slabs
• Groundwater intrusion
• Limited excavation depth

These constraints influence whether a moderate-security or high-security system is appropriate.

Westgate G2 Bollards: Technical Analysis

Design Objectives

The Westgate G2 system is intended for applications where certified hostile vehicle mitigation is required without the extensive excavation and deep foundation demands associated with high-security infrastructure. It is commonly positioned for commercial developments, pedestrian corridors, hospitality properties, and mixed-use environments where perimeter protection must be integrated into an active streetscape.

The design approach emphasizes a balance between impact resistance and architectural integration, consistent with other commercial exterior lighting and infrastructure solutions. In many deployments, bollards are expected to contribute to site lighting and visual continuity rather than function solely as security hardware. For commercial walkways, plazas, hospitality entrances, and mixed-use pedestrian zones, the Westgate BOL-G2-103F-MCTP-BK G2 Bollard Head Model 103F should be presented as a lighting component within the broader G2 system. The distributor product page specifies a black-finish bollard head with selectable wattage options of 24W, 19W, or 14W and multi-color-temperature capability. This selectable output and CCT flexibility allows designers to tune illumination levels and visual warmth to site requirements while maintaining consistency with surrounding architectural lighting.

Framing the product in this manner highlights its practical selection attributes, including wattage adjustability and color temperature flexibility, without overstating security performance. It positions the bollard head as a coordinated lighting element within a vehicle mitigation platform rather than as a standalone security claim.

Structural Characteristics

The G2 system utilizes reinforced steel construction engineered for controlled deformation under impact loading. Steel wall thickness, weld continuity, and anchoring geometry are coordinated to manage defined threat levels while avoiding the deep foundation requirements associated with higher-security installations. This balance allows vehicle mitigation capability to be incorporated into commercial sites without excessive excavation or structural disruption.

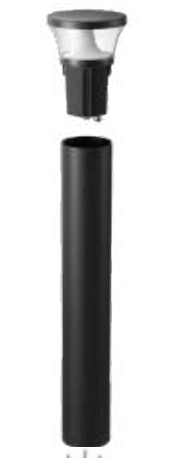

To clarify system assembly, the Westgate BOL-G2-SHAFT-31-BK G2 31-Inch Bollard Shaft should be referenced alongside the G2 head component rather than implied as part of a single preassembled unit. The distributor product page identifies this model as a 31-inch black-finish shaft designed for compatibility with G2 bollard heads. Presenting the shaft and head as coordinated but separate components helps contractors understand the modular nature of the platform and simplifies material takeoff and field assembly.

In commercial environments where access interruption can affect operations, modular construction supports localized servicing or component replacement without removing the entire bollard assembly. Separating shaft and head components reduces disruption during maintenance and allows damaged elements to be replaced independently while preserving the embedded foundation structure.

Installation Requirements

G2 installations typically involve shallower foundations than higher-tier systems, reducing excavation volume and simplifying coordination with underground utilities. This makes the system well suited for retrofit urban projects.

However, installation must still follow certified geometry precisely. Reinforcement placement, concrete quality, anchor alignment, and curing procedures directly affect impact performance. Professional oversight is essential to preserve certification integrity.

Appropriate Use Cases

The G2 system is commonly specified for:

• Retail frontage protection
• Pedestrian corridors
• Public gathering spaces
• Hospitality and mixed-use developments
• Transportation-adjacent commercial areas

In these environments, it provides meaningful certified protection while remaining compatible with architectural design objectives and constrained installation conditions.

Westgate G4 Bollards: Technical Analysis

Design Intent and Threat Alignment

The Westgate G4 system is engineered for environments where vehicle-borne threats exceed the envelope typically associated with commercial urban deployments. This includes critical infrastructure, government facilities, transportation hubs, data centers, utilities, and secure logistics environments where the consequences of perimeter breach are operationally severe. In these scenarios, barrier systems must address higher vehicle masses, elevated approach speeds, and stricter penetration limits.

The G4 category is not merely an incremental upgrade over moderate-security bollards. It represents a structural escalation designed around extreme dynamic loading conditions. Foundation integration, reinforcement density, anchoring geometry, and steel core strength all increase to support higher kinetic energy transfer. The system is specified when risk modeling justifies a more aggressive structural response and deeper foundation architecture.

Structural and Mechanical Architecture

The G4 system incorporates reinforced steel shafts with substantial below-grade anchoring assemblies intended to transfer impact forces into deep reinforced concrete foundations. Unlike moderate-security installations that prioritize flexible placement and adaptable layouts, the G4 configuration emphasizes structural rigidity and controlled force redistribution under high-impact conditions. As a result, foundation depth, embedment geometry, reinforcement coordination, and concrete mass become integral to system performance and should be coordinated carefully with civil and structural documentation during the design phase.

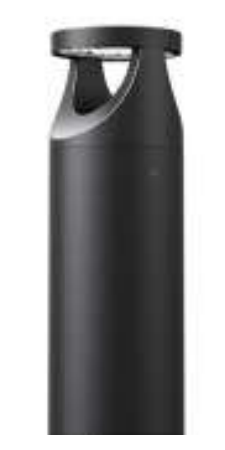

Architectural integration remains important even within hardened perimeter applications, particularly on campus, transportation, and infrastructure projects where security elements are expected to contribute to pedestrian illumination and overall site cohesion. Within this context, the Westgate BOL-G4-201-MCTP-BK G4 Modular Bollard System Head functions as an illuminated modular bollard head with selectable color-temperature capability. According to the linked BuyRite product page, the fixture is listed with 110 lm/W efficacy, indicating an emphasis on energy-efficient perimeter lighting within the modular bollard system. By incorporating illumination directly into the bollard assembly, the system can help reduce dependence on separate pole-mounted fixtures while supporting coordinated pedestrian circulation and visual continuity throughout secured exterior environments.

This component should be characterized strictly as a lighting head within the broader G4 modular bollard platform. Any references to crash resistance, vehicle mitigation capability, or certified impact performance should only be made when supported by documented third-party testing or manufacturer certification rather than inferred from the product family designation alone.

Certified Performance and Survivability

G4 systems are typically tested against heavier vehicle classes at higher impact velocities, reflecting their deployment in high-consequence environments. For security professionals, interpreting certification requires examining:

• Tested vehicle weight
• Impact speed
• Penetration distance achieved
• Structural condition after collision

The difference between stopping a light passenger vehicle and arresting a loaded commercial platform is substantial in structural terms. Higher energy impacts produce more intense bending moments and shear forces at the foundation interface.

Post-impact survivability is equally important. After severe collisions, hidden structural damage may exist even if the above-grade shaft appears intact. Foundation cracking, reinforcement displacement, and anchor deformation require engineering inspection before reactivation. G4 installations therefore demand robust post-impact evaluation protocols.

Civil Engineering and Foundation Demands

The defining characteristic of the G4 system is the scale of civil works required to support certified performance. Deep excavation, reinforced concrete assemblies, and dense reinforcement cages form the structural backbone of the barrier.

These requirements introduce practical considerations:

• Utility relocation may be unavoidable
• Slab reinforcement may be required in retrofit environments
• Drainage redesign may be necessary
• Construction sequencing must maintain perimeter integrity

In dense urban sites, enabling works often represent a significant portion of project cost. Early collaboration between structural engineers, geotechnical consultants, and security planners is essential to align threat assumptions with feasible construction geometry.

Direct Comparison: G2 vs G4

Structural Resistance and Threat Envelope

The G2 system addresses moderate to high-security commercial environments. The G4 addresses severe impact scenarios typical of critical infrastructure protection. This distinction influences:

• Steel reinforcement density
• Anchor configuration
• Foundation depth
• Concrete volume
• Post-impact survivability expectations

The systems should not be viewed as interchangeable. Specifying G4 where G2 suffices may impose unnecessary excavation and cost. Specifying G2 where G4 is required may leave unacceptable exposure.

Installation Complexity

From an installation standpoint, G2 offers greater adaptability in constrained urban environments. Shallower foundations reduce disruption and simplify coordination with underground services.

G4 installations involve:

• Greater excavation depth
• Increased reinforcement complexity
• Higher concrete mass
• Extended curing timelines
• More intensive inspection protocols

This does not make one system better than the other. It reinforces that system selection must align with both threat modeling and site conditions.

Lifecycle Considerations

Lifecycle management differs between the systems. G2 deployments in commercial environments often prioritize corrosion management, modular replacement, and visual integration. The modular design supports efficient servicing and reduced downtime.

G4 deployments demand more rigorous inspection schedules. Structural fatigue monitoring, foundation integrity checks, and post-impact assessments are more intensive due to higher performance expectations. Total cost of ownership analysis must therefore include maintenance complexity and potential restoration planning.

Site Planning and Infrastructure Coordination

Utility Mapping and Subsurface Constraints

Underground utility congestion is one of the most significant variables in bollard deployment. Electrical conduits, telecom ducts, water lines, gas services, and drainage networks frequently conflict with foundation geometry.

Best practice includes:

• Ground penetrating radar surveys
• Coordinated utility mapping
• Early-stage structural analysis
• Contingency planning for relocation

Failure to address subsurface conditions early can result in redesign, cost escalation, and schedule disruption.

Soil Conditions and Load Transfer

Soil bearing capacity directly affects barrier performance. Weak or inconsistent subgrade reduces load transfer efficiency and may require foundation enlargement or additional reinforcement.

Geotechnical analysis should evaluate:

• Bearing capacity
• Soil classification
• Groundwater levels
• Frost conditions
• Long-term settlement risk

These variables influence both G2 and G4 installations, though the impact is more pronounced in deeper G4 foundations.

Drainage and Durability

Drainage integration is often underestimated in perimeter protection projects. Water intrusion accelerates corrosion and may compromise concrete durability.

Drainage strategy should include:

• Proper runoff channeling
• Waterproofing measures
• Corrosion-resistant finishes
• Maintenance access planning

Attention to these details preserves long-term performance and reduces lifecycle costs.

Integration With Wider Security Infrastructure

Access Control Integration

Crash-rated bollards operate within layered security strategies. Integration with ANPR systems, RFID access controls, monitored gates, and centralized command platforms allows secure vehicle management without compromising perimeter strength.

The barrier line must be coordinated with:

• Controlled entry geometry
• Vehicle stacking distances
• Emergency override procedures
• Redundant power systems

Effective integration prevents operational bottlenecks while preserving certified impact resistance.

Utility Access Within Secure Perimeters

Modern site design frequently requires distributed electrical access within secured perimeter environments. Incorporating convenience power directly into bollard infrastructure can reduce reliance on separate pedestal enclosures, minimize visual clutter across hardscape areas, and simplify conduit coordination within exterior site layouts. This integrated approach supports cleaner perimeter organization while maintaining operational flexibility for maintenance, temporary equipment, and event-related power needs.

Within this framework, the Westgate BOL-G4-SHAFT-30-GFCI-BK G4 30-Inch Bollard Shaft with GFCI Outlet Compartment functions as a utility-oriented component within the broader G4 modular bollard system. According to the linked BuyRite product page, the assembly is configured as a 30-inch black bollard shaft incorporating an integrated GFCI outlet compartment, allowing lighting and convenience power distribution to be consolidated within a single perimeter element. This type of configuration is well suited to transportation facilities, event venues, commercial plazas, mixed-use developments, and other exterior environments where accessible perimeter power may be required for temporary installations, maintenance equipment, or seasonal operations.

The outlet-equipped shaft should be described specifically as a functional utility and lighting support component within the modular G4 platform rather than as a security-rated assembly unless certified impact documentation is provided separately. Coordination of branch circuitry, electrical loading, weather protection, and GFCI protection remains necessary to maintain compliance with applicable electrical codes while preserving the continuity and appearance of the perimeter design.

Architectural Lighting Strategy

Bollard lighting should be specified as part of a coordinated exterior and transition-zone lighting strategy similar to broader commercial site and parking-area illumination systems. Within this approach, G2 and G4 bollard heads can establish pedestrian pathways, define property boundaries, and reinforce entry thresholds, while adjacent wall-mounted luminaires extend the same architectural language into interior transition spaces. Coordinating perimeter lighting with entry and circulation fixtures helps strengthen visual continuity and improve spatial organization across the building envelope.

For interior transition areas such as entrances, waiting zones, and building-adjacent circulation corridors, the Westgate CWS-48-MCTP LED Commercial Waiting Room Indoor Wall Sconce can function as a complementary architectural lighting element. The linked BuyRite product page lists multiple wattage options together with selectable CCT3 color-temperature capability and 85 lm/W efficacy, positioning the fixture as an indoor wall-mounted luminaire intended for integration into broader architectural lighting schemes. Rather than serving as a perimeter-security element, the fixture is more appropriately specified as part of a coordinated interior transition lighting package.

By coordinating bollard systems with interior wall sconces under a unified lighting strategy, projects can improve nighttime visibility, strengthen wayfinding clarity, and maintain more consistent visual transitions between exterior and interior environments. In contemporary commercial developments, lighting often serves both operational and architectural purposes simultaneously, supporting security objectives while also contributing to spatial definition and occupant experience throughout exterior and interior circulation zones.

This integration enhances:

• Wayfinding
• Nighttime visibility
• Perceived safety
• Architectural continuity

Security and architectural objectives are no longer separate considerations. They must function together.

Installation Methodology

Pre-Construction Planning

Comprehensive planning should precede excavation. This includes:

• Utility surveys
• Structural slab assessment
• Geotechnical evaluation
• Traffic and pedestrian management planning
• Temporary perimeter security strategy

Phased installation may be necessary to maintain operational continuity in active facilities.

Construction Quality Control

During installation, adherence to certified geometry is critical. Quality control should verify:

• Reinforcement placement
• Anchor alignment
• Concrete specification compliance
• Shaft alignment tolerance
• Curing timelines

Deviation from certified installation procedures can compromise crash performance regardless of product rating.

Inspection, Maintenance, and Post-Impact Protocols

Routine Inspection

Routine inspection programs should assess:

• Weld integrity
• Corrosion protection
• Foundation settlement
• Lighting components
• Electrical integration

Inspection frequency should reflect environmental exposure and threat environment.

Post-Impact Assessment

After any significant collision, detailed engineering inspection is mandatory. Hidden damage may include:

• Foundation cracking
• Anchor displacement
• Reinforcement fatigue
• Shaft deformation

Critical infrastructure facilities should maintain documented post-impact assessment procedures and replacement planning.

Specification and Procurement Guidance

Performance-based specification remains the most effective procurement approach. Security consultants should define required impact resistance based on threat modeling rather than relying solely on dimensional characteristics.

Specification should evaluate:

• Certified crash ratings
• Installation requirements
• Foundation constraints
• Maintenance obligations
• Lifecycle cost implications

Avoid common mistakes such as specifying decorative bollards for hostile vehicle mitigation or neglecting foundation engineering during early design stages.

Final Thoughts

Westgate G2 and G4 bollard components should be presented as modular architectural bollard systems that can support perimeter lighting, pedestrian guidance, and site utility access. Any hostile-vehicle-mitigation language should be conditional on verified crash-rating documentation, tested foundation requirements, and project-specific engineering review. The G2 provides balanced certified protection suitable for commercial and urban environments where installation flexibility and architectural integration are critical. The G4 delivers elevated structural resistance for high-consequence infrastructure requiring deeper foundations and more aggressive reinforcement.

Effective system selection requires realistic threat modeling, detailed site analysis, and coordinated engineering execution. When specified and installed correctly, both systems provide robust perimeter protection within their intended operational envelopes. The decision between them is not about choosing the strongest option available. It is about aligning structural performance with risk profile, site constraints, and long-term operational strategy.
