- Lighting controls must include a documented priority chain so manual dimming, occupancy sensing, schedules, daylight harvesting, and BMS commands never conflict.
- 0–10V dimming performance requires verified driver compatibility, correct polarity, controlled voltage drop, stable low-end trim, and defined relay-assisted off rules.
- Maintainable installations require room-level segmentation, consistent device naming/bindings, saved configuration exports, and phased commissioning with calibration, trending, and load-mapping verification.
This article is written for practitioners who already design, install, commission, and maintain commercial lighting control systems. The focus is on architecture, load and driver interfaces, sequences of operation, networking and integration boundaries, documentation rigor, commissioning methodology, and long-term serviceability. Elementary explanations are intentionally skipped in favor of the engineering details that determine whether a Wattstopper deployment behaves predictably at scale.
Wattstopper’s strength in professional projects is less about any single device and more about assembling an ecosystem of sensors, interfaces, controllers, gateways, and software that implements a documented control intent. The highest-performing installations treat lighting controls as an engineered system with clear requirements, repeatable templates, disciplined submittal review, installation quality controls, and objective functional testing. The sections below follow that delivery flow so design decisions carry through into commissioning and operations without ambiguity.
Practitioner Executive Summary
Where Wattstopper commonly fits well
Wattstopper controls are often selected for projects that require reliable room-level patterns, repeatability across many similar spaces, and commissioning workflows that can be standardized. The “room as a unit of control” approach maps well to how buildings are occupied and supported, especially in offices, education, and mixed commercial environments with frequent tenant churn. When segmentation is designed intentionally, local behavior remains stable even if building-level coordination or upstream integrations degrade. That resilience is frequently the difference between a system that quietly performs and one that becomes a constant source of calls.
Another common driver is the ability to deploy both wired and wireless approaches while maintaining consistent control intent across space types. This is useful in mixed-scope projects that blend new construction with retrofit areas where ceiling access or conduit pathways are constrained. It is also helpful where space plans change often, since control zoning can be adjusted without extensive rewiring if the architecture and documentation support controlled change. In professional portfolios, that adaptability is valuable only when it is paired with a repeatable method for binding, naming, verifying, and backing up configurations.
What usually determines success or failure
Most “controls problems” originate from incomplete requirements rather than defective hardware. If priority rules between manual control, occupancy logic, schedules, and BMS commands are not explicit, the installed system will behave inconsistently even when every device functions correctly. Inconsistent behavior shows up as nuisance offs, unexpected re-illumination, override battles, and dimming behavior that occupants interpret as flicker or instability. These issues rarely resolve through ad hoc parameter tweaks; they resolve when the control narrative is made testable and when the physical-to-logical mapping is verified end to end.
Commissioning depth is the second determinant, especially for daylight-responsive control and for any wireless layer. Daylight harvesting is a control loop that depends on zoning, sensor placement, driver low-end stability, and calibration under representative conditions. Wireless success depends on RF validation, gateway placement, and documented replacement workflows to prevent performance drift after occupancy. When narrative, documentation, installation checks, and commissioning are aligned, Wattstopper systems can remain stable for years with a predictable service load.
Wattstopper Controls Ecosystem Map
Control tiers and functional roles
Wattstopper deployments are best understood in tiers defined by responsibilities, not by part numbers. The room tier includes sensors, switches, dimming interfaces, and room controllers responsible for executing local sequences such as occupancy control, manual overrides, scenes, and daylight response. The network tier includes gateways or segment controllers that coordinate groups of rooms, handle scheduling where required, aggregate data, and present the system to software and integration interfaces. The enterprise tier includes software and tooling for configuration management, reporting, user access control, and integration workflows.
This tiered model helps align stakeholders. Electrical contractors tend to focus on room-tier installation and wiring integrity, while owners and IT focus on network and enterprise tiers where authentication, segmentation, and remote access are governed. Commissioning spans tiers, validating that local behaviors match the sequences while building-level functions and integrations behave as documented. Clear tier definitions also prevent overbuilding by keeping enterprise features from creeping into rooms that only need deterministic local behavior, and they prevent underbuilding by ensuring enterprise requirements are met with proper network planning.
Boundaries with adjacent systems
Lighting controls are frequently expected to provide occupancy state to HVAC, support demand response, coordinate with AV systems for scenes, and report energy-related metrics. Those goals are achievable only when authority boundaries and data semantics are defined. A common failure mode occurs when multiple systems assert scheduling authority, which produces lights that appear to turn off “randomly” because schedules, sweeps, and overrides are competing. Another failure mode occurs when an occupancy point is exported without defining whether it represents detection, effective occupancy after debounce, or a commanded state influenced by a schedule.
A clean boundary definition answers operational questions directly.
- Which system is the authoritative scheduler for lighting zones, and how are after-hours enablement and overrides handled?
- What functions remain local if a gateway fails, and which functions are building-level only?
- What happens if the BMS is down or the enterprise network is unavailable, and how should the lighting system degrade?
These boundary statements should live in the basis of design, be reflected in the point list and drawings, and be validated during functional testing so the final system is supportable without ambiguity.
System Architectures and Topologies
Room-centric distributed control and panel-based approaches
Room-centric distributed control is well-suited to buildings with many discrete spaces where resilient local behavior is a priority. Each room implements its own occupancy logic, manual control, daylight response, and scene behavior, which confines failures to the smallest practical area. Troubleshooting becomes more intuitive because symptoms map directly to a physical space and a small set of devices rather than to a centralized relay abstraction. This approach also enables standardized templates, where representative rooms can be validated and then scaled across a floor with consistent behavior.
Panel-based relay control can be appropriate where zones are large and static, where electrical standards prefer centralized panels as maintainable assets, or where facility philosophies emphasize relay mapping and centralized service access. The trade is increased dependency on correct load mapping, consistent labeling, and disciplined documentation updates after circuit changes. Panel-based architectures also raise the consequence of field wiring errors because a single mapping mistake can affect many luminaires across multiple rooms. When panel-based approaches are selected, verification of relay-to-load mapping and dimming group behavior becomes a mandatory precondition for programming and commissioning.
Hybrid architectures and wired versus wireless strategy
Hybrid designs are common and often defensible, especially where centralized relays are used for certain loads while room controllers provide granular dimming, sensing, and scene logic. The key requirement is to avoid overlapping authority where both a room controller and an upstream relay can influence the same load without a defined sequence for power loss, restoration, and sweep events. If upstream relays can cut power to drivers, restoration behavior must be engineered so drivers do not reset to unexpected defaults that violate partial-on requirements or occupant expectations. Hybrid systems should be documented with explicit power path and control path diagrams, and edge cases should be validated during commissioning.
Wired versus wireless selection should be treated as an operational risk trade, not only a labor cost comparison. Wired systems are typically more deterministic and less sensitive to environmental changes, and they avoid battery maintenance obligations. Wireless can be highly effective in retrofit conditions and in churn-heavy tenant environments where flexibility outweighs maintenance overhead. Wireless deployments require RF validation and documented device replacement workflows so a technician can restore bindings without guesswork. Mixed strategies often perform best when wired is used for stable, high-criticality areas and wireless is used where adaptability and access constraints dominate.
DLM Architecture in Detail
Room as a programmable subsystem
In DLM-centered designs, the practical advantage is the ability to treat each room as a coherent subsystem that can be discovered, bound, configured, and validated with repeatable methods. That changes the project from a collection of point-to-point sensor inputs into a structured set of room control units with standard behaviors and clear boundaries. When room templates are defined by space type, sequences can be applied consistently, which improves occupant predictability and reduces bespoke programming that becomes unmaintainable. This template-driven approach also reduces commissioning effort because verification becomes a structured comparison between actual behavior and documented intent.
Room-based logic supports clarity in failure containment and documentation. A room sequence can define how occupancy, manual control, daylight response, scenes, and schedules interact within that room, while exceptions like shared zones or partitioned spaces can be explicitly modeled. When local behavior is required to remain functional even if network coordination is degraded, operational resilience increases. Service workflows improve because a fault can be investigated at the room boundary before escalating to gateway or integration layers, which reduces the tendency to “fix” issues with global settings that harm other spaces.
Scaling and segmentation
Scaling is fundamentally a segmentation problem rather than a raw device count problem. Segmentation should align with how buildings are operated, such as tenant boundaries, floors, wings, or departments, so troubleshooting scope and change management match organizational realities. This segmentation influences gateway placement, network planning, access control requirements, and documentation structure. When segmentation matches operations, commissioning, and maintenance become predictable because issues can be scoped without impacting unrelated areas.
Gateway placement and network planning must consider IT requirements and physical serviceability. Gateways that touch enterprise networks create VLAN, firewall, authentication, and patching considerations that should be addressed during design rather than negotiated during turnover. Gateways also require reliable power and accessible mounting locations for replacement and troubleshooting. Documentation should state expected degraded modes, describing what happens when a gateway is offline and which functions remain local. That reduces escalation time during outages and keeps local behavior stable while building-level coordination is restored.
Loads, Drivers, and Dimming Interfaces
Driver behavior and dimming stability
Lighting control performance is frequently decided at the driver interface rather than at the sensor. If the driver's low-end stability is poor, or if dimming curves behave unpredictably, occupants experience stepping, shimmer, or flicker and attribute the issue to “controls.” For 0–10 V systems, voltage drop, polarity discipline, shared control wiring practices, and grounding can materially affect behavior in the field. Digital driver protocols add their own risks, such as addressing errors and group membership mismatches, which show up as fixtures that do not respond consistently to scenes or daylight loops.
Professional designs make explicit decisions about dim-to-off versus relay-assisted off, and they validate low-end trim in the field rather than relying on catalog claims. Multi-channel luminaires introduce additional nuance because control intent may not be uniform across channels. Keeping uplight higher for comfort while harvesting daylight more aggressively on downlight can improve space quality, but only if the narrative defines it and the wiring and configuration support separate channels. If the narrative stays generic, integrators often default to proportional dimming across channels, which can underperform both comfort and energy goals.
Integrating field-proven device patterns

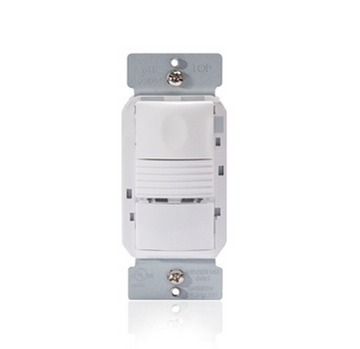

Certain control devices become recurring specification standards because they consistently address common interface and control requirements. The Wattstopper PW-101D-W PIR Dimmable Wall Switch Sensor, Universal 120V, White is frequently selected for applications where occupancy sensing, local user control, and dimming functionality must be integrated into a single wall-mounted device. The BuyRite Electric product listing references PIR sensing, universal 120V operation, and integrated dimming capability, making the device appropriate for private offices, small conference rooms, and other enclosed spaces where a dedicated ceiling sensor may not be justified. By combining sensing and dimming within a single control point, the device simplifies user interaction while reducing the number of wall devices required. Design review should nevertheless evaluate dimming stability, minimum trim settings, and the relationship between manual adjustments and occupancy logic to ensure manual operation does not conflict with code-mandated automatic shutoff functions.

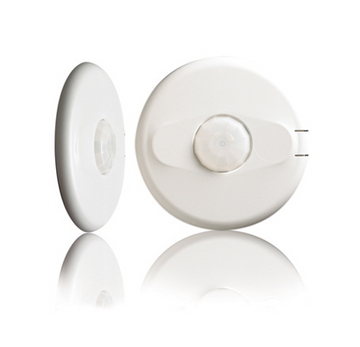

Where ceiling-mounted sensing provides a more favorable detection geometry, the Wattstopper CI-300-1 PIR Low-Voltage Ceiling Occupancy Sensor, 24 VDC, 360°, up to 500 ft² Coverage offers a dedicated overhead sensing solution. Product information published by BuyRite Electric identifies 24 VDC operation, 360-degree coverage, and sensing coverage of up to 500 square feet. These characteristics make the sensor suitable for enclosed offices, conference rooms, and similar commercial environments where overhead placement can improve detection consistency. Because the device functions as a low-voltage sensing input, it is typically paired with a power pack or relay controller, allowing load switching to occur remotely and supporting centralized control strategies.
Even when widely specified devices are used, coverage design and commissioning remain critical to successful operation. Ceiling sensor placement should be coordinated with furniture layouts, workstation locations, and anticipated occupant positions. Field validation should confirm reliable detection under seated and low-motion conditions rather than relying solely on published coverage patterns. Proper coordination of device selection, installation details, and commissioning procedures helps ensure predictable occupancy-control performance throughout the life of the installation.
Control Narratives and Sequences of Operation
Writing sequences as testable specifications
Control narratives should be written as testable specifications with defined triggers, delays, thresholds, and priorities. Phrases like “lights turn on when occupied” should be replaced with explicit behaviors such as manual-on versus auto-on, partial-on percentage, which zones are affected, and the allowable timeout window. Priority rules should define how manual dimming interacts with daylight response, how scenes interact with occupancy, and how after-hours override interacts with sweeps. Fade times should be specified because they materially affect occupant perception and can turn a technically correct system into one that feels broken.
Edge cases deserve explicit treatment because they are where complaints originate. Examples include manual-off while the space remains occupied, occupancy detection during a scheduled sweep, and conflicts between AV-triggered scene recall and demand response shedding. Without a documented priority chain, integrators make assumptions that vary from room to room, creating inconsistency that is difficult to troubleshoot. A professional approach defines these behaviors in the narrative, mirrors them in configuration templates, and validates them during acceptance testing. This produces predictability for occupants and maintainers while protecting code compliance and energy performance.
Standard sequence elements and parameterization
Scalable deployments build room sequences from standardized elements that are parameterized per space type. Common elements include occupancy-based control, daylight responsive dimming, manual raise-lower behavior, after-hours override, cleaning mode, scheduled sweeps, and partition combine-split logic. Standardization reduces programming variance and helps commissioning teams test templates rather than reinvent intent in every room. It also helps service teams restore intended behavior after device replacement or tenant reconfiguration. A template library becomes a real operational asset when it is tied to naming conventions and backed up with configuration exports.
Structured narrative fragments prevent ambiguity and align field implementation. For example, an after-hours override definition can specify trigger method, override duration, extension increments, sweep interaction, and whether manual-off is always honored. Daylight definitions can specify primary and secondary daylight zones, stable minimum dim levels, whether relay-assisted off is allowed, and calibration requirements with typical shade positions. These structured elements also improve submittal review because the integrator’s programming approach can be compared against explicit requirements. When the templates are consistent, occupant experience becomes consistent across the building, which reduces overrides and service calls.
Sensor Engineering: Selection, Placement, and Tuning
Selection based on space-specific failure modes
Sensor selection should be driven by expected failure modes in each space rather than by feature lists. PIR can perform well in private offices with a clear line of sight and predictable motion patterns, while dual technology may be justified in spaces with obstructions or low-motion tasks where false-offs are costly. Restrooms and enclosed rooms with partitions require careful evaluation of coverage geometry and acoustic conditions, especially when ultrasonic methods are involved. High-bay and warehouse environments are dominated by mounting height and aisle coverage considerations, so the selection becomes a geometry exercise as much as a device choice.
Owner tolerances should be documented because they affect both selection and tuning. Some organizations prioritize energy savings and accept shorter timeouts and more aggressive shutoffs, while others prioritize comfort and accept longer timeouts to minimize nuisance-offs. Misalignment between design assumptions and operational expectations is a frequent cause of dissatisfaction. A professional basis of design should define target timeout ranges and sensitivity approaches for key space types. That gives commissioning a clear objective and reduces ad hoc “make it stop” changes after occupancy.
Placement discipline and daylight sensor calibration
Sensor placement is where paper geometry meets real conditions. Ceiling height, beams, partitions, diffusers, and furniture layout all affect detection quality and the risk of false-offs. Placement too close to supply diffusers can degrade detection reliability, and placement near glass walls can unintentionally capture corridor traffic. Open offices often require overlapping coverage and validation at representative desks and corners rather than in a clear floor area. Enclosed rooms should be validated at least-favorable occupant positions, such as seated low-motion tasks, because those conditions reveal nuisance-off risk early.
Photosensor placement and calibration require even more discipline. Sensors exposed to direct sunlight can saturate and drive aggressive dimming that causes overrides and feature disablement. Sensors placed too far from daylight influence can do nothing, producing no savings and no visible benefit. Professional practice defines what the photosensor is intended to measure, positions it to represent that condition, and ensures access for calibration and maintenance. Commissioning should validate stability across representative times of day and with typical shade behavior so the control loop does not oscillate or behave counterintuitively.
Network, Gateways, and IT Requirements
Treat lighting control networks as IT-adjacent infrastructure
Once gateways and software connect lighting controls to IP networks, IT requirements become unavoidable. VLAN segmentation, firewall rules, authentication, remote access controls, and patching responsibilities should be addressed during design. Without planning, systems are either isolated to the point of reduced value or connected in ways that create unacceptable risk. A professional design package should define where the lighting network resides, what systems it communicates with, and how access is granted and audited. This supports cybersecurity and operational continuity without surprise negotiations at turnover.
Degraded-mode behavior should be explicitly required and validated. Local room behavior should remain functional under loss of enterprise connectivity, and building-level coordination should fail gracefully with predictable limitations. Gateway locations and dependencies should be documented in topology diagrams with identifiers that match physical labels and software names. Power sources and network switch dependencies should be recorded so outages can be triaged quickly. This level of documentation prevents control systems from becoming dependent on tribal knowledge and speeds restoration during IT events.
Configuration management and change control for lifecycle stability
Uncontrolled change is a major cause of control system drift. Device replacement, schedule edits, and template changes can diverge from basis-of-design intent if configurations are not treated as managed assets. Professional operations include configuration exports, versioned backups, documented change records, and clear roles for who may modify programming. Standardizing template libraries across a portfolio reduces service complexity and improves reliability because technicians and operators interact with consistent behavior. It also lowers training burden and reduces the chance that one building becomes an outlier that no one understands.
Firmware management deserves similar rigor. Updates can resolve legitimate issues, but they can also introduce behavioral changes that destabilize otherwise reliable sites. An operational policy should define who approves updates, how updates are tested, and how rollback is handled if necessary. This approach aligns lighting controls with modern facility management practices and reduces the likelihood that a rushed patch creates unintended side effects. A stable lighting control system is one whose configuration and firmware state are known, recoverable, and governed.
Integration with BMS and Third-Party Systems
Define integration goals and limit point scope to maintainable value
Integration should be driven by explicit operational goals rather than by exporting everything the system can provide. Typical goals include occupancy-based HVAC setback, schedule coordination, demand response command and feedback, and energy-related reporting. Each goal implies a specific set of points with defined semantics, update behavior, and latency expectations. If the scope grows into a point explosion, mapping becomes unmanageable, and data quality degrades, producing dashboards that look comprehensive but deliver little reliable operational value. Lean, well-defined point sets tend to be more maintainable and more trustworthy.
Point semantics matter as much as point names. Occupancy points should specify whether they represent sensor detection, effective occupancy after debounce, or a commanded state influenced by a schedule. Lighting level points should distinguish command versus feedback where available, and demand response should include both command and confirmation. Reporting points should clarify whether power and energy values are measured or inferred, and what assumptions are embedded in estimates. These definitions prevent downstream systems from misusing points and creating control conflicts that appear as random behavior to occupants.
Prevent authority conflicts and verify the interface end-to-end
Authority conflicts between BMS scheduling and lighting local logic are a frequent root cause of unpredictable outcomes. A professional integration design selects a single authoritative scheduler for lighting zones and then defines how other systems interact, whether by reading state, sending limited commands, or coordinating via defined modes. Manual control and local occupancy should retain defined priority rules so occupants can operate spaces predictably. If BMS commands are allowed, they should be constrained to specific functions like demand response or after-hours enable, with defined time windows and restoration behaviors. Clear authority rules reduce override battles and shorten troubleshooting cycles.
Integration verification should include normal commands, failover conditions, loss of communications, and restoration behavior. Demand response tests should validate shed levels, confirm that egress and task constraints are respected, and verify restoration ramps that minimize disruption. Loss of communications tests should confirm that lighting does not oscillate or latch into stale modes unexpectedly. Documentation should include point-to-point checkout records and trend validation where feasible. This transforms integration from an assumption into an engineered interface that can be supported over time.
Codes, Standards, and Acceptance Testing Alignment
Convert code obligations into control intent and measurable tests
Energy code requirements should drive control sequences and device selection rather than being appended late. Automatic shutoff, manual control accessibility, partial-on behavior, and daylight-responsive control requirements all map to specific programming parameters and device capabilities. A professional documentation package often benefits from a compliance mapping matrix that ties each space type to applicable requirements and identifies the sequence features that satisfy them. This makes compliance defensible and reduces late changes driven by inspections. It also improves consistency across spaces, which reduces occupant confusion and service burden.
Acceptance testing should be scripted to validate requirements objectively. Tests should specify initial conditions, actions, expected outcomes, and pass-fail thresholds such as time to shut off, permitted manual control behavior, and daylight response stability. The testing approach should recognize calibration realities, especially for daylight controls that require representative conditions. By aligning acceptance testing with documented sequences, projects avoid the common situation where generic defaults are accepted because no one has defined intended behavior. Proper alignment reduces disputes because the criteria are agreed upon before commissioning pressure peaks.
Produce documentation that serves inspections and operations
Documentation should satisfy inspection needs while remaining genuinely usable for operations. This typically means sequences written by space type with explicit parameters, device schedules tied to drawings, topology diagrams, and commissioning reports with results. Daylight calibration records and setpoints may be required to defend daylight compliance and to support future recalibration after space changes. Manual-on and partial-on behaviors should be explicitly described to avoid misinterpretation, especially where local control stations and occupancy logic interact. The goal is a package that can be used to understand and maintain the system years later without relying on the original project team.
Operational clarity should be treated as a deliverable, not an afterthought. Facilities teams should be able to locate a room, identify its devices, understand intended behavior across occupancy, schedules, overrides, and daylight conditions, and find the relevant configuration export or template reference. If documentation cannot support that workflow, troubleshooting becomes trial-and-error, and that gradually degrades consistency. A well-structured closeout package turns lighting controls into a maintainable system rather than a black box.
System Sizing and Bill of Materials Methodology
Derive BOM from space-type intent and repeatable patterns
Sizing should start with space-type intent and a template library rather than counting devices from plans alone. A structured method defines loads, zones, control method, sensor strategy, and user interface per space type, then multiplies those templates across the plan with adjustments for unique spaces. This reduces the risk of under-specified areas and avoids overbuilding complexity that later becomes a service burden. It also makes substitutions easier to evaluate because design intent is expressed as repeatable patterns, not as one-off room definitions. When projects scale to hundreds of rooms, this approach materially improves consistency and reduces commissioning time.
Gateway and segment sizing should be planned concurrently with room templates so the network architecture supports the operational model. Segment boundaries should align with tenants, floors, or operational zones, and gateway placement should support IT requirements and physical access. Spare capacity planning should be intentional, especially in tenant improvement environments where future expansion is likely. Overly tight designs force disruptive infrastructure changes later. A modest investment in headroom can lower the total cost of ownership by reducing future rework and service disruptions.
Zoning philosophy and practical capacity heuristics
Zoning should balance occupant usability, energy performance, and system complexity. Over-zoning increases device count, wiring, configuration effort, and the probability of miswires, while under-zoning forces overrides because control does not match how spaces are used. Zoning decisions should reflect daylight influence, functional use, and occupancy patterns. Open offices commonly benefit from separating perimeter daylight zones from interior zones, and sometimes separating circulation from work areas. Conference rooms and classrooms often require multi-zone control for presentation modes and flexible scenes, but zoning should remain understandable and testable.
Wireless sizing introduces lifecycle considerations that must be included in the BOM conversation. Battery devices require a maintenance plan, and device volume affects the feasibility of preventive maintenance workflows. Wired designs have serviceability constraints too, such as controller placement above accessible ceilings and clear labeling for future work. Capacity planning should include access constraints and maintenance workflows, not only technical maximums. Systems that meet device count limits but ignore service access often become bypassed systems.
Drawings and Documentation Package
Plans and risers that communicate intent and topology
Control plans should communicate control zones, daylight zones, device locations, and how devices map to loads and circuits. Symbols alone are insufficient if zones and circuit relationships are not explicit. Plans should label controlled groups in a way that ties directly to load schedules and panel schedules. Where multiple layers exist, such as room controllers plus relay panels, drawings should show the power path and control path clearly so field teams understand how upstream switching interacts with local dimming and sensing. This clarity reduces installation errors and simplifies commissioning by making mappings unambiguous.
Riser and topology diagrams are essential for networked systems. They should show segment boundaries, gateway locations, uplinks to network switches, and integration points to BMS or enterprise platforms. These diagrams enable IT review, commissioning planning, and service troubleshooting. Gateway identifiers should match physical labels and software names to create a consistent mapping from drawings to field to configuration. When that mapping is consistent, diagnosing a segment issue is straightforward. When it is not, troubleshooting becomes a slow discovery that increases downtime and service cost.
As-builts, configuration exports, and point list deliverables
Professional closeout packages should include as-built records and configuration exports as contractual deliverables. As-builts should include device identifiers, bindings, group memberships, scenes, schedules, and calibration setpoints so the system can be restored or modified without reverse engineering. Configuration exports should be archived in the owner’s document management system with clear naming and versioning. Without exports, future modifications become risky and time-consuming, especially after device replacements and renovations. Strong as-builts reduce dependence on the original integrator and support competitive service options.
BMS-integrated projects require a structured point list package. The point list should define point names, semantics, data types, units, update behaviors, and mapping to rooms or zones. Naming conventions should be consistent across lighting and BAS systems, and the point list should exist in both human-readable and import-friendly formats where feasible. Clear point lists reduce integration time, prevent misused points, and control scope creep. They also make future upgrades and recommissioning less painful because the system intent remains explicit.
Submittals, Review, and Substitution Control
Submittal review priorities for controls projects
Controls submittals should be reviewed with attention to compatibility and intent preservation rather than only completeness. High-risk areas include driver compatibility with dimming method, low-end stability, sensor appropriateness for mounting height and space geometry, and controller and gateway capacity relative to the topology. Review should validate that proposed sequences and template behaviors align with specified intent, including manual-on requirements, partial-on levels, and override logic. If these are unresolved before installation, they become expensive change orders and commissioning delays. A thorough review is also how professional teams protect the usability of daylight harvesting and scene behavior, which can be lost through subtle substitutions.
Coordination items should be reviewed explicitly because lighting controls sit at the intersection of multiple trades. Controls depend on ceilings, lighting circuiting, furniture systems, and emergency power distribution, so submittals should be evaluated against coordinated drawings rather than early assumptions. Labeling plans and as-built deliverables should be confirmed at the submittal stage because they impact installation workflow and long-term serviceability. When submittals include device schedules, topology diagrams, and programming approaches tied to documented sequences, the project is far more likely to reach acceptance without late rework.
Managing substitutions as architecture changes when necessary
Substitutions should be evaluated as equivalency across performance and lifecycle dimensions, not only as matching sensor types. Equivalency should address coverage and placement compatibility, commissioning workflow differences, topology impacts, gateway requirements, and integration capability. If an alternate solution changes where logic resides, changes how scheduling is applied, or changes the segmentation model, it is an architecture change. Architecture changes require revised drawings, revised sequences, and revised commissioning scripts rather than a simple product swap. Treating architectural substitutions casually produces mismatched documentation and inconsistent behavior.
A strong substitution control process requires updated documentation as part of approval. Updated device schedules, load schedules, risers, and sequences should reflect substituted equipment so the final package matches what is installed. This prevents the common failure where the building is installed one way and documented another way, which guarantees turnover confusion and long-term troubleshooting difficulty. When substitutions are formalized through documentation updates, the system remains coherent and maintainable, and the value of engineered templates and test procedures is preserved.
Installation Quality Controls
Wiring verification, labeling, and physical-to-logical mapping
Installation quality controls should be designed to reduce commissioning time and prevent latent miswires. Labeling should be consistent across ceiling devices, panels, controllers, and software names. Physical labels should map to drawings and configuration identifiers so technicians can locate and verify devices without guesswork. Wiring verification should include continuity and polarity checks for dimming control wiring, verification of correct relay load mapping, and confirmation that circuit changes are reflected in control zoning. These checks should occur before programming begins, so configuration is not built on incorrect assumptions.
Mapping discipline is critical because many control failures originate at the boundary between electrical circuiting and logical grouping. Late changes in lighting circuiting can invalidate the device schedule unless a structured update loop exists. Quality control procedures should include a formal verification of each controlled zone, confirming that switches, sensors, and dimming groups affect the intended fixtures. This step prevents the pattern where rooms are “fixed” by changing programming to match miswired circuits, which produces inconsistent behavior across the building. Disciplined mapping keeps the system aligned to design intent and preserves template consistency.

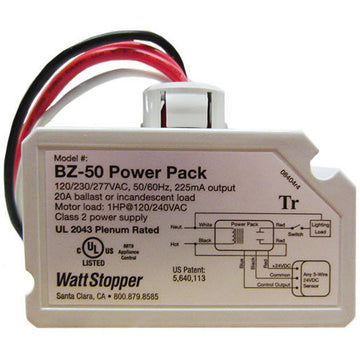

Power packs, dimmers, and clean field wiring practices
Low-voltage sensing and control architectures depend on a stable power-interface layer. The Wattstopper BZ-50 Low-Voltage Power Pack, 120–277V to 24V, is commonly specified where occupancy sensors and related low-voltage control devices require 24V control power derived from a line-voltage branch circuit. Product information published by BuyRite Electric identifies a universal 120–277V input with 24V output for supporting sensors and control devices, making the BZ-50 a critical infrastructure component rather than a minor accessory.
Installation quality directly affects long-term control reliability. Proper line-voltage feed, secure low-voltage terminations, and disciplined separation between low-voltage conductors and line-voltage wiring help reduce induced noise, mis-termination, and intermittent control faults. From a commissioning standpoint, clean wiring and verified terminations support deterministic control behavior and simplify troubleshooting when multiple sensors or control stations are connected to the same power interface.

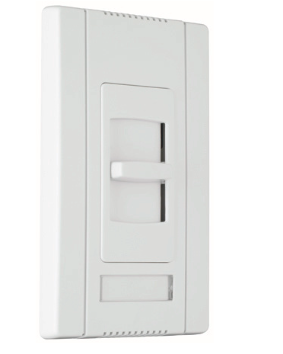

Integrated devices can reduce component count when the control architecture and sequence of operation are clearly defined. The Wattstopper CD4FBLW Titan LED 4-Wire Single-Pole 0–10V Dimmer with Integrated Power Pack, Non-Preset, White combines 0–10V dimming control with integrated low-voltage power-pack functionality within a single-gang device. The BuyRite Electric product listing presents this device as a consolidated solution for installations requiring manual 0–10V dimming along with low-voltage control support, reducing the number of separate components and field wiring points.
The benefit of this integration is a cleaner wall station and fewer discrete control devices. The tradeoff is a greater need to define how manual dimming interacts with occupancy shutoff, scheduling, and any higher-level control logic. Commissioning should include verification of 0–10V polarity, low-voltage output stability, minimum dimming behavior, and system response during occupancy events and manual adjustments to ensure predictable performance.
Commissioning and Functional Performance Testing
Phased commissioning methodology
Commissioning should be executed in phases that build on verified foundations. Hardware health and correct wiring mapping should be verified before bindings and templates are applied. Daylight calibration should occur only after stable dimming behavior and correct zoning are confirmed, and it should be scheduled when representative daylight conditions exist. Scheduling and override logic should be verified with tests that include sweep events, occupancy during sweep windows, and restoration behavior. Integration checkout should occur after local behaviors are stable, so interface issues are not mistaken for room configuration issues.
Functional testing should be organized by space type with objective criteria. Representative sampling works well for repetitive spaces, but testing density should increase in high-risk areas such as perimeter daylight zones, partitioned spaces, and rooms with complex scene behavior. Deficiency tracking should assign responsibility, document resolution, and record re-test outcomes. Commissioning should culminate in a report package that includes final sequences, configuration exports, calibration records, and integration checkout documentation. That package supports acceptance and long-term maintainability.
Trending, verification, and turnover training
Trending provides proof of performance beyond spot checks. Trends can validate that after-hours shutoff occurs, daylight zones dim under bright conditions, and override rates remain within expected bounds. High override frequency is often a diagnostic indicator of mis-tuned daylight control, overly aggressive timeouts, or mismatched schedules. Trends can also reveal zones that never shut off or never dim, which often point to mapping errors or disabled features. Using trends before turnover allows corrective action while the project team is still mobilized.
Turnover should include practical training aligned with the owner’s operational model. Training should cover occupant-facing interfaces as well as maintenance workflows like device replacement, re-binding verification, schedule edits, and calibration adjustments. Roles and responsibilities should be defined, including whether internal staff will manage configurations or a service provider will. Turnover documentation should be organized so facilities staff can locate room behaviors, device mappings, and configuration references quickly. A well-executed turnover reduces drift and supports consistent behavior across future space changes.
Operations, Service, and Troubleshooting
Tier-based troubleshooting for fast defect isolation
Effective troubleshooting starts by locating the tier where the issue lives. A single-room issue is often driven by sensor placement, tuning, binding errors, or local device health, while multi-room issues are more likely related to schedules, gateway behavior, segment-level configuration, or power distribution anomalies. Issues correlated with BAS events or network outages often indicate authority conflicts or connectivity problems rather than local sensing problems. A tier-based approach prevents unnecessary parameter changes that mask root causes. It also reduces the tendency to inflate timeouts or disable features as quick fixes, which erodes energy performance and can threaten compliance.
A consistent diagnostic workflow improves outcomes and accelerates resolution. Diagnostics should confirm the expected space-type sequence template, verify current occupancy state and its trigger, verify current lighting level and its cause, and check whether overrides are active and when they expire. Device health and recent configuration changes should be reviewed where available, and physical access should allow verification of wiring integrity in suspect cases. This workflow is faster than ad hoc testing and produces documentation that can be shared across teams. Over time, it builds a knowledge base of common failure modes and their resolutions, improving service efficiency.
Spares planning, standardization, and recommissioning triggers
Spares strategy should reflect common failure items and realistic replacement workflows. Replacement workflows must preserve bindings and sequences and include verification steps to confirm the room returns to intended behavior. Wireless systems require battery management and re-pairing steps, while wired systems require attention to controller placement and access. Standardization across a portfolio, such as consistent templates and consistent device families, reduces training burden and decreases the likelihood of inconsistent behavior after service interventions. Portfolio standardization is one of the most effective levers for reducing the total cost of ownership.
Recommissioning should be planned rather than reactive. Tenant improvements, lighting retrofits, recurring complaints, and observed drift in energy performance are common triggers. Periodic verification of high-value functions such as daylighting and after-hours sweeps helps sustain performance and catch drift early. Recommissioning activities should reference the original basis of design and template library so adjustments remain consistent across the building. A structured recommissioning approach prevents the accumulation of one-off tweaks that undermine predictability and increase service complexity.
Performance Verification and Reporting
Operational metrics and how to use them
Performance verification should focus on whether control intent is achieved and whether behavior remains stable over time. Useful metrics include runtime hours by zone, occupancy profiles, average dimming levels in daylight zones, and override frequency. Override frequency is especially valuable because it reflects occupant dissatisfaction even when service tickets are not created. Zones that never turn off, never dim, or show abnormal occupancy profiles can be flagged for investigation. Metrics become valuable only when they drive action, not when they exist only as dashboard decoration.
Measured versus inferred values should be clearly distinguished in reporting. Many control platforms estimate power based on dimming levels and assumed driver curves rather than true metering. Estimates can be adequate for operational monitoring, but they should not be treated as revenue-grade energy measurement. Reporting packages should disclose assumptions and intended use cases so stakeholders interpret results correctly. If formal M&V is required, reporting should be aligned to that requirement and supplemented with appropriate metering where needed.
Sustaining control intent with spot checks and automated review
Sustained performance requires both periodic physical verification and automated exception reporting. Spot checks validate that sequences still behave correctly in representative spaces, particularly after renovations and maintenance interventions. Automated review can flag offline devices, abnormal override rates, and zones with atypical runtime profiles. When exceptions are integrated into maintenance workflows, lighting controls become an actively managed system rather than a set-and-forget installation. This reduces the probability that features are disabled due to nuisance behavior and improves long-term energy performance.
Reporting should be tailored to the audience and operational purpose. Facilities staff benefit from actionable exception lists such as top override spaces, always-on zones, and offline devices by segment. Sustainability teams benefit from aggregated performance trends with clear assumptions and confidence bounds. Commissioning teams benefit from detailed logs that prove sequences and integrations perform as specified. A reporting package that matches real workflows is more likely to be used and maintained, which supports continuous improvement.
Appendices (Optional, Highly Technical Additions)
Space-type sequence templates
Professional implementations benefit from standardized sequence templates that can be parameterized and reused. Templates for private offices, conference rooms, open offices, corridors, restrooms, storage rooms, and classrooms can define default timeout ranges, partial-on levels, daylight targets, scene behaviors, and override logic. When templates are tied directly to device schedules and configuration practices, ambiguity drops, and commissioning becomes more efficient. Templates also allow service teams to restore intended behavior after modifications because the target state is documented.
Templates should include explicit handling for edge behaviors that commonly drive complaints. Manual-off during continued occupancy, occupancy detection during scheduled sweep windows, and interactions between daylight dimming and scene recall should be defined. Partitioned spaces require a combine-split logic with clear definitions of shared sensors, shared loads, and restoration behavior when partitions change state. Including these items in templates prevents ad hoc fixes that vary from room to room. Consistency across the building improves occupant experience and reduces long-term service complexity.
Point list templates and naming conventions
A structured point list template should define point naming, point semantics, data types, units, and expected update behaviors. Occupancy, lighting level command, lighting level feedback, override status, and demand response modes should be described with clear meanings so BAS programmers do not misuse points. Naming conventions should encode building, floor, area, room, and zone, followed by point function, enabling technicians to understand point purpose without constant cross-referencing. Aligning naming conventions with an owner’s existing BAS conventions reduces confusion and improves maintainability across systems.
The point list should be delivered in formats useful to both engineering review and implementation. A human-readable format supports review and acceptance testing, while an import-friendly format supports BAS programming and reduces transcription errors. When point lists are treated as contract deliverables and kept current through changes, integration scope remains controlled and supportable. This also allows future upgrades and recommissioning to proceed with clarity. A well-formed point list is often the difference between stable integration and persistent, hard-to-diagnose conflicts.
Commissioning test scripts and deficiency tracking
Commissioning test scripts should define initial conditions, actions, expected results, and pass-fail criteria in a language technicians can execute consistently. Occupancy tests should include vacancy periods, detection events, manual interactions, and timeout validation. Daylight tests should include methods for validating response and stability under representative conditions, with explicit targets and acceptable ranges. Integration tests should validate commands, feedback, loss-of-communication behavior, and restoration behavior. Scripts should be organized by space type to match template-based programming approaches.
Deficiency tracking should be structured to drive resolution and prevent recurrence. Each deficiency should include location, symptom description, suspected root cause category, responsible party, target resolution date, and re-test result. Patterns in deficiency logs can inform improvements to design standards, installation practices, and commissioning procedures. Repeated sensor placement deficiencies may indicate a need for stronger placement details or trade coordination. Repeated load mapping errors may indicate a need for stronger labeling and verification steps.
Closing perspective
A high-performing Wattstopper lighting control system is built through disciplined requirements definition, architecture selection, driver interface validation, sequence template standardization, and rigorous installation and commissioning practices. The catalog enables many approaches, but outcomes are determined by how responsibilities and boundaries are defined and verified across the room, network, and integration tiers. Documentation and configuration exports convert the system from a one-time project into a maintainable asset.
When those practices are in place, controls become predictable for occupants and manageable for facilities teams across the full lifecycle. Devices like the PW-101D-W, CI-300-1, CD4FBLW, and BZ-50 should be applied according to their control role: the PW-101D-W for line-voltage wall-based occupancy sensing with integrated dimming control, the CI-300-1 for low-voltage ceiling-mounted PIR sensing in spaces where coverage geometry favors overhead detection, the CD4FBLW for 0-10V dimming applications requiring a single-gang control station with integrated power-pack functionality, and the BZ-50 wherever reliable 24 VDC low-voltage control power must be derived from a 120-277V source. Their performance depends not only on device selection but also on sequence design, wiring discipline, load compatibility, and commissioning quality. In that combination, Wattstopper controls can support stable operation, defensible compliance, and sustained performance in the environments where expert practitioners are held accountable.
