As professionals working in lighting design and installation, we know that outdoor accent lighting requires more than just placing luminaires in the ground and flipping a switch. The technical precision, environmental challenges, and long-term performance demands of outdoor LED well lights make them one of the most complex fixture types to specify and install properly. When designed well, these fixtures can define the night-time identity of a landscape, highlight architectural features, and add an impressive level of elegance to any exterior project.
LED well lights represent a category of in-grade luminaires specifically designed to be flush with the finished surface. Unlike spike lights or directional bollards, well lights must endure static and dynamic loads, resist water ingress, dissipate heat efficiently, and deliver photometric performance equivalent to their above-grade counterparts. As we've moved away from halogen and metal halide sources, the transition to solid-state lighting has introduced not only greater longevity and control but also new challenges in thermal regulation, driver compatibility, and optical precision.

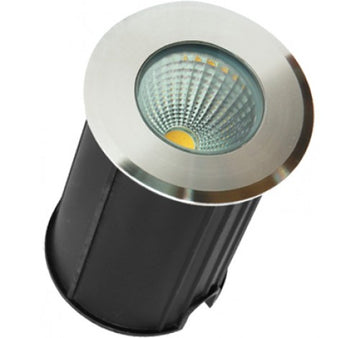

Anatomy of an LED Well Light
Housing and Structural Components

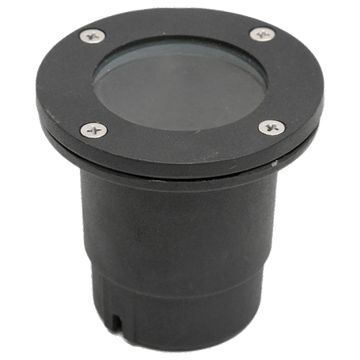

The structural body of an LED well light is fundamental to both performance and long-term reliability. Common materials include marine-grade stainless steel, brass, UV-stabilized composite polymers, and anodized aluminum alloys, each suited to specific conditions based on environmental exposure, corrosion potential, and aesthetic goals. In applications exposed to de-icing salts or coastal environments, non-ferrous materials such as bronze or engineered composites are preferred to minimize galvanic corrosion and oxidation. High-end installations often specify cast brass due to its durability and extended service life, despite the higher initial cost.
Load ratings are another critical consideration. A fixture rated for pedestrian use might fail under the weight of light vehicle traffic. For drive-over installations, the housing and lens must meet rigorous load distribution standards and include structural reinforcements. These are typically tested to IK ratings (impact resistance) and ANSI standards for drive-over applications. Additionally, we must always review the mounting system. Whether it is a burial can or poured-in-place sleeve, it must resist soil shifting and allow proper fixture alignment post-installation.
Optical System
The optical assembly in a well light determines how effectively the light is projected onto the intended target, whether it be tree canopies, walls, or architectural columns. Most professional-grade fixtures utilize either precision-molded Total Internal Reflection (TIR) optics or reflector-based systems. TIR optics offer higher control over beam shaping and can produce tightly defined distributions, while reflectors offer a softer transition with less center-beam intensity. Both are valid choices depending on application.
For added flexibility, many manufacturers include field-changeable lenses or beam shaping filters. Accessories such as hexcell louvers, spread lenses, and internal baffles allow for tighter control over glare and spill light. Some fixtures also incorporate built-in tilt adjustability within the sealed housing, offering a range of vertical aiming without compromising the IP rating. It is essential to understand the relationship between beam angle, mounting distance, and target height to ensure proper illumination without hot spots or scalloping.
Environmental and Mechanical Engineering Considerations
Thermal Management
One of the more subtle but critical aspects of LED well light performance is thermal regulation. Unlike above-ground luminaires that radiate heat into ambient air, in-grade fixtures are enclosed and buried, which severely limits natural convection. To manage this, manufacturers rely heavily on passive thermal dissipation using conduction paths through the housing into surrounding soil. Some advanced designs use integrated heat sinks or thermally conductive potting compounds to channel heat away from the LED engine.
Soil characteristics play a significant role in system performance. Moisture content, compaction levels, and soil composition, such as sand, clay, or loam, directly influence thermal conductivity. In colder climates, freeze–thaw cycles introduce additional mechanical stress, while prolonged elevated soil temperatures in arid regions can accelerate LED and driver degradation. Soil conditions should therefore be factored into specifications, with added cooling capacity or driver derating recommended where high ambient soil temperatures are anticipated.
Moisture and Corrosion Resistance
Ingress protection is a non-negotiable feature for any well light, particularly when installed in turf, mulch beds, or hardscape areas subject to irrigation or pooling. The fixture must maintain a sealed internal environment, commonly rated to IP67 or IP68. IP67 covers temporary submersion, while IP68 is for continuous submersion under manufacturer-defined conditions. Both require precise gasketing strategies, such as double O-ring seals and compression gaskets that do not degrade over time.
Corrosion resistance is a critical consideration, particularly for fixtures installed near fertilized landscapes, swimming pools, or coastal environments. Chloride exposure and acidic soil conditions can rapidly degrade untreated metals. Specifications should favor fixtures with electrostatically applied powder-coated finishes or marine-grade materials, while mixed-metal assemblies that may induce galvanic corrosion should be avoided. Direct burial of non-encapsulated wire connections is strongly discouraged; instead, appropriately rated gel-filled splice kits should be used to mitigate water ingress and extend system longevity.
Electrical Design and Power Delivery
Power System Integration
The choice between low-voltage (12V or 24V) and line-voltage (120V or 277V) systems has far-reaching implications, influencing fixture selection, conductor sizing, and conduit planning. Low-voltage systems provide greater layout flexibility and enhanced safety in wet environments and are commonly used in residential or estate-scale applications. However, they require transformers, and voltage drop can become a limiting factor over longer runs. During specification, worst-case voltage drop should be calculated, and transformers should be appropriately derated for continuous outdoor operation.

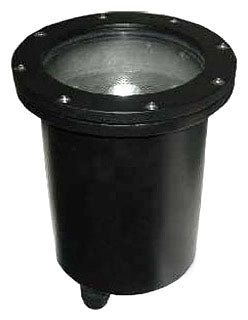

Line-voltage systems, on the other hand, are better suited for commercial applications with higher lumen requirements or centralized controls. These systems simplify wiring but introduce stricter code requirements for conduit, junction boxes, and fixture certification. Most line-voltage LED well lights have integrated drivers, so fixture selection must consider both electrical compatibility and available space for wiring connections.
Load Balancing and Circuit Segmentation
To ensure consistent light output across a lighting zone, managing voltage drop is paramount. In low-voltage systems, we calculate voltage loss per foot of cable, factoring in wire gauge and load per fixture. For long runs, this often requires the use of larger gauge wire, multiple taps on the transformer, or distributed power nodes. Using a daisy-chain wiring method without proper compensation leads to inconsistent brightness and potential premature driver failure.
Circuit segmentation is a recognized best practice, particularly for larger properties. Dividing lighting loads into multiple zones helps balance power demand while enabling future maintenance, scene control, and system expansion. Segmentation simplifies troubleshooting, improves redundancy, and facilitates integration with lighting control systems. A complete schematic, including clearly labeled zones, circuit identifiers, and load schedules, should accompany every installation.
Advanced Photometrics and Beam Management
Photometric Design Parameters
The photometric profile of an LED well light is more than just its beam angle. We evaluate key metrics such as delivered lumens, luminous intensity distribution, and center-beam candle power (CBCP). A narrow beam angle may offer high CBCP but reduced coverage area, while a wider beam may result in diffuse wash with limited vertical reach. IES files provided by manufacturers should be studied carefully, and mock-ups are often invaluable for verifying real-world performance.
Designing lighting to meet project goals requires precise photometric modeling. Software tools like AGi32 or DIALux allow us to visualize how light will interact with surfaces and structures. Design palettes should include multiple beam distribution types to accommodate varying application needs. For example, a 10-degree narrow spot is well suited for tall palms or flagpoles, while a 40-degree flood is more appropriate for wall grazing or groundcover accenting.
Beam Angle Engineering
Choosing the right beam angle is critical for both aesthetics and function. A narrow beam (under 15 degrees) is ideal for tall, narrow targets where we want to avoid light spill, such as columns or flagpoles. Medium beam spreads (20 to 30 degrees) offer a balance of intensity and coverage, suitable for mid-height trees or statuary. Wide floods (above 40 degrees) create softer ambient effects and are useful for general landscape accents or wall grazing.
Some fixtures incorporate field-adjustable optics or modular lens systems that allow beam angle changes without requiring full luminaire replacement. This flexibility is particularly valuable in dynamic landscapes where plant growth or design modifications can alter lighting requirements over time. Mixing beam angles indiscriminately within a single zone should be avoided, as it can create visual imbalance and inconsistent brightness levels.

Specification and Selection Workflow
Criteria-Based Selection Matrix
Specifying LED well lights benefits from the use of a selection matrix that accounts for multiple technical and environmental variables. These include:
- Lumen output: Match fixture output to target distance and reflectance.
- Beam angle: Dictated by height and width of the object to be lit.
- Mounting depth: Consider sleeve or can dimensions relative to soil conditions.
- Load rating: Ensure compatibility with pedestrian or vehicular traffic.
- Driver type: Integral vs remote, and control system compatibility.
A matrix-based approach reduces guesswork and helps ensure that fixture selection aligns with performance objectives and site constraints. Incorporating product lifecycle metrics, such as L70 and L90 lumen maintenance data, into the evaluation process supports informed decision-making and promotes long-term system reliability.
Environmental Suitability
Environmental factors directly influence fixture longevity and maintenance requirements. In coastal applications, specifications should prioritize corrosion-resistant housings and fully sealed optical compartments. For installations near pools or fountains, well lights must be chlorine-resistant and rated to IP68 for continuous or intermittent submersion. In regions subject to heavy rainfall or freeze–thaw cycles, additional drainage provisions and enhanced moisture protection are essential to ensure long-term performance.
Fixture specification must also account for temperature extremes. Elevated ambient temperatures can trigger LED derating, making it essential to verify the stated operating temperature range in product datasheets. In desert environments or other high-heat conditions, fixtures equipped with thermal foldback circuitry are preferred, as they protect drivers and LED packages from overheating, even if this results in a temporary reduction in light output.
Control System Integration and Zoning
Standalone vs Networked Control
Control strategy is a significant part of any modern landscape lighting system. In simpler residential setups, standalone control via photocells, timers, or basic Bluetooth apps is often sufficient. These methods offer straightforward programming and require minimal infrastructure. However, they offer limited scalability and lack the flexibility needed in larger or multi-zone environments.
For commercial or estate-scale projects, networked lighting control systems that support DALI, DMX, or 0–10V protocols are recommended. These platforms provide granular dimming, scene control, and seamless integration with building management systems (BMS). Proper zoning enables selective operation based on user preferences, occupancy schedules, or special events, while also supporting dynamic effects such as color transitions or programmed intensity changes throughout the evening.
Scene-Based Programming
Scene-based control enhances the experiential quality of outdoor lighting. Whether it's a tranquil evening garden mode or a vibrant festive event setting, scenes allow us to predefine fixture behaviors based on real use cases. This is typically achieved through DMX or programmable relay modules that group fixtures by zone or function. The system can be programmed to activate specific zones at varying intensities and times.
Successful implementation requires that initial commissioning involve not only electricians, but also designers and end users. Each lighting scene should be documented, tested, and configured to allow future adjustment. A detailed scene schedule should be included in the as-built documentation, along with clear instructions for modifying scenes as seasonal conditions or landscape elements evolve.
Installation Engineering and Best Practices
Foundation and Mounting Systems

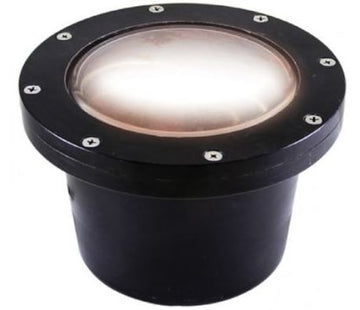

A well light is only as reliable as the system used to secure it. The structural integrity of the mounting method has a direct impact on long-term performance and serviceability. Most high-quality fixtures require a dedicated PVC or ABS sleeve installed below grade, which maintains proper alignment while allowing for straightforward servicing or replacement. In concrete applications, adjustable pour kits or mounting cans should be used to ensure precise positioning during placement. The fixture body should never be embedded directly in concrete or soil without an intermediary sleeve.
Beyond mechanical support, the mounting base must also accommodate drainage and cable access. A gravel bed beneath the sleeve facilitates water movement away from the fixture and reduces the risk of standing water. In areas with heavy clay soils or poor natural drainage, the inclusion of a French drain or dry well connection can further mitigate water accumulation. The sleeve should terminate slightly above finished grade to limit water intrusion, particularly in lawn areas subject to regular irrigation.
Site Preparation and Drainage Planning
Poor drainage is one of the most common causes of LED well light failure. Unlike above-grade luminaires, well lights operate in constant proximity to moisture, making any breach in sealing potentially catastrophic. Soil drainage characteristics should be evaluated prior to installation. Sandy and loamy soils typically provide adequate permeability, while clay-dominant soils retain water and often require remediation. Proactive drainage design should be incorporated regardless of seasonal dryness, as moisture-related failures frequently occur outside peak rainfall periods.
In hardscape installations, such as pavers or concrete pads, ensure the fixture is installed in a way that allows surface runoff to bypass it rather than collect around it. Subsurface drain tile, open gravel channels, or built-in weep paths can be integrated depending on the surface type. Also, it’s important to avoid placing well lights in naturally low points unless the drainage has been engineered to accommodate it. Water has a memory, and ignoring its pathways will almost always result in fixture failure.
Failure Modes and Preventive Maintenance
Common Failure Scenarios
Despite best practices, failures can still occur, particularly when shortcuts are taken during installation. Common issues include thermal cutoff events, driver flicker, condensation within the optical chamber, and gradual lumen depreciation beyond acceptable thresholds. Thermal events are often the result of improper burial methods or installations that fail to account for soil temperature. When thermal limits are exceeded, drivers may cycle intermittently or shut down entirely, leading to unreliable operation.
Moisture ingress is another frequent cause of failure. Even a minor gasket defect, an improperly tightened fastener, or a compromised wire seal can allow condensation to form inside the fixture. Over time, this moisture can corrode electrical components and create internal short circuits. In some installations, unprotected buried wire connections have allowed capillary action to draw water directly into the luminaire. Thorough inspection and rigorous testing during commissioning can identify many of these issues early and help prevent premature system failure.
Preventive Design Strategies
Preventing failure begins at the specification phase. Fixtures should be selected with proven sealing strategies, IP68 ratings, and corrosion-resistant materials. Where possible, designs with potted internal drivers or separate driver compartments are preferred to isolate electronics from LED chambers. Fixtures incorporating breather valves or pressure-equalizing membranes should also be prioritized, as these features help reduce internal condensation caused by temperature fluctuations.
Wiring practices are equally critical. Gel-filled connectors should be used within outdoor-rated junction boxes, and these boxes should be installed above grade with a defined drainage path. Circuit loading should be carefully managed, as overloaded circuits place additional stress on drivers and can lead to premature failure. In installations with limited maintenance access, modular fixture systems, where drivers or optical components can be replaced independently, provide reduced downtime and lower long-term maintenance costs.
Documentation, Submittals, and As-Built Integration
Manufacturer Submittals
Professional-grade lighting packages are only complete when supported by comprehensive documentation. Required submittals should include photometric files (.IES format), CAD or BIM drawings, and detailed mounting instructions. Specification sheets should provide performance data such as L70 and L90 lumen maintenance values, color consistency metrics (e.g., SDCM), and defined thermal operating limits. Documentation should also clearly indicate control compatibility (0–10V, DALI, etc.) and include wiring schematics for multi-zone control systems.
For construction documentation, cut sheets should be redlined to reflect any substitutions or field changes. CAD blocks should include sleeve dimensions, conduit entry points, and setback distances from walls or curbs. This level of detail helps coordinate trades and prevents rework. Additionally, a comprehensive fixture schedule must be maintained and updated through construction, ensuring that what gets installed aligns with the designer’s intent and complies with electrical code.
As-Built Drawings and Maintenance Manuals
Once installation is complete, the project team should produce as-built documentation that reflects actual site conditions. These drawings should indicate final fixture locations, circuit assignments, and control zones. Voltage measurements recorded during commissioning should be documented, and transformer tap points clearly labeled. This information is invaluable for future maintenance, troubleshooting, and system modifications.
Operation and Maintenance (O&M) manuals should be created or compiled from manufacturer documentation. These should include replacement part numbers, maintenance intervals, and recommended cleaning procedures. If the control system is programmable, scene names and their configurations should be clearly listed, and backup files should be archived for future use. Providing this level of deliverables ensures the lighting system remains operable and serviceable for years to come.
Final Thoughts
The specification, installation, and maintenance of LED well lights demand a high level of technical understanding and careful project execution. These are not plug-and-play fixtures; they are integrated systems that must perform reliably in some of the harshest conditions on a property. As professionals, we carry the responsibility of choosing solutions that not only meet the design intent but also stand the test of time in real-world environments.
By diving deep into the anatomy of well lights, understanding their photometric behavior, planning for environmental exposure, and ensuring precision during installation, we can deliver lighting systems that perform flawlessly. This level of detail is not optional for high-caliber work. It is a requirement when striving to deliver performance, safety, and beauty in every project. Our clients rely on us not just to light their landscapes, but to ensure that those lights stay lit, year after year, with the quality and consistency that defines professional excellence.
