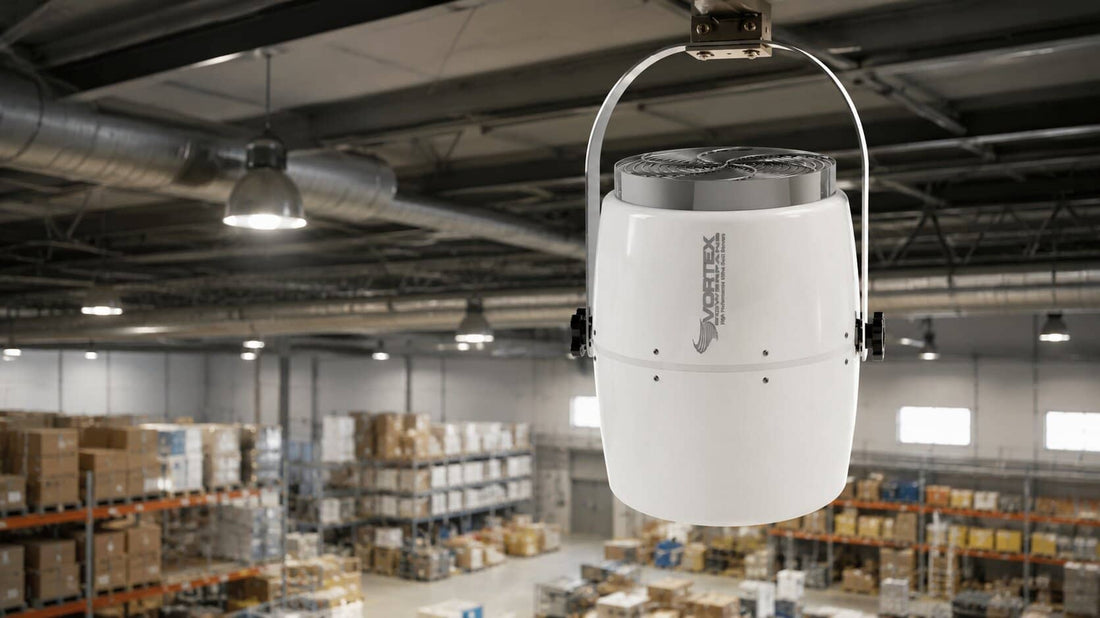

Thermal stratification should be introduced as an HVAC performance problem, not just a comfort issue: warm air collects near the roof structure, cooler air remains in the occupied zone, and the heating system runs longer because usable heat is trapped above the work area. In warehouses, manufacturing plants, gymnasiums, logistics facilities, and large retail spaces, heated air rises due to buoyancy and accumulates near the roof structure. Meanwhile, cooler air settles in the occupied zone. This vertical separation creates measurable temperature gradients that often exceed 15°F to 25°F between floor and ceiling in tall facilities. The result is not just uneven comfort, but systemic HVAC inefficiency.
Heating systems attempt to compensate for colder occupied zones by increasing discharge temperatures or extending runtime. At the same time, substantial thermal energy remains trapped above the working area, unused and effectively wasted. Destratification systems are engineered specifically to address this imbalance. Panasonic Atmosphere Vortex technology approaches the problem not as a comfort fan solution, but as an airflow engineering strategy designed to equalize thermal distribution across the full building volume.
Thermal Stratification in Commercial and Industrial Buildings
Physics of Stratified Air Masses
Stratification originates from basic thermodynamic principles. Heated air has lower density than cooler air, causing it to rise. As HVAC systems inject warm supply air into a building, buoyancy forces drive it upward toward the roof deck. Additional heat from lighting systems, process equipment, occupants, and solar roof gain compounds the accumulation of thermal energy at ceiling level. In tall spaces, stable thermal layers form and persist without mechanical disruption.
The severity of stratification increases with ceiling height. A 12 foot retail space may experience moderate layering, but a 30 foot warehouse can develop significant vertical separation that continuously undermines HVAC efficiency. Roof insulation performance, return air location, air infiltration rates, and supply diffuser geometry all influence how aggressively temperature gradients form. Without active air circulation management, thermal separation becomes a structural characteristic of the building’s airflow behavior.
Operational Consequences of Stratification
The operational implications extend well beyond uneven comfort. When ceiling heat remains trapped overhead, HVAC systems must run longer to maintain floor level temperature setpoints. This leads to increased fuel consumption, elevated electrical demand, more frequent equipment cycling, and higher long term maintenance costs. The heating system effectively operates against a thermodynamic inefficiency that airflow engineering could otherwise mitigate.
Additional issues arise in facilities using zoning controls or automated building management systems. Thermostats positioned in localized temperature pockets may generate inaccurate calls for heating. Return air sensors exposed to hot ceiling air can distort system response logic. Occupants often report inconsistent thermal conditions between workstations, loading areas, mezzanines, and perimeter zones. In industrial settings, temperature instability can also influence product storage conditions or process reliability.
Destratification Technology Fundamentals
What Destratification Fans Actually Do
Destratification fans are designed to eliminate vertical temperature gradients through controlled air recirculation. Their objective is not to create high velocity airflow across occupants. Instead, they establish vertical circulation loops that continuously move warm ceiling air downward while drawing cooler lower air upward. Over time, this mixing process reduces temperature separation and creates uniform thermal distribution throughout the building volume.
This is a fundamentally different goal from conventional ceiling fans or large HVLS systems used for occupant cooling. Comfort fans prioritize perceived cooling through increased skin-level air movement. Destratification systems prioritize energy recovery and temperature equalization. Panasonic Atmosphere Vortex systems are engineered around this distinction, focusing on stabilized air circulation rather than raw airflow volume.
Airflow Engineering Principles
Effective destratification depends on induced airflow and entrainment rather than simple discharge velocity. The fan does not physically move all air in the building directly. Instead, it generates an organized airflow structure that induces surrounding air to move through secondary entrainment effects. This amplifies circulation volume relative to motor power input.
Key performance variables include:
- Throw distance
- Induction ratio
- Velocity decay profile
- Turbulence intensity
- Circulation stability
- Occupied zone airspeed
Excessive turbulence can reduce destratification efficiency because chaotic airflow dissipates quickly and fails to establish consistent circulation loops. Stabilized airflow patterns provide more reliable vertical mixing. Panasonic’s vortex-based approach focuses on maintaining airflow coherence across longer vertical distances while supporting the same airflow efficiency and long-term ventilation performance principles seen in other Panasonic air movement systems.
Categories of Destratification Systems
Destratification systems generally fall into several categories based on airflow methodology:
- Conventional axial ceiling fans
- HVLS large diameter fans
- Nozzle-driven jet systems
- Mixed flow inline circulation systems
- Vortex stabilized ceiling systems
Axial fans typically generate localized downward airflow but may lack strong entrainment performance. HVLS systems move large horizontal volumes of air and are effective in broad open spaces, though vertical equalization may vary depending on configuration. Vortex-based systems aim to combine vertical reach with circulation stability. Panasonic Atmosphere Vortex technology is engineered to deliver controlled mixing rather than wide horizontal wash effects.
Panasonic Atmosphere Vortex Technology
Product Architecture and System Design
Panasonic’s Atmosphere Vortex systems are engineered around controlled air circulation strategies rather than high-velocity airflow delivery. The design combines aerodynamic blade geometry with EC motor efficiency to establish stabilized vortex airflow patterns that encourage vertical air mixing within large interior volumes. Rather than generating aggressive occupant-level drafts, the system is intended for continuous low-speed operation that promotes thermal equalization while limiting acoustic disruption.

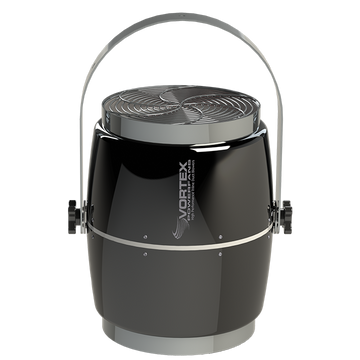

Within this platform, the Panasonic D-65BLACK Atmosphere Vortex Destratification Fan functions as a ceiling-mounted commercial destratification unit intended for high-bay and large-volume environments. The linked BuyRite product page describes the fan as part of the Atmosphere Vortex series designed for ceiling-mounted installation in commercial applications. Variable-speed EC motor operation allows airflow adjustment based on environmental conditions, while the vortex circulation pattern promotes air entrainment by drawing warmer air from upper ceiling regions and redistributing it downward to reduce thermal stratification.
This operating approach is especially relevant in warehouses, logistics facilities, gymnasiums, manufacturing spaces, and other high-ceiling occupancies where heat accumulation commonly develops above the occupied zone. By reducing temperature differentials between ceiling and floor levels, the system can help maintain more uniform thermal conditions and support improved heating efficiency without introducing excessive occupant-level air movement.
Vortex Airflow Mechanics
The defining characteristic of the Atmosphere Vortex platform is spiral airflow generation. Conventional axial fans often produce turbulent discharge streams that dissipate rapidly. Vortex airflow should be explained once as stabilized rotational airflow that maintains vertical reach and entrains surrounding air, then later references should focus on application: warehouse coverage, reduced drafts, HVAC runtime reduction, or return-air stabilization.
This airflow behavior improves several performance factors:
- Vertical penetration depth
- Secondary air entrainment
- Circulation stability
- Reduced turbulence decay
- Thermal equalization efficiency
By organizing airflow into structured rotational patterns, vortex systems maintain coherence across greater distances. This is especially important in high ceiling environments where airflow must travel substantial vertical height to recover trapped thermal energy.
Motor and Drive Technology
Electronically commutated motor technology is central to Panasonic’s efficiency strategy. EC motors maintain high efficiency across a wide speed range and are particularly effective in variable speed applications. Destratification rarely requires constant full output operation, so part load efficiency becomes critical. EC motors outperform conventional induction motors under these conditions.
Variable speed capability allows airflow intensity to adapt to seasonal and operational conditions. During moderate weather, reduced fan speed can maintain equalization while minimizing electrical consumption. During peak winter stratification, higher speeds accelerate mixing and reduce ceiling heat accumulation more aggressively. This flexibility improves both energy efficiency and thermal control precision.
Blade and Housing Aerodynamics
Blade geometry directly influences airflow coherence and noise generation. Panasonic’s aerodynamic design emphasizes pressure stability and turbulence reduction. Blade curvature, pitch angle, and housing integration are engineered to support vortex formation and sustained circulation.
Aerodynamic optimization contributes to:
- Stable airflow acceleration
- Reduced pressure losses
- Noise suppression
- Velocity consistency
- Long term energy efficiency
Improper aerodynamic integration can lead to chaotic airflow separation and reduced entrainment efficiency. The vortex approach relies on maintaining structured circulation rather than relying solely on airflow volume.
Airflow Dynamics and Performance Analysis
Understanding Vortex Based Air Mixing
Vortex airflow systems differ from conventional fans because they organize air movement into rotational structures that induce broader circulation. Instead of relying entirely on direct discharge velocity, the system amplifies total airflow influence through induced secondary motion.
This results in:
- Expanded effective coverage area
- Stable vertical mixing loops
- Reduced occupant level draft perception
- Improved temperature uniformity
The circulation pattern gradually draws ceiling heat downward while lifting cooler air upward, creating a continuous mixing cycle. In high volume buildings, this method often produces more predictable equalization than broad turbulent airflow patterns.
Computational Fluid Dynamics Modeling
Computational fluid dynamics (CFD) modeling plays an increasingly important role in destratification design because airflow interaction inside large commercial spaces is complex. Structural beams, racking systems, mezzanines, and HVAC diffusers can significantly alter circulation patterns. CFD simulation allows engineers to visualize airflow distribution and identify potential dead zones before installation.
CFD analysis is particularly useful for:
- Optimizing fan spacing
- Evaluating airflow overlap
- Modeling return air interaction
- Predicting thermal equalization behavior
- Identifying stagnant regions
For retrofit applications, CFD helps determine whether destratification will integrate effectively with existing HVAC distribution without unintended interference.
Thermal Equalization Performance
The primary performance metric for destratification is reduction of vertical temperature gradients. Effective systems can reduce ceiling to floor differentials from double digit values to only a few degrees throughout the occupied space.
Performance validation typically involves:
- Multi level temperature logging
- Infrared thermal imaging
- HVAC runtime comparison
- Sensor data trending
Accurate evaluation requires careful sensor placement because localized measurements may not represent overall building behavior. Large facilities often require multiple data collection zones to confirm consistent equalization across the structure.
HVAC System Integration
Interaction with Heating Systems
Destratification systems deliver the greatest measurable impact when integrated deliberately with the building’s heating strategy. By redistributing trapped ceiling heat downward, circulation systems reduce the amount of new thermal energy that must be introduced to maintain occupied-zone setpoints. In tall facilities, the recovered heat volume can be significant. Even a modest reduction in vertical temperature gradient can translate into measurable reductions in burner runtime, heat pump cycling, or hydronic loop demand.
The interaction between destratification and heating equipment depends on system type. Rooftop units may experience more stable return-air temperatures, improving discharge control precision. Heat pumps benefit from reduced peak demand and faster recovery times. Gas-fired unit heaters often cycle less aggressively because uniform mixing reduces thermostat overshoot and undershoot conditions. In each case, airflow management enhances the effectiveness of heating output already being generated rather than increasing system capacity.
Cooling Season Implications
Although destratification is most frequently associated with winter heating efficiency, airflow equalization also affects cooling season performance. In many facilities, heat accumulates near the ceiling during summer operation because of solar roof loading and internal process heat. Without vertical mixing, this thermal buildup can distort return-air sensing and create localized hot pockets that affect overall cooling control.
Careful speed modulation is essential during cooling operation. The goal is not to create high downward velocity but to maintain gentle circulation that stabilizes temperature distribution. Over-aggressive airflow may interfere with diffuser throw patterns or create discomfort in occupied zones. When properly calibrated, vortex-based circulation can improve cooling uniformity without introducing objectionable draft conditions.
Acoustic and Occupant Environment Analysis
Acoustic Engineering
Acoustic performance is a critical but often underemphasized aspect of airflow system specification. Noise generated by air-moving equipment commonly originates from blade-pass frequency, turbulent airflow separation, motor vibration, and structural resonance transferred through mounting assemblies. In offices, educational facilities, and assembly occupancies, uncontrolled background noise from mechanical air circulation systems can negatively affect occupant comfort, concentration, and speech intelligibility.
Stabilized vortex airflow patterns help limit chaotic turbulence, supporting smoother and more predictable acoustic behavior during continuous operation. EC motor technology further contributes to reduced sound output and supports the same quiet airflow performance and ventilation efficiency principles associated with advanced Panasonic air movement systems. These characteristics become particularly important in large occupied spaces where destratification systems may operate for extended periods throughout the day.

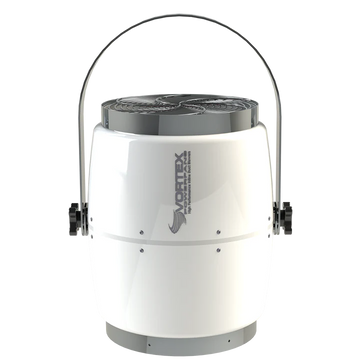

The Panasonic D-65White Atmosphere Vortex destratification fan is intended for ceiling-mounted commercial applications requiring vertical air mixing with controlled acoustic performance. The linked BuyRite product page places the unit within the Atmosphere Vortex destratification series developed for high-ceiling commercial environments. Its EC motor-driven variable-speed operation works in conjunction with vortex-based airflow circulation to support thermal equalization while maintaining sound characteristics more appropriate for continuously occupied commercial spaces where excessive mechanical noise would be undesirable.
Occupant Comfort Considerations
Comfort stability depends not only on temperature but also on airflow perception. Excessive downward velocity can create draft discomfort even if the average air temperature is acceptable. Effective destratification relies on subtle circulation that equalizes temperatures without producing noticeable air movement at occupant level.
Comfort-focused airflow management emphasizes:
- Low occupied-zone velocity
- Reduced hot and cold spots
- Stable humidity distribution
- Consistent thermal perception
In environments where occupants remain stationary for extended periods, such as retail checkout areas or classroom seating zones, balanced circulation becomes especially important. Proper fan spacing and speed control ensure that thermal equalization does not compromise comfort stability.
Design, Specification, and Sizing Methodology
Determining Destratification Requirements
Product selection should begin with measured ceiling-to-floor temperature gradient, ceiling height, building volume, supply-air location, return-air behavior, racking or mezzanine obstructions, and acceptable occupied-zone airspeed. Ceiling height alone does not determine airflow needs. Designers must evaluate vertical temperature gradients, heat load characteristics, HVAC configuration, and occupancy patterns. Facilities with significant process heat or poor insulation may require more aggressive circulation strategies than lightly loaded commercial spaces.
Critical specification variables include:
- Building volume
- Measured temperature gradient
- Supply-air discharge location
- Return-air configuration
- Internal heat sources
- Structural obstructions
Baseline measurement of ceiling-to-floor temperature separation provides valuable data for sizing decisions. Without quantifying the problem, system specification becomes guesswork rather than engineering.
Fan Placement and Layout Optimization
Airflow geometry determines destratification effectiveness more than raw airflow quantity. Proper mounting height ensures optimal circulation penetration while minimizing occupant-level velocity. Fan spacing must be calculated to avoid circulation interference or dead zones between units.
Layout design must consider:
- Structural beams
- Lighting arrays
- Sprinkler systems
- Racking systems
- Mezzanine platforms
- Ductwork routing
In complex environments such as warehouses with tall storage racks, airflow can be channelized or obstructed. CFD modeling can assist in determining optimal placement that preserves circulation continuity across the entire building volume.
Common Specification Errors
One of the most common mistakes is oversizing circulation systems under the assumption that more airflow guarantees better equalization. Excess airflow often produces unstable turbulence and occupant discomfort without improving mixing efficiency. Effective destratification depends on airflow organization rather than brute force.
Other frequent errors include:
- Improper mounting elevation
- Ignoring HVAC diffuser interaction
- Failing to coordinate controls
- Neglecting return-air behavior
- Inadequate commissioning procedures
Engineering oversight during specification significantly reduces the likelihood of underperformance after installation.
Installation and Commissioning
Installation Requirements
Mechanical integrity is critical because destratification systems often operate continuously. Structural mounting assemblies must withstand vibration loading over extended periods. Anchor selection, bracket alignment, and clearance verification are essential to preserve airflow coherence and long-term reliability.
Electrical coordination must support variable-speed EC motor operation. Stable power supply and proper grounding protect electronic controls from voltage irregularities. Clearance from obstructions is also important to prevent airflow disruption that could reduce circulation effectiveness.
Startup and Commissioning Procedures
Commissioning verifies that thermal equalization objectives are achieved under real operating conditions. Baseline temperature gradients should be recorded prior to startup for comparison. Post-installation measurements confirm whether vertical separation has been reduced as intended.
Commissioning should verify:
- baseline and post-startup temperature gradients
- occupied-zone airspeed
- fan speed calibration
- HVAC runtime trends
- BAS or control sequence behavior
Performance tuning may require iterative adjustments because real-world airflow behavior can differ from theoretical projections.
Operational Optimization
Variable-speed capability allows circulation intensity to match seasonal conditions. During peak winter stratification, higher speeds may be required to accelerate mixing. During mild weather, lower speeds maintain stability while minimizing energy use.
Operational strategies often include:
- Temperature differential activation
- Occupancy-based scheduling
- BAS integration
- Seasonal speed adjustment
Dynamic airflow control maximizes both energy savings and comfort stability.
Maintenance and Reliability Engineering
Preventive Maintenance
Routine inspection preserves airflow efficiency and reliability. Dust accumulation can alter blade aerodynamics and reduce entrainment performance. Bearings and mounting hardware should be inspected periodically to prevent vibration-induced wear.
Preventive maintenance typically includes:
- Blade cleaning
- Motor inspection
- Mounting verification
- Electrical connection checks
- Vibration monitoring
Scheduled evaluation ensures that circulation performance remains consistent over time.
Reliability Considerations
Environmental exposure influences lifespan. Industrial facilities with airborne particulates or corrosive contaminants require more frequent inspection. EC motors generally offer durability advantages due to reduced mechanical stress and improved thermal performance.
Variable-speed operation also contributes to longevity because full-speed operation is not required continuously. Reduced mechanical loading during partial-load operation extends component life.
Comparative Engineering Analysis
Panasonic Atmosphere Vortex vs HVLS Systems
HVLS systems move large horizontal air volumes and are effective for occupant cooling in expansive open areas. However, their performance in vertical thermal equalization varies depending on configuration. Vortex systems emphasize vertical penetration and organized entrainment rather than wide horizontal wash.
Vortex systems typically offer:
- Focused vertical circulation
- Smaller installation footprint
- Greater integration flexibility
- Reduced structural clearance requirements
The appropriate solution depends on building geometry and operational objectives.
Vortex Systems vs Conventional Axial Fans
Conventional axial fans may produce noticeable airflow but often lack stable entrainment behavior across tall volumes. Turbulent discharge dissipates quickly and may not reach ceiling heat accumulation zones effectively.
Vortex-based systems aim to improve:
- Circulation stability
- Vertical reach
- Induction efficiency
- Temperature equalization consistency
Engineering emphasis on airflow organization differentiates vortex systems from generic axial solutions.
Energy Performance and Operational Economics
Heating Energy Reduction
Recovered ceiling heat directly offsets new heating demand while contributing to broader high efficiency commercial energy management strategies. In tall facilities, even modest reductions in temperature gradient can translate into measurable fuel savings. Buildings operating long winter hours often realize the greatest benefit.
Savings depend on:
- Ceiling height
- Climate severity
- Existing gradient magnitude
- HVAC system type
- Operating schedule
Quantitative measurement of pre- and post-installation energy usage provides the most reliable evaluation.
Electrical Consumption and ROI
Destratification systems consume electricity continuously, but EC motor efficiency keeps operating costs relatively low compared to recovered heating energy. Watt-per-CFM efficiency and part-load performance should be evaluated during lifecycle cost analysis.
ROI modeling should incorporate:
- Fuel savings
- Reduced HVAC runtime
- Maintenance reduction
- Energy pricing
- Climate conditions
Facilities with severe stratification often achieve attractive payback periods due to significant thermal recovery potential.
Standards, Compliance, and Verification
Mechanical and Electrical Compliance
Systems must comply with relevant mechanical codes, electrical standards, and structural requirements. Mounting assemblies must meet load specifications, and electrical installations must follow NEC guidelines.
Coordination with HVAC balancing and airflow standards ensures that circulation does not disrupt ventilation effectiveness or occupied-zone air velocity requirements.
Performance Verification
Objective measurement confirms system effectiveness. Thermal gradient logging remains the primary validation method. Air velocity testing and runtime comparison provide additional insight into operational impact.
Verification typically includes:
- Multi-level temperature sensing
- Infrared imaging
- Energy consumption comparison
- Trend analysis over seasonal cycles
Long-term monitoring provides the clearest indication of sustained performance.
To Conclude
Thermal stratification represents a structural inefficiency in large-volume commercial buildings. Without airflow intervention, valuable conditioned air accumulates near the ceiling while HVAC systems continue generating new heat to maintain floor-level comfort. The resulting energy waste and operational instability are avoidable through engineered air circulation.
Panasonic Atmosphere Vortex technology offers a focused approach to vertical thermal equalization.Use the D-65BLACK where the project needs ceiling-mounted vortex destratification for high-bay thermal equalization.
