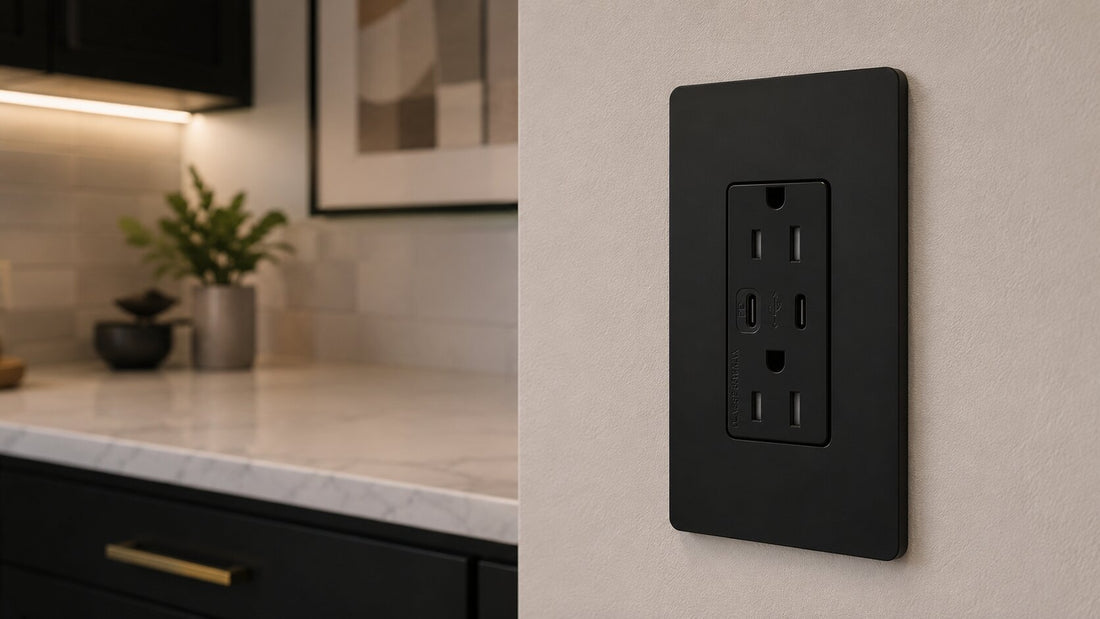

Lutron Claro USB-C Receptacles: Features, Finishes, and Buying Guide

• Lutron Claro USB-C duplex receptacles must be specified with per-port watts, combined watts, and dual-port power-sharing rules to prevent slow-charge complaints.
• In-wall USB-C receptacles can throttle output from heat buildup; deeper wallboxes, reduced conductor crowding, and separating heat sources improve sustained charging.
• Location-specific code compliance often requires tamper-resistant receptacles plus GFCI/AFCI protection; list these requirements per room on the receptacle schedule.

Specify Lutron Claro USB-C receptacles as wall-system devices combining Claro finish coordination, 15A tamper-resistant duplex receptacle function, dual USB-C charging, and 120V branch-circuit integration. For contractors, specifiers, and facilities teams, these listed receptacles include charging electronics that require planning for output allocation, thermal behavior, box depth, and upstream protection before rough-in. Addressing those factors in the schedule and installation process supports cleaner turnover, fewer callbacks, proper device fit, consistent finishes in multi-gang layouts, and fewer complaints about slow charging.

This guide focuses on the details that actually change outcomes on professional projects: how to interpret per-port versus combined USB-C output, what concurrent-load behavior can look like in the field, how installation conditions influence sustained performance, and how to keep finishes aligned across the Claro wall ecosystem. It also maps a practical selection workflow that helps teams standardize the right SKUs by location and use pattern, control substitutions with measurable equivalency criteria, and procure confidently for high-unit-count deployments where small errors multiply quickly.

Scope, Assumptions, and Reader Baseline

What This Guide Covers and What It Does Not

This guide addresses Lutron Claro USB-C duplex receptacles as building products, meaning devices that must be scheduled, procured, installed, inspected, and serviced like any other branch-circuit component. The emphasis is on specification-grade decision making: understanding charging behavior in negotiated protocols, interpreting ratings that change under multiport loading, coordinating upstream protection requirements, and avoiding mechanical and thermal conflicts in real wallboxes. The intent is to help professional readers create predictable outcomes across repeat rooms and high-unit-count projects, where a small oversight multiplies into expensive rework. Discussions focus on the friction points that most often create punchlists, callbacks, and substitution battles.

What this guide does not do is provide an introductory tutorial on USB-C history, basic receptacle wiring, or general code education. It assumes familiarity with reading manufacturer cut sheets, executing standard receptacle installation practices, and coordinating with electrical drawings and device schedules. When a behavior is model-specific, the guide describes what to verify rather than implying the behavior is universal. The goal is a framework that supports defensible scheduling and submittal review, not a generic overview.

Definitions That Keep Specs and Field Work Aligned

A few definitions prevent confusion that often shows up late in procurement. “USB-C receptacle” refers to an in-wall device with an AC duplex receptacle and integrated USB-C charging ports, not a plug-in charger or a furniture power module. “USB Power Delivery” (USB-PD) refers to negotiated charging where the source advertises supported power profiles and the sink requests one of those profiles based on device state and cable capability. “Per-port power” describes maximum output available to a single USB-C port under stated conditions, while “combined power” describes the maximum available across all USB ports simultaneously.

These terms matter because most field complaints are really mismatched complaints. A user expects laptop charging at full speed, but the installed device is optimized for phones and tablets, or the combined power under dual-port loading is lower than expected. A facility team expects consistent charging behavior across rooms, but the installed environment differs due to box depth, insulation, or adjacent heat sources. Treating these definitions as schedule fields makes performance expectations auditable and helps eliminate subjective troubleshooting later.

Product Family Overview and SKU Structure

Claro Ecosystem and the Value of Consistency

Claro USB-C receptacles are typically specified as part of a broader wall-device package where the owner expects consistency across dimmers, switches, and receptacles within the same gang and across a building. In that context, aesthetic consistency becomes a performance issue indirectly because multi-gang layouts drive mechanical depth, conductor routing, and thermal adjacency constraints. A receptacle that looks aligned on paper may create field problems when installed next to high-wattage dimmers or in tight retrofit boxes. Treating the USB-C receptacle as a “wall system component” encourages early coordination on box selection, device placement, and plate strategy.

Consistency also matters operationally. Facilities teams benefit when the wall device inventory is standardized by family and finish, because spares are easier to stock and replacements are less likely to introduce visible mismatch. Standardization also improves procurement outcomes, since distributors can be held to a precise schedule rather than substituting visually similar devices with different charging behavior. The result is fewer room-to-room performance variations and fewer “why does this room charge slower” complaints.

Ordering Attributes That Prevent Silent Errors

USB-C receptacles are frequently mis-ordered when schedules list only port count and omit exact SKU, finish, tamper-resistant requirement, 120V rating, wallplate family, charging-output expectations, and box-fit constraints. A robust device schedule should explicitly identify port configuration, tamper-resistance requirements where applicable, and the intended finish and plate family. For example, the BuyRite Electric listings for these Claro variants describe tamper-resistant duplex receptacles with dual USB Type C ports and list the input voltage as 120V, with common physical dimensions (height 1.8 inches, width 2.9 inches, length 4.7 inches). Those details are useful for coordination, but they do not replace confirming full electrical ratings and installation constraints in the manufacturer documentation used for submittals.

Ordering discipline should also anticipate packaging quirks. Some channels sell device-only, while others bundle plates or promote kits that appear comparable but do not match the project’s plate strategy. The simplest control mechanism is to schedule device SKUs and wallplate SKUs separately unless a project is intentionally kit-based. If alternates are allowed, equivalency must include combined USB output and allocation behavior, not only appearance and port count.

Electrical Performance and USB-C Power Delivery Behavior

Negotiated Charging Is a System Behavior, Not a Port Feature

USB-C charging behavior is negotiated between the source (the receptacle) and the sink (the device), mediated by the cable. Even when both sides support USB-PD, the device may choose different profiles depending on battery temperature, state of charge, firmware limits, and the power budget it detects. That means identical receptacles can produce different charging outcomes across device models, especially across laptop families that implement proprietary optimizations or conservative charging logic. In professional deployments, the goal is not to guarantee a single device’s peak charging speed but to provide predictable behavior across a known device population.

USB-IF guidance shows that cable capability is a practical variable that influences field outcomes. more often than many teams expect. A cable that cannot support a requested current or does not present the required capability information can force fallback to a lower profile even when the receptacle and device support higher power. In high-turnover environments like hospitality or multi-family, user-provided cables vary wildly, so charging complaints should be expected unless expectations are managed. The most effective mitigation is to specify and deploy charging output appropriate to the space’s intent, and to document expected behavior boundaries for facilities teams.

Rating Interpretation: Per-Port, Combined, and Concurrent-Load Allocation

A cut sheet headline wattage does not fully describe multiport behavior. Many devices provide a maximum output that applies only when one USB-C port is active, while the total available under dual-port loading is lower and split according to fixed or dynamic rules. That difference becomes visible when users charge two devices simultaneously, such as a phone plus tablet at a bedside or a laptop plus phone at a workstation. If the schedule does not define combined power requirements and allocation expectations, the installed product may be correct by catalog description yet still fail the owner’s functional intent.

A practical way to avoid mismatch is to translate the expected device use into power requirements and concurrency assumptions. For phone-dominant spaces, combined output constraints are less likely to be noticed because phones often draw less than the available budget. For laptop-expected locations, combined output becomes critical because a laptop can consume the entire available budget, leaving little for a second device. A specification that explicitly defines “laptop-expected locations” and assigns a higher-output device class to those locations typically produces far fewer complaints than trying to use one receptacle type everywhere.

Sustained Output and Thermal Foldback Must Be Treated as Design Inputs

In-wall USB-C receptacles convert AC to regulated DC and dissipate heat in the process. Sustained high output creates a steady thermal load that must be rejected into the wallbox, device yoke, and surrounding cavity. In favorable conditions, the device can maintain near-nameplate output. In constrained conditions, devices may reduce output to protect internal components, a behavior commonly experienced as slow charging after a period of sustained use. This should be treated as normal protective behavior in electronics, not as an automatic defect.

Thermal planning is most important in high-density gangs and in retrofits with shallow boxes. When a USB-C receptacle is installed adjacent to dimmers or other electronic controls, compounded heat can raise internal temperatures and increase the likelihood of foldback. Mechanical conductor congestion can also trap heat behind the device body, reducing dissipation. The engineering approach is to anticipate sustained high-use locations and provide adequate box volume and gang layout planning rather than hoping the device behaves like a passive receptacle.

Listings, Standards, and Code-Driven Constraints

Listing Documentation and Installation Instructions Are Enforceable Constraints

With integrated electronics, the listing mark and installation instructions must be treated as part of the spec package, not merely informational. Submittals should include the exact cut sheet and installation instructions for the offered SKU, and review should confirm that the device is listed for the intended application and can be installed as required in the chosen wallbox and assembly. This approach prevents late surprises where a device is physically installable but not compliant with the project’s environment or the manufacturer’s constraints. It also strengthens substitution review, since alternates must demonstrate equivalent listing and installation conditions.

Retail product pages often summarize only a subset of information. For example, the BuyRite pages for these Claro variants confirm that they are tamper-resistant duplex receptacles with dual USB Type C ports and list 120V input along with shared dimensional details. Those are useful for coordination and purchasing verification, but they do not substitute for the complete performance and installation requirements typically found in official manufacturer documentation. A professional submittal process should insist on the manufacturer’s documents as the basis for compliance.

Location-Based Requirements Drive Device Selection and Scheduling

NEC requirements for receptacles vary by occupancy and location. In many projects, tamper-resistant requirements and upstream protection requirements such as GFCI and AFCI are the primary differentiators that impact which receptacle SKUs can be used in which spaces. That variability is often underestimated when teams attempt to standardize a single receptacle across kitchens, baths, garages, and general living spaces. The correct professional approach is to encode those constraints into the device schedule and to treat the upstream protection plan as a design attribute that influences device selection.

Scheduling should include location categories and protection notes that correspond to plan locations, especially when the project also requires coordinated breaker protection. This avoids jobsite debates and reduces the risk of installing the wrong device variant in a protected location. It also helps procurement understand that “same appearance” does not mean “same compliance.” When the schedule is explicit, inspection outcomes are smoother and corrective work is minimized.

Mechanical Envelope, Box Fit, and Box Fill Engineering

Depth and Clearance Are Early-Phase Decisions, Not Trim-Day Surprises

Integrated USB-C receptacles are often deeper than conventional receptacles due to the conversion electronics. Depth becomes critical in renovations where shallow boxes, masonry walls, and existing conduit conditions limit available volume. If depth is not verified early, trim crews can be forced into conductor compression and awkward bends that prevent devices from seating flush. Those conditions then propagate into misaligned plates, stressed terminations, and increased risk of intermittent behavior. Depth verification should be completed during device scheduling and rough-in coordination because USB-C receptacles are deeper than conventional duplex devices and can create proud devices, conductor compression, or plate misalignment in shallow boxes.

Retail listings can help establish baseline geometry for planning. The BuyRite listings for the Snow White, Brilliant White, Glacier White, and Black variants list common physical dimensions (height 1.8 inches, width 2.9 inches, length 4.7 inches). Those values support initial box fit checks, especially in standardized room layouts where consistent mounting conditions exist. The design team should still validate device depth requirements and conductor space needs using the official installation instructions and a representative mockup when risk is high.

Box Fill Compliance Versus Practical Conductor Management

Box fill compliance is required, but practical conductor management is what determines whether the install is clean and serviceable. A crowded box may be code compliant yet still create poor outcomes if conductor bundles press against the device body, limit seating, or trap heat. This is especially likely in multi-gang layouts with multiple devices, travelers, and feed-through conductors. Conductor routing should be planned so that the device body has clearance and conductors are not forced into high-stress bends. A disciplined approach reduces both aesthetic issues and the likelihood of long-term intermittent behavior.

Multi-gang density requires special attention when a USB-C receptacle is adjacent to heat-generating controls. Heat plus conductor congestion can push the device into thermal foldback and can also reduce termination longevity if resistive heating is present. If multi-gang density is unavoidable, mitigation should include larger box volume, careful conductor bundling, and sometimes a layout adjustment that separates high-heat devices. Investing in box selection and layout planning early is often cheaper than correcting finish issues and device seating problems during closeout.

Terminations, Wiring Methods, and Field QA

Termination Discipline and Torque Control

Termination quality is a reliability driver for all receptacles, but integrated electronics raise the stakes because heat and sustained load can amplify the consequences of marginal connections. Proper strip length and correct torque should be treated as mandatory, not assumed. Under-torque can increase resistance and localized heating, and over-torque can damage termination mechanisms. In high-volume projects, periodic torque audits help maintain consistency across crews and reduce the likelihood of intermittent issues that are difficult to diagnose later.

Professional QA should also confirm conductor compatibility for the specific receptacle SKU. Conventional assumptions about conductor gauge and type do not always hold across electronic receptacle variants. When stranded conductors are used, compatibility must be confirmed and documented. Clear installation notes that reflect the offered product’s requirements reduce jobsite improvisation and prevent rework triggered by unexpected termination constraints.

Pigtailing, Serviceability, and Grounding Practices

Pigtailing is often a serviceability advantage for deeper electronic receptacles. It allows the receptacle to be removed without disturbing downstream feed-through conductors and simplifies replacement if a port is damaged or a device needs to be swapped due to a finish change. Pigtailing also helps manage conductor routing in crowded boxes, improving seating and reducing mechanical stress on terminations. While it adds labor, it frequently reduces trim-day difficulties and lowers the chance of stressed device seating.

Grounding and bonding should be executed with the same rigor as terminations, especially in metal boxes. The device yoke must be properly bonded, and grounding paths should be consistent across the project. Functional testing should include verifying AC receptacle operation and USB-C charging behavior with a known-good cable and a PD-capable device. A small sampling test strategy across a building can identify systemic issues early, such as a recurring box-depth conflict or a termination practice problem.

Thermal Management and Derating in Real Installations

Why Thermal Performance Changes in Wallboxes

USB-C receptacles dissipate heat during conversion, and the wallbox environment often restricts heat rejection. The device’s ability to sustain output depends on ambient temperature, box material, conductor density, insulation contact, and proximity to other heat sources. Short-duration charging often finishes before thermal equilibrium is reached, masking potential issues. Sustained high-load charging, such as laptops connected for hours, is where thermal limits become visible. If the environment is constrained, output reduction can occur to protect the device.

The risk increases in multi-gang clusters and in assemblies that trap heat. A USB-C receptacle installed next to dimmers or other electronic controls can see compounded thermal load. Conductor bundles pressed tightly behind the device further reduce dissipation. For professional outcomes, thermal behavior should be anticipated as a design input, not treated as an unpredictable defect.

Mitigation Strategies That Actually Work on Real Jobsites

The best thermal mitigation strategies are deeper boxes, cleaner conductor routing, reduced multi-gang heat density, separation from dimmers where possible, and avoiding high-demand USB-C charging locations in tightly packed wall assemblies. Increased box volume and depth improve both seating and thermal conditions by reducing conductor pressure behind the device and improving heat conduction pathways. Gang layout adjustments can reduce compounded heat by separating high-heat devices where possible. Conductor management practices, including disciplined bundling and pigtailing, can keep conductor mass away from the device electronics housing. These strategies reduce the likelihood of thermal foldback and improve sustained charging performance.

Placement engineering is another powerful lever. If laptops are expected to charge at certain locations, those locations should be designed with higher-output capability and better thermal conditions, rather than assuming every wall receptacle must support the heaviest load. For high-demand charging in constrained wall assemblies, furniture power or dedicated charging points can provide better performance with less thermal stress. This approach also reduces service burden, since fewer high-demand points need to be maintained at top performance.

Finishes, Plates, and Aesthetic Coordination

Finish Families and Why They Matter in Specifications

Finish coordination is often treated as cosmetic, yet it functions as a procurement control strategy and a closeout risk reducer. In multi-gang layouts, even minor variations in sheen, undertone, or molded texture become apparent under uniform corridor lighting. Standardizing within the Claro device family aligns receptacles with matching wall controls and compatible plate series, reducing the risk of mixed whites or inconsistent gloss levels. Scheduling must therefore reference exact SKUs and finish codes to prevent substitution drift or batch inconsistency across procurement channels.

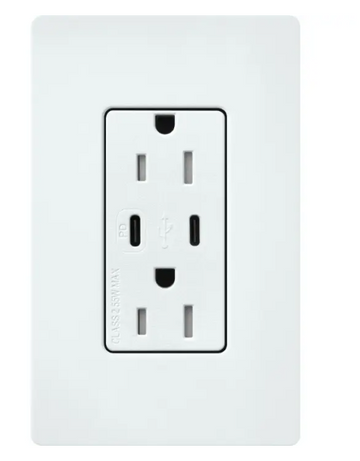

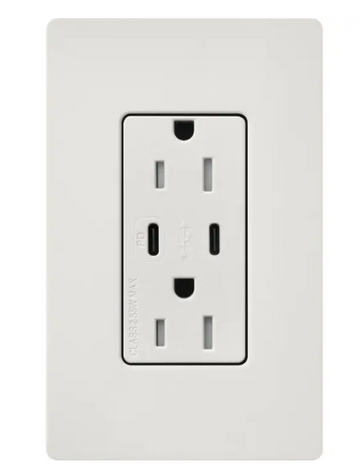

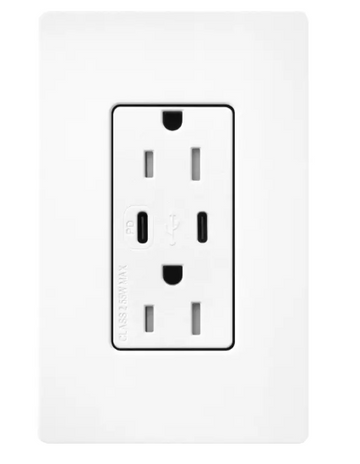

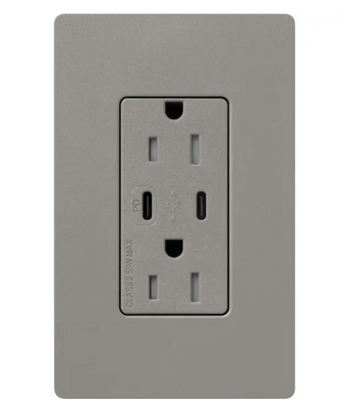

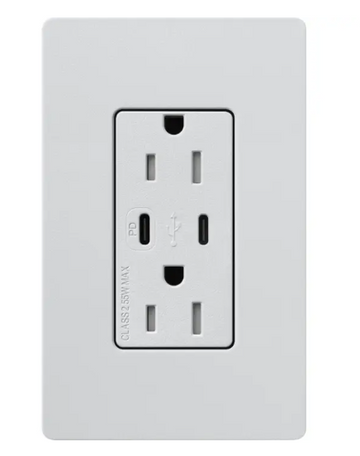

The finish schedule should identify each device by exact part number. This includes SCR-15-CCTR-SW for Snow White, SCR-15-CCTR-BW for Brilliant White, SCR-15-CCTR-GL for Glacier White, and CAR-15-CCTR-BL for Black. BuyRite’s product listings confirm these finish designations and corresponding SKUs. Calling out devices strictly by SKU and finish eliminates ambiguity in ordering and supports a consistent appearance across rooms, corridors, and public spaces.

Product Mentions and Finish Selection in Real Schedules

For procurement clarity, device schedules should reference the exact SKU associated with the specified finish and maintain consistency across the full wall-device package. The Lutron SCR-15-CCTR-SW Claro 15A Tamper-Resistant USB Type-C Duplex Receptacle, Snow White should be used where Snow White is the project standard and a 15A tamper-resistant duplex receptacle with integrated USB Type-C charging is required. Product information published by BuyRite Electric supports identifying this selection by its full SKU and finish, while subsequent construction-document references can remain SKU-based to preserve schedule consistency.

In darker interior palettes, feature-wall conditions, or hospitality environments where wiring devices are intentionally visible, the Lutron CAR-15-CCTR-BL Claro 15A Tamper-Resistant USB Type-C Duplex Receptacle, Black supports coordination with black wall plates, hardware, and adjacent finish elements. Finish options documented through BuyRite Electric also include the Lutron SCR-15-CCTR-BW Claro 15A Tamper-Resistant USB Type-C Duplex Receptacle, Brilliant White, which is appropriate where the project standard calls for a brighter white finish while maintaining the same Claro 15A tamper-resistant duplex receptacle format with integrated USB Type-C charging. The Lutron SCR-15-CCTR-GL Claro 15A Tamper-Resistant USB Type-C Duplex Receptacle, Glacier White, provides another controlled white-family option for projects where Glacier White better matches surrounding Claro wall devices, plates, or interior finish palettes.

Formal project specifications should translate these selections into explicit schedule language, including a requirement such as “No substitutions in finish without written approval.” A defined wall-plate series should also be stated to maintain consistent device-to-plate alignment throughout the project.

System Compatibility and Application Engineering

Placement Logic by Use Pattern and Device Population

Application engineering should begin with the expected device population and how occupants actually charge devices in each space. In phone-dominant locations such as entryways and corridors, moderate output and low concurrency expectations often produce good user satisfaction. In bedside and workstation environments, concurrency is common and sessions are longer, which makes combined power allocation and sustained output more visible. If the design assumes laptop charging, the schedule should differentiate those locations and select a device class that is appropriate for higher sustained demand. Without that differentiation, a single “standard” USB-C receptacle can produce uneven outcomes across spaces.

Placement should also consider access and serviceability. Ports hidden behind headboards, built-ins, or fixed furniture create service burdens and can result in users applying mechanical stress to cables and ports. In hospitality and multi-family, these issues scale quickly due to repeat rooms. A practical approach is to coordinate receptacle placement with furniture plans and to keep high-interaction charging ports in locations that support clean cable routing and easy access.

Coordination with Wall Controls and Multi-Gang Ergonomics

When USB-C receptacles share gangs with lighting controls, the layout should be treated as a human-factors and thermal-coordination problem, not just a drafting exercise. Frequent plugging and unplugging can cause accidental activation of adjacent controls if spacing and placement are not considered. Cable routing can interfere with paddle switches or dimmer operation if the receptacle is placed too close to a high-interaction control. Ergonomics matters most in standardized templates where a small annoyance becomes a frequent complaint. Control layouts should keep high-interaction devices in positions that minimize conflict.

Thermal adjacency is the second reason to coordinate wall layouts. Dimmers and electronic controls produce heat, and the addition of an in-wall USB-C converter adds more heat under load. In tight multi-gang conditions, combined heat can reduce sustained charging performance. If separation is not possible, deeper boxes, disciplined conductor routing, and careful device placement within the gang reduce compounded thermal stress. These are straightforward design decisions that prevent “works sometimes” behavior after occupancy.

Specifying Workflow and Selection Matrix

A Deterministic Workflow for Selecting the Right Variant

A reliable workflow starts with compliance and location constraints, then moves to performance requirements, and finally locks down finish and procurement controls. Location determines whether tamper-resistant features are required and what upstream protection is expected. Performance requirements should be translated into device intent: phone-centric versus laptop-expected, single-user versus dual-user concurrency, and typical session duration. These factors drive combined output requirements and tolerance for power-sharing behavior under dual-port loading. Once performance and compliance are defined, finish selection becomes a controlled attribute aligned with the Claro wall system.

This workflow also supports clean submittals. The schedule can explicitly call out required port configuration, required listing and protection compatibility, and finish code. Substitutions can be evaluated against those requirements using measurable criteria rather than subjective claims of equivalence. A workflow approach also helps owners understand that not all USB-C receptacles are intended for all device populations, which reduces pressure to overspecify every location and keeps costs aligned with actual usage.

Selection Matrix Inputs and How They Translate Into Schedules

A selection matrix is the easiest tool for preventing schedule ambiguity and procurement drift. The matrix should capture the variables that actually change outcomes:

• Location category: living space, kitchen, bath, corridor, garage, exterior-adjacent
• Protection expectations: TR required, GFCI required, AFCI required, combined protection required
• Charging intent: phone-only, phone plus tablet, laptop expected, mixed heavy use
• Concurrency: one port typical, two ports frequent
• Mechanical constraints: shallow box risk, high conductor density, multi-gang thermal adjacency
• Finish and plate requirements: finish code, plate series, multi-gang plate strategy

Once inputs are captured, schedules can be generated with explicit device assignment rules. Laptop-expected locations can be assigned a higher-output device class and deeper box requirements, while phone-centric locations can use a standard device without exposing the project to avoidable cost and thermal stress. Finish strategy can be tied to room type or project zone, ensuring consistent aesthetic outcomes without repeated procurement adjustments.

Installation Details That Commonly Cause Rework

Rough-In and Trim Decisions That Cascade Into Punchlists

Rework often begins with rough-in decisions that ignore device depth and conductor volume. If shallow boxes are installed where deeper USB-C receptacles are scheduled, trim crews can be forced to compress conductors behind the device, resulting in proud devices, warped plates, and stressed terminations. In multi-gang installations, even small mis-leveling becomes obvious when a single plate covers multiple devices. These issues tend to show up late, when correction is disruptive and expensive. Box selection and leveling should be treated as critical rough-in quality items for any room template that includes USB-C receptacles.

Another frequent rework driver is inconsistency in termination and conductor routing practices. If crews vary strip length, torque, or conductor arrangement between units, outcomes vary even with identical products. That variability becomes visible as intermittent charging complaints or inconsistent device seating. A standard installation method, validated on the first unit of each template, reduces variability and improves overall quality. A small investment in early QA often eliminates the long tail of minor issues that drain time during closeout.

Troubleshooting Slow Charging Without Guesswork

A structured troubleshooting approach prevents unnecessary replacements and resolves most charging complaints quickly. The first step should validate the cable with a known-good, appropriately rated USB-C cable, because cable limitations can trigger fallback behavior. The second step should test a known PD-capable device and observe how charging behavior changes when the second port is loaded, which reveals combined power constraints and allocation behavior. The third step should consider thermal effects by repeating the test after sustained operation, since thermal foldback often appears only after the device reaches steady-state temperature. These steps isolate common causes before any device is swapped.

If upstream protection devices are involved, troubleshooting should confirm whether there are nuisance trips or correlated behavior with other electronic loads on the circuit. Intermittent loss of USB power can be misinterpreted as a charging failure when the real issue is circuit behavior or protection coordination. Documentation should be used to confirm installed SKUs and location requirements, avoiding troubleshooting against the wrong device variant. A disciplined approach reduces labor waste and improves owner confidence in the installed system.

Reliability, Failure Modes, and Service Strategy

Stressors That Drive Field Failures and Service Calls

Reliability outcomes are shaped by thermal cycling, connector wear, and mechanical stress from repeated insertion and side loading. In hospitality and high-turnover multi-family environments, ports see high usage and frequent cable variations, increasing the chance of wear-related intermittent contact issues. Sustained high-load charging increases thermal cycling amplitude, which can influence component longevity over time. None of this implies poor product quality, but it does justify treating USB-C receptacles as serviceable components with planned replacement strategies. A building that includes hundreds of these devices should plan for some level of periodic replacement, especially in high-use locations.

Symptoms should be mapped to likely causes to avoid misdiagnosis. Slow charging only when both ports are used often indicates combined output limits or allocation behavior. Slow charging that follows a specific cable often indicates a cable limitation or connector issue. Slow charging that worsens after extended use can indicate thermal foldback influenced by box depth, conductor congestion, or thermal adjacency. A service playbook that recognizes these patterns reduces unnecessary replacements and focuses corrective work on installation conditions when that is the root cause.

Standardization, Spares, and Documentation for Efficient Maintenance

Standardization reduces service complexity. If a project standardizes on a small set of SKUs by finish and room type, facilities teams can stock fewer spares and perform replacements quickly without aesthetic mismatches. As-built documentation should include exact part numbers and finishes, not generic “USB-C receptacle” labels. This is especially important when multiple finishes are used across zones or when procurement substitutions were approved in limited areas. Clear documentation prevents a common failure mode in maintenance, which is ordering a visually similar device that does not match finish or behavior.

Service strategy should also include operational guidance for facilities teams. A short technical handoff note can clarify that charging behavior depends on device negotiation and cable capability, and that simultaneous use may reduce per-port delivery based on allocation rules. This reduces false failure reports and helps maintenance teams triage issues more effectively. Where the project is large, a periodic sampling test of representative rooms can identify systemic issues early, such as recurring shallow box conditions or conductor congestion patterns.

Procurement, Ordering, and Substitution Control

Ordering Discipline That Survives Hand-Offs and Distributor Interpretation

Procurement success depends on eliminating ambiguity in schedules, especially on projects where electrical product coordination affects long-term performance. Ordering language should specify exact SKU, finish, tamper-resistance requirement, and plate series, plus any location-based requirements that impact selection. Without explicit schedule fields, distributors can supply devices that appear similar but differ materially in combined output and allocation behavior. Channel consistency also matters, as mixed sourcing can lead to finish variation and inconsistent warranty handling. For professional projects, controlled sourcing through trusted distribution pathways generally reduces schedule risk and improves closeout quality.

Receiving inspection should verify labeling and finish against the schedule before devices are distributed to the field. This is particularly important in projects that mix Snow White, Brilliant White, Glacier White, and Black across different zones. It is far cheaper to catch finish or SKU errors at receiving than to discover them after installation. A disciplined procurement process also supports faster submittal review, since offered products can be validated against the schedule’s measurable requirements rather than subjective claims.

Substitution Control Based on Measurable Equivalency

If substitutions are allowed, equivalency must be defined in measurable terms. At minimum, alternates should match listing compliance for the intended environment, port configuration, and documented USB-PD capability. Combined output and concurrent-load allocation behavior must be stated clearly, because those factors drive user experience differences more than cosmetic similarity. Mechanical depth and installation constraints should be included in equivalency requirements because deeper alternates can trigger widespread box fit failures. A substitution that creates shallow-box conflicts is rarely a true equivalent in a real project.

Substitution documentation should include the cut sheet, installation instructions, and a declaration of combined output and allocation behavior under dual load. If finish coordination is part of the project requirements, alternates must demonstrate finish compatibility with the specified wallplate system or be restricted to back-of-house locations where aesthetics are not critical. Clear equivalency language reduces negotiation cycles and protects the project from silent downgrades. It also gives contractors a fair, transparent framework for proposing cost-saving alternates without undermining the owner’s functional intent.

Spec Language and Submittal Package Templates

Spec Language That Enforces Performance Without Becoming Overwritten

Effective spec language should be concise and enforceable. It should define the device category as a listed decorator-style duplex receptacle with integrated dual USB Type C ports, require tamper resistance where applicable, and require USB-PD capability consistent with the project’s charging intent. It should state minimum per-port and combined output requirements and require that the product’s multiport allocation behavior meets the scheduled intent for concurrent use. Installation should be required per manufacturer instructions, including box depth, conductor requirements, and any thermal or spacing constraints that are stated as installation conditions.

Finish and plate requirements should be explicit schedule fields. The spec should require coordination with the Claro wallplate series and the project’s finish codes, and it should prohibit substitutions in finish without written approval. Clear finish language prevents a common closeout issue where a functionally acceptable device creates aesthetic inconsistency across a corridor or a stack of identical units. Concise spec language also helps submittal review stay focused on measurable compliance rather than marketing claims.

Submittal and Closeout Templates That Reduce Project Friction

A strong submittal template should require a complete package for each scheduled device: manufacturer cut sheet, installation instructions, listing documentation reference, and a device schedule mapping SKUs and finishes to locations. The schedule should include location-based protection assumptions where relevant, such as notes indicating where GFCI or AFCI protection is expected upstream. This allows reviewers to catch mismatches early and gives installers a clear roadmap without relying on field interpretation. The template should also require identification of any proposed substitutions and the equivalency documentation that supports them.

Closeout documentation should include an as-built receptacle schedule listing exact SKUs, finishes, and room or area assignments. This supports fast maintenance response and prevents ordering errors years later. A short technical note for facilities teams can outline expected behavior boundaries, including the influence of cable capability and the effect of simultaneous USB loads on per-port output. This is not end-user education; it is an operations artifact that reduces misdiagnosis and prevents unnecessary device replacement. When submittals and closeout are handled with this level of discipline, the installed outcome is more consistent, and lifecycle service becomes markedly easier.

Final Thoughts

Lutron Claro USB-C receptacles should be specified as part of the complete wall-device package, with exact finish, SKU, plate family, box depth, protection requirements, and charging-performance expectations documented before procurement. When the schedule captures the real decision variables, including location-driven code requirements, per-port versus combined USB-C output, concurrent-load allocation, and box-fit constraints, the installed outcome becomes predictable and repeatable. That predictability is what reduces the two most common post-occupancy problems: charging complaints that are really power-sharing or cable issues, and trim-level defects caused by shallow boxes, conductor congestion, or inconsistent termination practice.

The buying decision ultimately comes down to matching intent to installation conditions. Phone-centric locations can be standardized efficiently, while laptop-expected locations deserve deliberate power budgeting and better thermal conditions, whether through deeper boxes, smarter gang layouts, or alternative charging points where the wall cavity is unfavorable. Pair that technical selection with disciplined finish control across Snow White, Brilliant White, Glacier White, and Black, and procurement becomes easier, substitutions become easier to evaluate, and maintenance becomes simpler years later. If the objective is a wall solution that looks unified, performs consistently, and stays serviceable across repeated rooms, Claro USB-C receptacles can fit cleanly into that strategy when specified and installed with the same rigor applied to any other branch-circuit component.
