Lotus LED Lights Tangra Series: Everything You Need to Know Before Buying

• Lotus Tangra is a modular 3-inch recessed LED system with fixed or gimbal aim, round or square apertures, and wide-trim or deep-regressed trims.
• Tangra optics include clear-glass reflector, frosted-glass reflector, and white or black lens-reflector stacks that change beam texture and glare performance.
• Tangra engine options include fixed 3000K up to CRI 98, 5CCT selectable 2700–5000K, and dim-to-warm 3000–1800K; drivers enable Triac or 0–10V.

The Tangra Series should be treated as a configurable 3-inch recessed lighting platform where trim shape, aiming type, optic stack, beam angle, LED engine, driver, and commissioning settings all affect the installed result. The platform logic is visible immediately in the way Tangra is marketed and documented: multiple trim geometries (round and square, thin and wide), fixed and gimbal variants, multiple optical stacks (lens and reflector families with different glass treatments), and several LED engine choices including high color fidelity options. Tangra’s own catalog emphasizes that the family is built around six LED options, multiple lens and reflector choices, five beam angles, and power selectable drivers.

For professional teams, the decision to adopt Tangra is usually less about whether the product can meet a target illuminance and more about whether it can stay consistent across design intent, procurement, installation, and commissioning. The “platform” approach introduces flexibility, but it also introduces failure modes if the schedule does not control configuration identity, driver selection, and commissioning settings. Tangra’s catalog makes it clear that those variables are expected to be used, not ignored, with explicit references to interchangeable beams, selectable LED options, and 11 W or 15 W power selection through the driver.

Executive Technical Brief

What Tangra is trying to solve in real projects

Tangra is positioned as a premium compact-aperture recessed family with unusually broad option density for its form factor, especially for projects already comparing compact recessed LED options, including gimbal adjustability, refined finish sets, and ultra-high CRI selections. The official Tangra catalog highlights 26 trim options and calls out high color fidelity up to 98 CRI, plus multiple optical and beam choices intended to “sculpt light precisely where it’s needed.” In practical terms, that signals an intent to compete in applications where visual comfort, beam discipline, and surface rendering matter as much as raw lumen output.

What differentiates Tangra operationally is that it expects the specifier to treat it as a controlled system rather than a one-line item. Tangra’s published framework explicitly lists selectable LED engines, reflector and lens stacks, and a defined beam family (20°, 24°, 36°, 50°, 60°). That kind of “declared option architecture” is valuable because it allows the schedule to be both flexible and defensible, assuming it is written in a way that keeps configuration identity locked through procurement and commissioning.

Procurement watch-outs that matter before buying

The first procurement watch-out is configuration drift. Many Tangra variants look similar in a carton but are not photometrically or visually equivalent once installed, especially when reflector glass treatments or lens types differ. A clear example is how BuyRite product listings distinguish reflector with clear glass, reflector with frosted glass, lens reflectors, and beam-angle choices across similar “wide trim” gimbal and fixed families.  If a jobsite swaps “close enough” optics or beams, the space may still light up but it will not match calculated distributions, contrast targets, or glare expectations.

The second watch-out controls alignment, including dimming protocol and commissioning discipline. Several BuyRite Tangra listings explicitly call out 11 W or 15 W selectable power, driver-dependent voltage domains (120 V vs 120–347 V), and specific phase-dimming minimums for certain configurations.  Tangra can support both residential-style dimmer ecosystems and commercial control narratives, but only if the driver and control protocol are specified per zone, and only if wattage mode and CCT settings are treated as commissioning deliverables rather than installer discretion.

Product Family Architecture and SKU or Nomenclature Decoding

Family map and where the requested SKUs sit in it

Within Tangra’s broader trim ecosystem, the relevant configurations can be organized into three defined subfamilies: 3-inch gimbal wide-trim options in round and square formats, 3-inch fixed recessed wide-trim options in round format, and 3-inch fixed square deep-regressed wide-trim options. The gimbal wide-trim variants add directional aiming capability while retaining the expanded aperture presence and shielding characteristics associated with the wide-trim format.

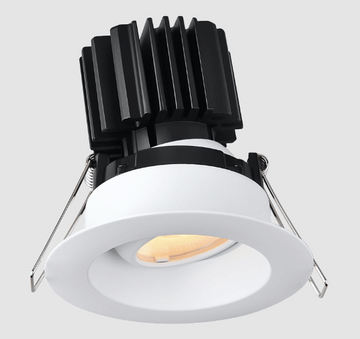

The Lotus L3G-RRW-WH-RF50-3K98 Tangra 3" Gimbal Round Recessed Wide Trim is presented in the linked BuyRite Electric product listing as a 3000K configuration with a 50° beam angle and CRI 98 color rendering. Its white trim and frosted-glass reflector create a softened beam texture, making it suitable for applications where high color fidelity and smoother beam edges are preferred.

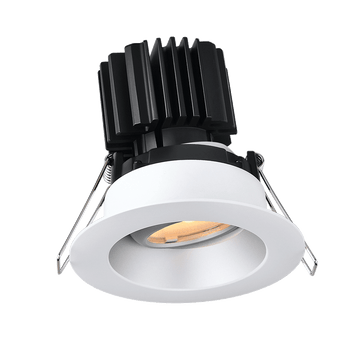

For dim-to-warm applications, the Lotus L3G-RRW-AZ-LW36-1895 Tangra 3" Gimbal Round Recessed Wide Trim pairs a 3000K-to-1800K warm-dim engine with a 36° beam distribution. Product details for this configuration note an Alzak trim, white lens reflector, and CRI 95 performance, supporting use in dining areas, lounges, and hospitality interiors where controlled warm-tone transitions are part of the lighting strategy.

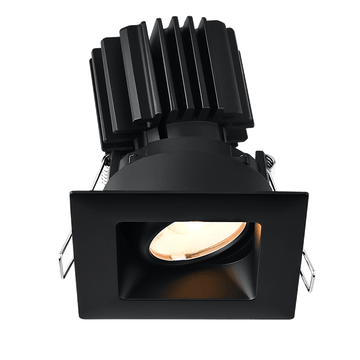

Square gimbal wide-trim selections include both commissioning-flexible and warm-dim configurations. The Lotus L3G-SRW-BK-RC36-5C98 Tangra 3" Gimbal Square Recessed Wide Trim is appropriate for projects requiring field-adjustable color temperature. The linked BuyRite Electric product page lists 5CCT selectable output, 36° beam distribution, CRI 98 performance, black trim, and a clear-glass reflector, providing flexibility during commissioning while maintaining high color quality.

For hospitality and residential settings that call for warmer low-level scenes, the Lotus L3G-SRW-BK-LB50-1895 Tangra 3" Gimbal Square Recessed Wide Trim integrates a 3000K-to-1800K dim-to-warm engine with a broader 50° beam. The listing references CRI 95 performance, black trim, and a black lens reflector, positioning this configuration for lounge-style spaces where darker aperture detailing and warmer tonal shifts are desired.

How to decode the naming and prevent schedule errors

Tangra SKU strings function as embedded specification data because they identify fixture family, trim configuration, optical package, beam angle, finish, CCT behavior, and CRI tier. In this structure, “L3G” designates a 3-inch gimbal family, while “L3F” designates a 3-inch fixed family. These prefixes immediately distinguish adjustable versus fixed optical orientation, which has direct implications for aiming strategy and glare control.

The Lotus L3F-SDW-WH-LW50-3K98 Tangra 3" Fixed Square Deep Regressed Wide Trim belongs in the glare-control discussion because it combines a deep-regressed square aperture with a 50° beam, white trim, white lens reflector, 3000K CCT, and CRI 98 performance. Specifications published by BuyRite Electric describe this configuration as a deep-regressed square trim intended to increase shielding relative to standard wide-trim apertures. The white lens reflector further moderates aperture brightness and promotes a softer beam appearance. In applications with reflective finishes or shallow viewing angles, this configuration can improve visual comfort while maintaining high color fidelity.

The Lotus L3F-RRW-WH-RC-50-5C95 Tangra Fixed Round Recessed Wide Trim. The product listing notes a 50° beam, white finish, clear-glass reflector, multi-color-temperature selectable output, and CRI 95 performance. Because the clear-glass reflector produces a more defined beam pattern than frosted or lens-based optics, the configuration is well suited to general illumination applications where stronger beam articulation is acceptable and commissioning flexibility is desired.

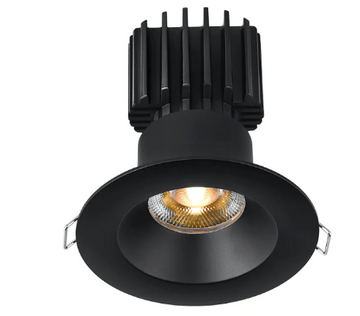

The Lotus L3F-RRW-BK-RC24-5C95 Tangra 3" Fixed Round Recessed Wide Trim extends the fixed round 5CCT family into a black-finish, 24° beam build. With a clear-glass reflector and CRI 95 performance, it is a tighter, more accent-oriented companion to the 50° white configuration above.

Mid-string optic codes communicate critical performance distinctions. “RC” indicates a reflector with clear glass, “RF” indicates a reflector with frosted glass, and “LW” or “LB” denote lens reflectors with white or black lens treatments. These differences materially affect beam texture, aperture luminance, and glare behavior. A 50° beam designation is not inherently equivalent across clear-glass reflector, frosted-glass reflector, or lens-based configurations. In professional schedules, these optic codes should be treated as part of the photometric identity rather than cosmetic variations, as misinterpretation at this level commonly results in late-stage rework when aperture brightness or beam definition does not match design intent.

Delivered Performance Metrics

Delivered lumens, power selectability, and what “up to” signals

Several Tangra listings call out “Lumens: up to 1600” and “Wattage: 11W / 15W selectable,” especially in the fixed round recessed wide-trim 5CCT configurations.  For professionals, “up to” is a useful flag that the number corresponds to a specific set of assumptions: a particular LED engine, a particular optic stack, and a particular wattage mode. Tangra’s catalog reinforces that the platform expects these variations, explicitly stating that drivers are power selectable 11 W or 15 W and that multiple optical stacks exist.

The practical implication is that a Tangra schedule should identify the exact SKU, optic family, beam angle, LED engine, wattage mode, driver type, and commissioning settings rather than relying on aperture size and maximum lumen output. It should be written as a defined configuration at a defined wattage mode, with performance verified via the correct photometric file. This is even more important when mixing engines, such as fixed round 5CCT (multi-CCT) fixtures in circulation spaces and 3000 K CRI 98 fixtures in feature areas. The platform supports that approach, but it needs guardrails so that wattage mode and CCT selection do not drift across a ceiling plane.

Electrical and system-level performance drivers care about

Electrical behavior is where recessed systems either behave like professional luminaires or behave like consumer fixtures wearing a professional trim. In Tangra’s ecosystem as represented in BuyRite listings, voltage and dimming are clearly driver-dependent and are sometimes described as “120V or 120V–347V (driver options).”  This matters because it determines not only what circuits can feed the luminaire, but also what control narratives can be supported without adapters, workarounds, or mixed driver inventories.

A second electrical dimension is dimming performance at the low end. For at least two of the fixed round 5CCT listings, the dimming line reads “3% reverse phase cut / 4% forward phase cut.”  Even when those numbers are accurate in controlled testing, professional teams should still treat them as a starting point. Low-end stability depends on the dimmer or control module, minimum load behavior, branch wiring, and sometimes even the mix of loads on a circuit. The right way to “buy Tangra” is to buy a defined luminaire plus defined driver plus defined control ecosystem, not a luminaire in isolation.

Optical System and Photometrics Deep Dive

Optical stack options and how they change behavior

Tangra is explicitly built around both lens and reflector approaches, and the catalog makes that structural choice visible: high-efficiency lenses for single CCT engines, dual-color lenses for 5CCT and dim-to-warm engines, and reflectors with clear, frosted, and semi-frosted glass covers. The BuyRite listing set mirrors that taxonomy with clear-glass reflector configurations (RC) and frosted-glass reflector configurations (RF), plus lens reflector variants (LW and LB).

For a professional reader, the important point is that these optical families can produce materially different aperture luminance and beam texture even if they share a nominal beam angle. A clear-glass reflector often preserves more punch and sparkle, which can be desirable in accent and merchandise contexts but can raise perceived glare if the ceiling layout is dense. A frosted-glass reflector, such as in the gimbal round 50° CRI 98 configuration, is typically used to soften artifacts and reduce high-angle brightness.  Lens reflectors behave differently again, often smoothing the beam and supporting multi-engine architectures like dim-to-warm, as seen in the Alzak-trim dim-to-warm gimbal round listing.

Beam distributions as an engineering decision, not a preference

Tangra’s catalog defines five beam angles across the platform: 20°, 24°, 36°, 50°, and 60°. The requested products cover several of these, including 20° in the square deep-regressed fixed accent-oriented configuration, 24° in the fixed round recessed wide-trim black finish configuration, 36° in multiple gimbal listings, and 50° in both fixed and gimbal variants.  This spread is useful because it illustrates how Tangra supports both tight, controlled accent beams and broader general distributions within the same platform logic.

Selecting between 24° and 36° should be tied to ceiling height, fixture spacing, aiming intent, and contrast target, much like broader directional lighting placement: 24° supports tighter highlighting, while 36° gives gimbals a more balanced distribution. A 24° distribution can protect contrast and create strong modeling on vertical surfaces, but it can also produce visible scalloping if spacing is aggressive relative to mounting height. A 36° distribution is often a practical middle choice for gimbals, where aiming can address layout constraints while still maintaining beam control. The platform’s 50° options, such as the fixed round recessed wide-trim 5CCT with 50° beam and the gimbal round 50° CRI 98 build, are typically used when smoother horizontal coverage is needed without pushing fixture counts higher.

Photometric verification workflow that prevents surprises

Tangra’s option density makes photometric verification non-optional if the project is expected to perform predictably. The same family can be configured as a clear-glass reflector, a frosted-glass reflector, or a lens reflector, with multiple beam angles and multiple engines. Photometry needs to track the actual configuration, including optic and beam choices, not just the aperture and trim.

A robust workflow usually includes three layers:

1. Configuration control in the schedule,
2. Photometric file control in the calculation model, and
3. Field verification at commissioning.

At the schedule level, the optic code should be considered part of the luminaire identity. At the calculation level, the correct IES file must match the engine and optic selection. At the commissioning level, a sample zone should be checked visually for beam character, scalloping, and glare at typical viewing positions. Tangra supports this disciplined approach precisely because it clearly declares its option architecture, but the project must choose to enforce it.

Color Science and Consistency Control

CRI tiers, high-fidelity intent, and what to request beyond CRI

Tangra is explicitly marketed around high color fidelity, with the catalog calling out ultra-high 98 CRI options and listing multiple CRI 95 and CRI 98 engine pathways. The requested product set illustrates how that plays out operationally: the gimbal round 3000 K 50° frosted reflector configuration is CRI 98, while multiple dim-to-warm variants are CRI 95, and the gimbal square 5CCT configuration is CRI 98.  This is typical of many manufacturers: the absolute highest CRI tiers are often offered in single-CCT or select engine families, while tunable and warm-dim engines may target CRI 95 for stability and performance balance.

For professional projects, CRI should be treated as a baseline, with color-critical zones also requiring spectral data, CCT tolerance, chromaticity consistency, and engine-family control. When a project is color-critical, the spec should request spectral data (or at minimum a manufacturer-provided spectrum test report), and it should define the acceptable range of CCT and chromaticity within a space. Tangra’s platform is engineered to provide multiple engines, so the spec should ensure that each engine choice is deliberate. For example, CRI 98 may be chosen for art, high-end retail, or materials-heavy hospitality spaces, while CRI 95 may be sufficient and sometimes preferable in dim-to-warm environments where the “warm shift” narrative is more important than absolute color rendering at full output.

5CCT versus dim-to-warm and where each belongs

Tangra’s catalog explicitly lists 5CCT engines (in CRI 95 and CRI 98), a fixed 3000 K engine (in CRI 95 and CRI 98), and dim-to-warm 3000 K to 1800 K. The requested products give real examples of each: the gimbal square wide-trim 5CCT CRI 98 configuration supports selectable CCT from 2700 K through 5000 K.  The dim-to-warm examples show the 3000 K to 1800 K behavior in both gimbal round and gimbal square variants.  The fixed round recessed wide-trim examples include 5CCT selectable engines in both white and black finishes.

Professionally, 5CCT is best understood as a field-configurable engine for projects where final CCT decisions may shift during commissioning or where a single SKU must support flexible Lotus LED lighting solutions across multiple tenant types. The price of that flexibility is the need for commissioning control; selector positions must be documented, and the schedule should define default settings per space. Dim-to-warm is a different intent entirely. It is chosen when the lighting narrative depends on warmer tones as scenes dim, often for residential-style ambience in hospitality, high-end multi-family, or lounge environments. In those spaces, a dim-to-warm gimbal, especially with a defined beam like 36° or 50°, can be used to preserve visual clarity while shifting mood as output reduces.

Consistency control across batches and within a ceiling plane

Even when the selected engines have strong color performance, consistency across a project depends on procurement discipline. Tangra’s catalog frames the platform as premium and explicitly states multiple engine families; that implies that projects will mix engines and optical treatments when needed. The risk is visual inconsistency across adjacent ceiling areas when fixed 3000K, 5CCT, dim-to-warm, CRI 95, and CRI 98 engines are mixed without a documented zone strategy.

A practical way to manage this is to define “color zones” in the schedule. For instance, a project might standardize 3000 K CRI 98 in public-facing areas where material rendering is paramount and use 5CCT only in back-of-house areas where flexibility matters more. The requested SKUs demonstrate the platform’s ability to serve both, from fixed square deep-regressed 3000 K builds to selectable 5CCT gimbal square builds.  Once zones are defined, purchase orders should be grouped by engine to reduce cross-batch variability, and commissioning should lock settings to prevent “accidental tuning” over time.

Driver, Dimming, and Control Interface Engineering

Driver and voltage strategy as a first-class selection

Tangra’s catalog explicitly describes drivers as power selectable (11 W or 15 W), Triac dimmable at 120 V, and 0–10 V dimmable at 120–347 V. That statement is foundational. It means Tangra is designed to be deployed in both residential and commercial voltage contexts, including Canadian 347 V lighting circuits, without requiring a different luminaire family. It also means the “driver” is not a generic accessory. It defines power, dimming behavior, and voltage domain, and it therefore needs to be scheduled and procured with the same rigor as the luminaire head.

Some BuyRite listings reinforce this driver-dependent model directly. The fixed round recessed wide-trim 5CCT listings state “Voltage: 120V or 120V-347V (Driver Options)” and “Wattage: 11W / 15W Selectable.”  In practical terms, that implies that the same luminaire head can be paired with different drivers depending on project constraints. Procurement systems should therefore treat each luminaire as “head plus driver plus commissioning settings,” with counts reconciled and with driver variants aligned to control zones.

Phase-cut dimming behavior and how to evaluate it

Phase-cut dimming is where many recessed projects succeed visually but fail operationally if compatibility is not controlled. Tangra configurations listed by BuyRite include explicit minimum dimming statements for at least two fixed round 5CCT configurations: “3% reverse phase cut / 4% forward phase cut.”  That is useful because it indicates that reverse-phase (trailing-edge) and forward-phase (leading-edge) behavior is differentiated and that deep dimming is at least a design goal of the system.

The professional way to treat these claims is to specify the dimmer or control module families that are approved and to require a field verification test at representative loads. Reverse-phase dimming generally offers better low-end behavior for many LED driver designs, but it is not universal, and driver and dimmer interactions can still produce pop-on, dropout, or audible noise. In projects where the client expects premium scene control, phase-cut dimming should be validated in a mock-up ceiling or sample zone using the exact driver and dimmer pairing that will be installed. Tangra’s platform provides the architecture; project discipline determines whether the architecture behaves predictably.

0–10 V integration and control narrative discipline

The Tangra catalog’s inclusion of 0–10 V dimming across 120–347 V is a strong indicator that Tangra expects commercial control integration, not just wallbox dimmers. In those environments, predictability is often better than with phase-cut, but the failure modes change: wiring topology, control module selection, voltage drop on long control runs, and commissioning alignment become the primary risks. Tangra’s driver pathway can support this approach, but schedules must not mix protocols unintentionally across a functional area.

A professional control narrative should also decide whether wattage selection is locked (and documented) or left flexible. Because Tangra drivers are power selectable, the same luminaire head can deliver materially different output depending on commissioning. In 0–10 V projects, this is especially important because dimming curves and perceived brightness relationships can shift if one area is set to 11 W and another is set to 15 W, even if both are “dimmed to 30 percent.” Commissioning documentation should therefore capture both the control setpoints and the hardware settings.

Flicker and temporal light artifacts in professional environments

Tangra’s publicly visible listings do not consistently provide flicker metrics like PstLM or SVM. That is common in the market, but it does not remove the need to manage temporal artifacts, particularly in media-sensitive spaces or in environments with a lot of video capture (retail content production, corporate studios, hospitality marketing). The fact that Tangra supports both phase-cut and 0–10 V drivers means flicker behavior may vary significantly by driver choice and dimming method, especially at low output levels.

The correct way to handle this is to require either manufacturer-provided flicker performance data or field testing during mock-up and commissioning. Field testing does not need to be elaborate; a high shutter-speed camera test at common frame rates can quickly reveal whether the dimming method introduces rolling bands or stroboscopic artifacts. If a project needs a “camera-safe” outcome, that requirement should be stated explicitly so driver selection and control protocol can be aligned to it early. Without that requirement, any platform, including Tangra, can end up meeting lighting targets while failing occupant or client expectations in media-rich spaces.

Thermal and Environmental Engineering

Ratings and environmental intent

Tangra’s catalog frames the platform as suitable for demanding conditions with a defined set of certifications: cETLus, FCC, Type IC, air-tight, and wet location. Those listings have direct project implications. Type IC and air-tight are crucial in insulated ceilings and envelope-sensitive construction where penetrations must not compromise air barriers. Wet location is relevant for showers, covered exterior applications, and high-humidity interior spaces, assuming the installation details and site conditions match the listing interpretation.

The requested SKUs do not explicitly list every rating in the extracted BuyRite specification blocks, but they sit within the Tangra family that is marketed with those certifications. Professional teams should still verify that the exact model and configuration maintain the required listings for the application. That means submittals should include the correct spec sheet for the selected trim family and confirmation that the installed assembly, including driver placement and junction box use, conforms to the tested configuration.

Thermal behavior, derating thinking, and long-term stability

Tangra’s architecture relies on a combination of a compact luminaire head and a driver pathway that may be remote or adjacent depending on installation. The catalog emphasizes power selectability (11 W or 15 W), which implies that thermal loading is also selectable. In practical terms, 15 W mode will typically raise thermal stress relative to 11 W mode, especially in constrained plenums or insulated conditions. That does not mean 15 W is risky; it means it should be treated as a design decision rather than a default.

Thermal discipline also intersects with optic selection. Tight beams concentrate intensity and can increase perceived brightness, sometimes allowing wattage to be reduced while preserving visual impact. The Lotus L3F-SDW-BK-RC20-3K95 Tangra 3" Fixed Square Deep Regressed Wide Trim is a clear example: its 20° beam, black trim, clear-glass reflector, 3000K CCT, and CRI 95 performance suit precise accent lighting for artwork or merchandise. In those scenarios, running at 11 W may deliver adequate performance while reducing heat, improving comfort, and potentially improving long-term stability. Tangra’s modularity makes these trade-offs available, but the project has to decide which outcomes matter most and then document the settings accordingly.

Mechanical Design, Mounting, and Serviceability

Ceiling interface strategy and trim selection implications

Tangra’s catalog highlights 26 trim options and explicitly includes both recessed and deep-regressed strategies, plus multiple finishes such as white, black, Alzak, and other combinations. The requested SKUs show how those finish and trim choices map to real configurations: wide-trim gimbals in white and black, Alzak wide-trim dim-to-warm gimbals, and deep-regressed wide-trim square fixed models in white and black.  Wide trims can be forgiving of cutout inconsistencies and can create a bold ceiling presence, while deep-regressed formats are typically chosen to reduce glare and lower apparent aperture brightness.

Gimbal versus fixed also changes the ceiling interface narrative. A gimbal, such as the gimbal round and square wide-trim examples in this list, is not “set and forget” if the design intent relies on specific aiming.  It introduces an alignment and commissioning step. Fixed deep-regressed models reduce that aiming variability and can be preferable when consistency and uniformity are paramount, or when the client wants to minimize long-term maintenance variability.

Serviceability planning and spare strategy

Serviceability is rarely a brochure feature, but it becomes a real cost driver over the life of a building. Tangra’s platform approach, including driver selectability and multiple engine families, suggests that spare strategy should be planned rather than improvised. A project using both 5CCT and dim-to-warm engines should consider whether spare luminaires should match each engine family, because replacing a dim-to-warm luminaire with a 5CCT luminaire, even if it fits the ceiling, can change scene behavior and client perception.

Finishes and optics also influence spares. For example, a black-trim fixed round 24° 5CCT configuration is not visually equivalent to a white-trim 50° 5CCT configuration, even if the aperture size matches.  Professional maintenance plans should therefore define spare “kits” by zone: one or two spares for each distinct finish and optic family, plus driver spares aligned to the installed control protocol. That approach costs more upfront but typically pays back quickly by reducing downtime and avoiding mismatched replacements that trigger occupant complaints.

Compliance, Listings, and Test Documentation

Certifications and how to treat them in submittals

Tangra’s catalog lists a clear certification set: cETLus, FCC, Type IC, air-tight, and wet location. For professional buyers, the key is not merely that these words appear in marketing, but that submittals can trace listings to the exact installed configuration. Tangra’s option density makes this traceability important, because a trim family or installation method can affect what is covered by a listing even within the same platform.

Submittals should therefore include at least: the cut sheet or spec sheet for the exact model family (for example, the specific gimbal wide-trim or fixed deep-regressed wide-trim line), the exact configuration identifiers used on the schedule, and documentation of driver type and dimming protocol. When the AHJ or compliance reviewer asks “Is this IC and air-tight?” the answer must be tied to the exact product being installed, not to the family name alone. Tangra’s catalog supports this kind of disciplined documentation by declaring platform-level certifications and option categories clearly.

Performance documentation and what to request for professional confidence

BuyRite listings for the fixed round recessed wide-trim 5CCT models include a clean set of specs that are useful for schedule validation: wattage selectability, voltage domain by driver option, CCT selectability range, lumen ceiling, CRI, and stated phase-dimming minimums.  This is good baseline documentation, but projects that are performance-sensitive should still request configuration-specific photometry and color documentation for the exact optic and engine combination. Tangra’s platform is explicitly built around multiple optics and multiple engines, so “generic” performance statements will not reliably cover every permutation.

The professional approach is to define the documentation package as part of procurement. At minimum, that includes photometric files for each unique configuration, plus manufacturer evidence of color performance for color-critical zones. If the project relies on dim-to-warm behavior, documentation should confirm the engine’s intended warm shift range, which the dim-to-warm product listings explicitly state as 3000 K to 1800 K.  The goal is not to create paperwork. The goal is to create a defensible chain from schedule intent to installed outcome.

Controls and Code Integration

Aligning Tangra to energy and control requirements

Tangra’s driver options, as described in the catalog, support both 120 V Triac and 120–347 V 0–10 V dimming. That alignment is important because many commercial codes and owner standards increasingly assume dimming and automatic control capability, and many projects require higher-voltage lighting circuits. Even when a jurisdiction does not require advanced controls, owners often do, because operational energy management and scene capability are standard expectations in modern commercial and hospitality environments.

The biggest control risk in Tangra deployments is not that the platform cannot meet code requirements. The risk is that the project mixes protocols or fails to document settings. A 5CCT fixture in a controlled office environment is only as good as its final configured CCT and its control zone alignment.  Similarly, a dim-to-warm fixture only delivers its value if dimming curves are stable at low levels and scenes are built with the warm-shift narrative in mind. When these are treated as commissioning deliverables, Tangra integrates cleanly. When they are treated as “installer choices,” the platform’s flexibility becomes inconsistent.

Commissioning scope that matches Tangra’s degrees of freedom

Tangra’s platform provides three common commissioning variables: wattage mode (11 W vs 15 W), CCT selection in 5CCT engines, and aiming for gimbal models. A professional commissioning scope should explicitly assign responsibility for each variable. This is especially true on projects where the electrical contractor installs luminaires but the lighting designer or controls contractor defines scenes, because the final outcome depends on coordination.

A useful commissioning checklist is short but strict. It typically includes: verify wattage mode per zone, verify CCT selector positions per zone for 5CCT fixtures, confirm gimbal aiming is consistent with the reflected ceiling plan, and verify dimming stability across the full range. The requested product set includes both gimbal and fixed, both 5CCT and dim-to-warm, and both CRI 95 and CRI 98 engines.  That mix makes commissioning discipline even more important, because a project can easily end up with inconsistent light tone and intensity if these variables are not locked down.

Specification and Submittal Strategy for Professionals

Basis-of-design language that stays enforceable

A Tangra basis-of-design spec should be written around measurable and verifiable parameters, not around vague equivalence statements, especially on projects that require professional recessed lighting specifications. Tangra declares its platform options clearly: five beam angles, lens and reflector families, selectable engines including 5CCT and dim-to-warm, and selectable driver modes with Triac and 0–10 V pathways. A defensible spec should therefore define at least: aperture and trim family, beam distribution, optic type, LED engine selection (including CRI tier), dimming protocol, voltage domain, and commissioning settings policy.

The requested SKUs provide ready-made examples of how “specific” the spec can be without becoming unwieldy. A gimbal round recessed wide trim might be specified as 3000 K CRI 98, 50° beam, white trim, frosted reflector if the project needs high-fidelity rendering with softened optics.  A fixed square deep-regressed wide trim might be specified as 3000 K CRI 95 with a 20° beam and clear glass reflector when tight accent control and low-glare aesthetics are required.  This kind of specificity prevents substitutions that “fit the cutout” but do not meet performance intent.

Submittal checklist that mirrors Tangra’s system nature

A Tangra submittal package should be designed to prevent two classic failures: configuration mismatch and control mismatch. The submittal should therefore include: the exact SKU or configuration identifier for each scheduled luminaire, the exact optic and beam identity, the engine identity (fixed 3000 K, 5CCT, dim-to-warm), the driver identity and protocol, and the commissioning settings policy (wattage mode, CCT settings where applicable, aiming plan for gimbals). The BuyRite specification blocks for the fixed round 5CCT models provide a good template for what “minimum viable clarity” looks like: wattage selectability, voltage domain, CCT range, lumen ceiling, CRI, dimming minimum, optic type, and beam angle.

For gimbal and dim-to-warm configurations, the submittal should include confirmation of the intended warm-shift behavior and beam selection, because those directly affect the user experience.  For 5CCT gimbals, the submittal should include the intended default CCT setting for each room type and a commissioning record format.  When the submittal package is structured this way, Tangra becomes easy to defend under review, easy to order correctly, and much easier to commission predictably.

Procurement, QA, and Risk Management

Pre-purchase validation that targets Tangra’s real risk points

Pre-purchase validation should be aimed at the variables Tangra actually exposes: optic stack, beam distribution, engine behavior, and dimming response. Tangra’s catalog explicitly states that reflectors may use clear, frosted, or semi-frosted glass, and that lenses may be high-efficiency or dual-color depending on engine type. The requested SKU set includes both clear-glass reflector and frosted-glass reflector, plus white and black lens reflectors, across both gimbal and fixed families.  That diversity is precisely why a sample-based mock-up is valuable before a large purchase order.

A professional validation plan usually includes a small mock-up ceiling with at least one representative configuration per optic family and per engine family. For example, pairing a CRI 98 fixed 3000 K configuration with a CRI 95 dim-to-warm configuration in the same ceiling plane can reveal whether the project is comfortable with how scenes shift and how beams read on typical finishes. Similarly, comparing a 24° beam and a 50° beam in the same mounting height can quickly reveal whether the design intent is better served by fewer fixtures with wider beams or more fixtures with tighter distributions. Tangra gives those knobs; the mock-up prevents expensive guessing.

Incoming inspection and jobsite QA that keeps the schedule intact

Tangra projects require jobsite QA because similar-looking cartons may contain different beam angles, optic stacks, trim finishes, CCT engines, CRI tiers, or driver protocols. Incoming inspection should include carton-level verification of SKU and optic identity and driver protocol identity, not just manufacturer name and trim finish. This is especially important when the project includes both gimbal and fixed families, both 5CCT and fixed-CCT engines, or both clear and frosted optic stacks.  The requested product set includes all of those differences, which increases the value of simple staging and labeling practices.

A minimal but effective jobsite control approach often includes: staging by floor or zone, staging by finish, and separating gimbal from fixed cartons. For 5CCT fixtures, cartons should be flagged so commissioning can verify selector positions before ceilings close. For dim-to-warm fixtures, cartons should be flagged so scene-building teams know which zones have warm-shift behavior.  These practices cost almost nothing compared to the cost of chasing down misinstalled optics or mismatched engines after occupancy.

Substitution management that stays technical

Substitutions in recessed lighting often claim equivalence based on aperture and lumen output, but Tangra’s platform identity is more nuanced. Substitution management should therefore be structured around what Tangra actually sells as value: beam control, optic control, engine control, and driver control. A substitution that matches lumens but changes optic family can shift glare and beam texture. A substitution that matches appearance but changes driver pathway can change dimming response and control integration. A substitution that matches the beam but changes engine family can shift color rendering and scene behavior.

A practical method is to define “non-negotiables” per zone in the spec. For example, art and feature zones might require CRI 98 at a fixed CCT and a defined optic family, while general zones might permit CRI 95 and 5CCT selection if commissioning discipline is maintained. The requested SKU set includes both CRI 98 and CRI 95 examples and both fixed-CCT and 5CCT examples, making it straightforward to create these zone-specific rules.  When non-negotiables are declared early, substitutions become a technical review instead of a schedule crisis.

Configuration Matrix and Selection Tables

Building a usable configuration matrix from Tangra’s option set

Tangra is easiest to manage when the project builds a “unique configurations” matrix before ordering. Tangra’s catalog defines the core axes: LED engine choice, optic family, beam angle, driver type, and trim family. The requested SKUs can be used as concrete anchors in such a matrix: 3000 K CRI 98 with frosted reflector at 50°, dim-to-warm 3000 K to 1800 K at 36° and 50°, 5CCT selectable at 36°, and fixed recessed 5CCT at 24° and 50°, plus fixed deep-regressed 3000 K at 20° and 50°.

A professional matrix does not need to list every possible combination that Tangra can produce. It needs to list every combination the project actually intends to install, with a one-to-one mapping to procurement line items and commissioning settings. Once that is built, it becomes the backbone for photometric file selection, submittal control, staging on site, and spare strategy. Tangra’s platform is built for this approach; it essentially invites the project team to treat it like a configurable system.

Standardization rules that reduce errors without losing intent

Standardization is how Tangra remains manageable in a large project. It is typically better to standardize on a small set of beams per ceiling height and reserve special beams for special zones rather than mixing beams everywhere. The requested SKUs show a useful progression: 20° for tight accent, 24° for controlled general with punch, 36° for balanced distribution in gimbals and some general zones, and 50° for broader coverage and smoother spacing.

Standardization also applies to engines. A project might standardize on 3000 K CRI 98 in public-facing areas and use 5CCT only where flexibility is required, or standardize on dim-to-warm in hospitality zones while keeping fixed-CCT in task-oriented zones. Tangra supports these strategies, and the requested SKU set provides examples of each. The critical point is that standardization rules should be written explicitly into the schedule and commissioning scope so the platform’s flexibility is expressed intentionally, not accidentally.

Common Failure Points in the Field and How to Prevent Them

Dimming instability and control mismatch

The most expensive Tangra failure mode is not usually a broken luminaire; it is a control mismatch that is discovered late. The BuyRite listings show that voltage domain and dimming behavior depend on driver selection, and they show phase-cut minimums for certain configurations.  If a project orders the wrong driver variant, or mixes driver protocols in the same functional area, commissioning becomes complicated and the end user sees inconsistent scene behavior.

Prevention is straightforward but must be enforced. Driver protocol should be specified per zone, driver quantities should be reconciled one-to-one with luminaire heads, and field testing should verify low-end stability with the exact installed dimmers or control modules. When wattage is selectable, wattage mode must be documented. These steps are not “nice to have” in a platform like Tangra; they are the difference between a premium lighting result and a series of callbacks.

Optic and engine drift that changes the visual outcome

The second major failure mode is optic drift and engine drift. Tangra’s platform includes clear and frosted reflector glass options and lens reflector options, and it includes fixed-CCT, 5CCT, and dim-to-warm engines. If cartons are mixed or substitutions occur without review, spaces can end up with a mix of beam textures, a mix of color tone behaviors, or both. The visual result can be subtle but still unacceptable, particularly in spaces with continuous sightlines where adjacent luminaires are compared automatically by occupants.

The best prevention is a combination of schedule clarity and jobsite staging. Schedule clarity means each zone’s optic family, beam, and engine are declared, not implied. Jobsite staging means cartons are separated by configuration and installed by zone rather than “first in, first out.” When 5CCT fixtures are used, selector positions must be locked and recorded. When dim-to-warm fixtures are used, they should not be swapped into zones where fixed-CCT was intended, even if the physical form factor fits.

Expert Buyer’s Question List

Questions to ask the vendor or distributor before purchasing

The best vendor questions are the ones that force configuration identity and driver identity into the open. Since Tangra is explicitly a configurable platform with selectable engines, optics, beams, and drivers, purchase orders should confirm that the shipped configurations match the intended schedule. Tangra’s catalog states the engine families, optic families, beam families, and driver pathways clearly, making these questions both reasonable and expected.

A practical vendor question set usually includes:

• Confirm optic family for each SKU (clear-glass reflector, frosted-glass reflector, lens reflector type) and confirm beam angle pairing.
• Confirm engine family (3000 K fixed, 5CCT selectable, dim-to-warm) and confirm CRI tier.
• Confirm driver protocol and voltage domain per control zone, including whether power selection is field-set or fixed.
• Confirm warranty terms shown in certain listings for specific items, such as the 5-year warranty shown in the square deep-regressed wide-trim listing.

Questions to ask internally before installation begins

Internal questions are often where Tangra projects either become smooth or become messy. Tangra provides multiple degrees of freedom, so responsibility for those decisions must be assigned. If the project uses 5CCT, someone must own final CCT settings and must document them. If the project uses selectable wattage drivers, someone must decide whether 11 W or 15 W is the default for each zone and must ensure consistency. If the project uses gimbals, someone must own aiming and must confirm that aiming is part of commissioning, not an informal field activity.

A useful internal checklist includes:

• Which zones are fixed-CCT versus 5CCT versus dim-to-warm, and what is the intended scene narrative in each?
• Which beams are standardized per ceiling condition, and where are exceptions allowed?
• What is the jobsite staging plan to prevent mixing optics and finishes?
• What is the closeout record format for wattage mode, CCT settings, and gimbal aiming orientation?

These questions are not overhead. They are the operational controls that allow Tangra’s flexibility to produce a consistent and high-quality result.

Final Specification Notes

Tangra is best suited for projects that need a compact recessed platform with multiple visual outcomes from one coordinated system. Use CRI 98 fixed-CCT models for color fidelity, 5CCT models for field flexibility, dim-to-warm models for scene control, narrow beams for accent work, and wider beams for ambient coverage when building a broader Lotus LED product strategy. Each selection should be assigned by zone, not treated as a generic fixture count.

Because Tangra’s flexibility depends on configuration control, wattage mode, CCT selector position, optic selection, driver protocol, and gimbal aiming should all be documented. A complete schedule should define trim family, finish, optic stack, beam angle, LED engine, CRI tier, driver protocol, wattage setting, and aiming plan. When specified this way, Tangra delivers predictable project results rather than field-dependent variation.
