How to Choose DMF X Series Products for Recessed Lighting Projects

• DMF X Series recessed lighting uses separate housings, LED modules, trims, and drivers to enable configurable optics and field-replaceable components.
• Proper DMF X Series lumen package, beam angle, and trim regress depth selection determines glare control, visual comfort, and maintained illuminance accuracy.
• DMF X Series driver compatibility, flicker performance, emergency integration, and electrical code compliance must be validated before procurement to prevent commissioning failures.

Selecting within the DMF X Series platform is a coordination exercise, not a fixture pick. Because the system separates the housing, LED module, trim, optics, and driver functions, each choice affects the others. Housing feasibility, beam distribution, lumen package, trim geometry, dimming compatibility, and service access should be resolved as one specification path before procurement begins.

A modular recessed system should be specified in sequence. First confirm the ceiling and plenum constraints. Then model the required output and beam behavior. After that, select the trim for aperture brightness, finish tolerance, and visual comfort, and finally confirm driver and control compatibility against the actual project hardware. That sequence reduces field changes and improves the likelihood that the installed system performs as modeled.

X Series System Architecture Breakdown

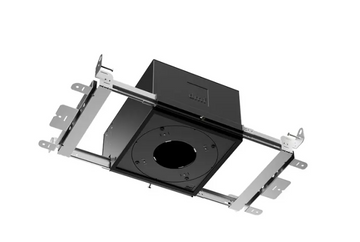

Mechanical Architecture

The housing serves as the structural and dimensional reference point for the recessed system, establishing mounting geometry, plenum requirements, and service accessibility. In new-construction applications, selection must account for framing layout, ceiling assembly thickness, and available above-ceiling clearance before optical or trim decisions are finalized. For a 2-inch square X Series configuration, the DMF Lighting X2NCS X Series 2" Square New Construction Housing is positioned as the appropriate rough-in component. The linked BuyRite Electric product page identifies the X2NCS as a DMF Lighting 2-inch-square new-construction housing for the X Series platform and lists it as IC-rated up to 1250 lumens for downlight applications and 1000 lumens for adjustable applications.

According to DMF Lighting’s published product information, this housing is engineered specifically for the compact X Series platform, which uses a reduced aperture profile relative to larger H Series configurations. Because the X Series form factor is dimensionally constrained, mechanical tolerances, plenum depth, and driver placement must be confirmed prior to approval. The project team should verify required clearances, insulation contact rating (IC/non-IC), junction box access, and any installation limitations shown in the technical documentation before release.

Housing selection directly influences downstream risk. If framing tolerances, drywall build-up, or mechanical congestion in the plenum are not evaluated at rough-in, final trim alignment and service access may be compromised. The housing therefore establishes the dimensional baseline for aperture location, optical positioning, and future driver accessibility, and should be coordinated as the controlling reference for the complete recessed assembly.

Optical Engine Architecture

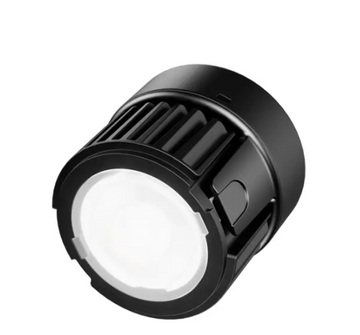

The X Series modular light engine separates the LED module and optics from the rough-in housing, allowing output and distribution to be refined without disturbing the installed structure. This approach supports late-stage performance adjustments; however, lumen package, beam angle, and trim selection must be coordinated deliberately to maintain predictable photometric results. The optical assembly should be evaluated as a controlled distribution system rather than solely on nominal lumen output, particularly in accent or focused downlight applications where beam precision and intensity are critical.

For concentrated beam applications requiring warm-dim performance, the DMF Lighting XMD1093WSPT X Series 2" LED Downlight Module  represents a defined configuration within the platform. The linked BuyRite Electric product page specifies a 30-degree beam angle paired with a nominal 1,000-lumen output, positioning the module for focused downlighting or accent illumination. The listing further indicates dim-to-warm performance transitioning from 3000K to approximately 1800K as output decreases, with universal 120–277V input and compatibility with TRIAC and ELV dimming controls. These characteristics make the module suitable for hospitality, residential, or high-end commercial environments where reduced color temperature at low light levels is desired.

While the draft provides beam angle, lumen output, color-shift range, input voltage, and dimming type, it does not reference CRI, R9, TM-30 metrics, flicker performance, or verified minimum dimming percentage. Those parameters should be confirmed through formal photometric and specification documentation before final approval. Beam spread relative to mounting height, target distance, and dimmer compatibility should also be validated during submittal review to ensure the optical distribution and control strategy align with project performance criteria.

Thermal Management Strategy

Thermal performance directly influences lumen maintenance, color stability, and driver longevity. In modular systems, the separation between housing and light engine allows for engineered heat dissipation pathways that protect the LED junction temperature. However, real-world performance depends heavily on plenum conditions. Insulation density, ambient temperature, and airflow constraints all affect long-term stability.

Remote driver configurations must also be assessed relative to heat buildup and access. Elevated ambient temperatures accelerate lumen depreciation and may shorten driver lifespan if not properly managed. Reviewing IES LM-80 testing data and TM-21 lumen-maintenance projections provides insight into expected long-term LED performance under defined thermal operating conditions. Thermal management should be treated as a core performance variable rather than a background specification detail.

Pre-Specification Technical Evaluation

Ceiling and Construction Variables

A rigorous specification begins with a physical constraints analysis. Ceiling thickness, framing orientation, plenum depth, and potential obstructions must be reviewed before photometric layouts are finalized. In new construction, the integration of housings such as the X2NCS must align with framing drawings to prevent structural conflicts. Remodel scenarios introduce additional complexity because access limitations and unknown conditions can restrict placement options.

Key construction variables to evaluate include:

• Plenum depth relative to housing height
• Insulation type and IC rating requirements
• Fire-rated ceiling assemblies
• Access panel availability for driver servicing
• Ceiling material type and tolerance

Early coordination with architectural and mechanical disciplines prevents field modifications that compromise both aesthetics and performance.

Photometric Objectives

Photometric design begins with clearly defined illuminance and uniformity targets. Ambient lighting requires maintained horizontal footcandle levels consistent with program requirements. Accent lighting demands sufficient center beam candlepower to produce meaningful contrast without oversaturating adjacent surfaces. Vertical illumination targets are often more critical than horizontal metrics in retail, gallery, and hospitality environments.

Accurate modeling requires reliable reflectance assumptions. Ceiling, wall, and floor finishes influence perceived brightness and beam interaction. Without confirmed reflectance values, photometric calculations may misrepresent real-world outcomes. Beam selection and spacing decisions must therefore be validated through simulation, particularly when using narrow distributions or wall wash optics.

Code and Electrical Requirements

Electrical and energy codes govern driver selection and control strategy. Lighting power density limits established under ASHRAE 90.1 and the International Energy Conservation Code (IECC) should be incorporated into lumen-package and controls-planning decisions during specification. Additional energy code requirements such as high efficacy performance and mandatory lighting controls must also be considered where applicable.

Electrical compliance review should confirm:

• Driver accessibility in accordance with NEC
• Class 2 versus Class 1 wiring constraints
• Emergency circuit separation
• Required minimum egress illumination

Ignoring these parameters during specification often leads to redesign during inspection. Integrating compliance criteria at the outset ensures that photometric performance and electrical legality are achieved simultaneously.

Lumen Package Selection Methodology

Mounting Height and Spacing Logic

Lumen package selection is fundamentally tied to mounting height and spacing geometry. Higher ceilings demand sufficient center beam candlepower to maintain vertical contrast and perceived brightness at the target surface. A 1,000-lumen, 30-degree module can support strong accent or controlled downlighting when mounting height, aiming, and spacing are coordinated. In lower ceilings or in areas with frequent direct sightlines to the aperture, that same combination may require tighter glare review and more deliberate trim selection.

Spacing-to-mounting height ratios provide a starting framework, but they should be refined through photometric simulation. Overlapping beam patterns must produce uniform coverage without excessive brightness directly below the aperture. Designing for maintained illuminance, rather than initial brightness alone, ensures consistent performance over time.

Delivered Light Versus Rated Output

Catalog lumen values should not be treated as finished-aperture performance without qualification. Optic losses, trim geometry, and finish characteristics affect delivered light and perceived brightness. For that reason, output should be evaluated in the exact housing, module, and trim combination being submitted, not assumed from module naming alone.

Light Loss Factor calculations should include lumen depreciation, dirt depreciation where applicable, and environmental conditions. Designing to maintained footcandle levels ensures that the space continues to meet performance targets after years of operation. Overestimating delivered lumens can lead to under-lighting once depreciation occurs.

Avoiding Over-Specification

Oversizing lumen packages introduces glare, increases power density, and complicates dimming performance. If fixtures consistently operate at reduced output levels, the specification may be unnecessarily aggressive. A balanced approach considers mounting height, beam angle, and reflectance before selecting maximum output modules.

Optimized specifications align lumen package with actual visual requirements. Controlled output improves visual comfort and reduces the risk of uneven brightness gradients. Efficient design is not defined by maximum output, but by calibrated output.

Optical System Engineering

Beam Angle Selection

Beam angle selection defines distribution character and spatial layering in architectural recessed lighting applications where beam control and glare management are critical. Narrow beams concentrate intensity for accent lighting, while flood and wide flood distributions support ambient layering. Understanding both beam angle and field angle is essential for predicting overlap behavior and uniformity.

Layered lighting schemes often combine focused accent modules with broader ambient distributions. Modular systems enable beam refinement without altering housing installation. Beam selection must therefore be validated through simulation rather than relying on generalized assumptions.

Wall Wash Optics

Wall washing requires precise setback distances and spacing intervals. Improper positioning produces scalloping or uneven vertical gradients. Vertical illuminance modeling ensures that brightness transitions remain consistent from ceiling line to floor.

Mounting height directly affects uniformity performance. Even small deviations in placement can disrupt visual smoothness. Proper coordination between lighting layout and architectural dimensions is essential to achieving uniform wall illumination.

Glare Control Engineering

Glare control in compact apertures is governed by shielding angle, regress depth, and resulting source luminance at typical viewing angles. Deeper trim geometries reduce high angle brightness by limiting direct view of the LED emitter, while reflector finish and aperture profile influence perceived brightness and ceiling contrast. Trim selection therefore directly affects visual comfort, particularly in low ceiling or hospitality environments where sightlines are more acute.

For applications requiring a refined round aperture with controlled edge detailing, the DMF Lighting X2TRDSWHMF X Series 2" Round Beveled Micro Flange Trim White Finish aligns with glare mitigation and finish tolerance objectives. The linked BuyRite Electric product page describes the component as a 2 inch X Series trim with a round beveled profile and micro flange edge condition in a white finish, intended for use with compatible X Series housings and modules. The micro flange detail provides slight overlap at the ceiling plane to accommodate minor drywall irregularities while maintaining a tight visual transition.

Actual glare performance and cutoff characteristics remain dependent on the paired LED module, beam distribution, and the trim’s documented shielding angle. Optical behavior, including regress depth and effective cutoff, should be verified against manufacturer photometric data during submittal review to confirm compliance with project glare and luminance criteria.

Trim Strategy as a Performance Variable

Regress Depth Analysis

Regress depth directly influences shielding angle and perceived brightness. A shallow trim maximizes optical efficiency by exposing more of the reflector aperture, but it also increases the likelihood of high angle brightness being visible to occupants. In spaces with low ceilings or frequent upward sightlines, this can translate into discomfort glare even when horizontal footcandle levels are appropriate. Regress depth must therefore be calibrated relative to mounting height, lumen package, and expected viewing geometry.

Deeper trims improve cutoff performance and conceal the LED source more effectively. This is especially important when higher lumen modules are used or when narrow beams produce concentrated intensity. Increased shielding reduces direct view of the source and lowers apparent luminance at the aperture. The tradeoff is a marginal reduction in delivered lumens due to additional optical losses, which must be accounted for in modeling. In high-comfort environments such as residential living spaces and hospitality venues, deeper regress configurations often yield superior visual results.

Reflector Finish Impact

Reflector finish selection is not purely aesthetic. It is an optical decision that influences efficiency, luminance distribution, and beam definition. White reflectors increase internal reflectance and maximize lumen output. This can be advantageous in ambient lighting applications where uniform horizontal illuminance is the priority. However, higher reflectance also increases aperture brightness, which may be undesirable in low ceiling environments.

Darker reflectors suppress perceived brightness and reduce visual intrusion. In accent lighting scenarios, this helps maintain contrast between the illuminated target and the ceiling plane. Specular finishes produce sharper beam edges and more defined transitions, while matte finishes soften distribution and reduce sparkle. Reflector finish must be aligned with the intended beam character and glare tolerance of the space. A high-output module paired with a highly reflective trim may achieve target illuminance but compromise comfort if luminance control is not carefully managed.

Flanged Versus Flangeless

Flanged trims provide installation tolerance and accommodate minor drywall inconsistencies. In many commercial environments, this practical advantage reduces the risk of ceiling imperfections around the aperture. Micro flange trims, including the previously referenced X2TRDSWHMF, are typically selected when the design needs a cleaner edge condition than a standard flange while still preserving some tolerance at the finished ceiling interface. That makes them useful where ceiling appearance matters but field conditions may not support a true mud-in detail.

Flangeless trims demand higher construction precision. Mud-in applications require disciplined sequencing and coordination between electrical and drywall trades. If installation timing is misaligned, cracking or uneven edges can occur. From a performance standpoint, flanged and flangeless trims may behave similarly optically, but from a risk management perspective they differ significantly. Selection should reflect contractor capability and project tolerance for field variability.

Adjustable and Specialty Trims

Adjustable modules expand application flexibility by enabling beam aiming after installation. Tilt range, locking stability, and beam consistency at extreme angles should be verified before specification. Narrow beams may shift or distort when tilted significantly, which can affect target illumination accuracy. Modeling adjustable configurations in their intended orientation reduces the likelihood of field surprises.

Specialty trims for wet locations, sloped ceilings, or unique architectural conditions introduce additional variables. Wet location ratings require proper gasketing and sealing to maintain compliance. Sloped ceiling trims must align precisely with ceiling pitch to preserve beam geometry. Each specialty condition should be reviewed individually to ensure both code compliance and photometric integrity are preserved.

Driver and Power Strategy

Dimming Protocol Compatibility

Driver selection must align with the project’s control ecosystem. Compatibility between fixture drivers and control protocols is essential for predictable dimming behavior. The previously referenced XMD1093WSPT is identified in the draft as 120 to 277V and TRIAC/ELV dimmable, which makes it a practical candidate where phase-dimming compatibility and warm-dim behavior are required. That should still be treated as a project-specific validation item, since actual dimming performance depends on the control hardware, circuit loading, and low-end trim settings.

In commercial environments using 0 to 10 volt or DALI systems, driver compatibility matrices should be reviewed to confirm dimming range and stability. In residential applications, forward phase and reverse phase dimming compatibility must be confirmed with the specific dimmer model. Dimming inconsistencies typically originate from mismatched driver and control components. Early validation prevents commissioning delays and occupant dissatisfaction.

Flicker and Low-Level Performance

Flicker performance is a measurable parameter that influences occupant comfort and camera compatibility. Percent flicker and flicker index values should be reviewed in relation to IEEE 1789 guidance. Even when imperceptible to most occupants, flicker can affect sensitive individuals or video recording environments. Driver waveform quality is therefore a specification criterion, not an optional detail.

Low-level dimming capability is particularly important in hospitality and residential spaces where warm dim modules are deployed for ambiance. Smooth fade transitions and stable minimum output levels contribute to perceived quality. If drivers exhibit stepping, dropout, or inconsistent color behavior at low output, the visual experience degrades significantly. Performance validation at the lowest expected dimming levels is as important as validation at full output.

Remote Versus Integrated Drivers

Remote driver configurations can simplify module replacement because the driver remains accessible outside the ceiling aperture. This arrangement is beneficial in environments where long-term maintenance is prioritized. However, remote drivers require careful consideration of wiring distance and voltage drop. Clear labeling and documentation of driver locations are essential for service efficiency.

Integrated drivers reduce wiring complexity and may simplify rough-in in certain applications. However, service access may be more challenging in congested plenums. The choice between remote and integrated drivers should be guided by maintenance strategy, plenum conditions, and electrical distribution layout. Each approach offers advantages depending on project priorities.

Emergency Integration

Emergency lighting integration must satisfy code requirements for minimum illumination levels during power loss. Compatibility with central inverter systems or the inclusion of integral battery modules should be determined early in design. Lumen output under emergency conditions must meet local egress standards.

Circuit separation and wiring pathways require coordination with the electrical engineer. Emergency feeds must be clearly identified and isolated as required by code. Integrating emergency functionality after design completion often results in compromised performance or rework. Proper planning ensures that normal and emergency modes both perform as intended.

Color Specification Strategy

Correlated Color Temperature Selection

Correlated color temperature selection shapes spatial perception and occupant comfort. Residential environments often favor 2700K or warm dim behavior to create a layered and intimate atmosphere. Commercial environments may utilize 3500K or 4000K for visual clarity and task orientation. Consistency across adjacent zones prevents unintended visual shifts that can be distracting.

Intentional CCT transitions require careful zoning and documentation. If multiple CCTs are used within a single project, their boundaries should align with architectural features or functional divisions. Unintentional mixing of modules with different CCTs can undermine visual cohesion and should be avoided through rigorous submittal review.

Color Rendering Metrics

Color quality assessment extends beyond CRI. R9 values indicate the rendering of saturated reds, which is particularly important in hospitality, retail, and residential environments. TM-30 metrics, including Rf and Rg, provide a more nuanced understanding of fidelity and saturation shift. High fidelity rendering supports accurate material and skin tone representation.

Binning tolerances should also be considered to minimize perceptible color variation between fixtures. Modular systems often allow module replacement over time, and maintaining color consistency requires attention to bin selection. Spectral stability across batches ensures that future replacements do not introduce noticeable discrepancies.

Warm Dim and Tunable White

Warm dim modules emulate the behavior of incandescent sources by reducing color temperature as output decreases. The XMD1093WSPT transitions from 3000K to 1800K as output is reduced, which allows warm-dim behavior without introducing a separate tunable-white control layer. That effect depends on smooth low-end dimming performance, so the dimmer or control system should be validated at the actual minimum operating range expected in the space.

Tunable white systems introduce dual channel complexity and require compatible drivers and controls. Channel balancing and calibration must be validated during commissioning. Without proper configuration, color shifts may appear inconsistent or abrupt. Early coordination between lighting design and controls programming is critical for successful implementation.

Controls Integration and Zoning Engineering

Zoning Strategy and Functional Segmentation

Effective zoning reflects functional use patterns rather than simple fixture grouping. Task lighting, accent lighting, and ambient lighting should operate separately to support flexible scene creation. Oversized zones limit adaptability, while excessive segmentation increases system complexity and cost.

Load distribution across circuits should be balanced to prevent driver overload conditions. Electrical planning must consider cumulative loads and control grouping to maintain system stability. A structured zoning plan enhances both usability and maintainability.

Daylight Harvesting and Sensor Coordination

Daylight harvesting integration requires precise sensor placement relative to window orientation and daylight penetration depth. Sensors must be positioned to measure representative ambient conditions without interference from artificial light sources.

Calibration procedures should be documented during commissioning. Improper sensor configuration can result in oscillation or inadequate dimming response. Early coordination between lighting layout and controls programming ensures predictable daylight integration.

Control Wiring and Signal Integrity

Low voltage control wiring must be coordinated with electrical distribution to prevent interference or voltage drop issues. Signal topology should be documented clearly to support troubleshooting and future expansion.

Proper separation between line voltage and control wiring maintains system integrity. Clear labeling of control loops simplifies maintenance and minimizes commissioning delays. Controls integration is a technical discipline that requires structured documentation and cross-trade coordination.

Installation Coordination and Risk Mitigation

Rough-In and Framing Alignment

Successful installation begins with accurate rough-in placement aligned to final layout drawings. Housings must be secured precisely relative to framing members and architectural features. Deviations during framing or drywall phases can compromise beam alignment and uniformity.

Early site verification of framing dimensions reduces the risk of conflicts. Coordination meetings between electrical and drywall trades establish sequencing expectations. Preventative coordination is significantly more efficient than corrective rework.

Trim Installation and Ceiling Finish Sequencing

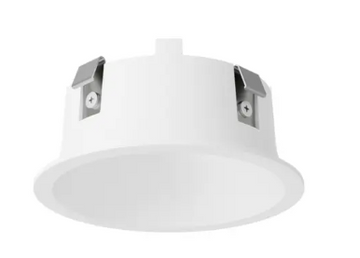

Micro flange trims provide installation tolerance while maintaining a refined ceiling interface. Flangeless or mud-in trims require disciplined sequencing to avoid cracking or uneven transitions. Ceiling finishing must occur in accordance with manufacturer recommendations to preserve alignment and finish integrity.

Protective measures during drywall sanding and painting prevent contamination of optical components. Careful handling of modules and trims ensures that performance is not compromised during installation.

Commissioning and Performance Verification

Commissioning validates that installed components perform as specified. Beam aiming should be confirmed relative to intended targets. Dimming curves must be tested across the full output range to ensure stability.

Performance verification should include:

• confirmation of installed module and trim pairing
• beam alignment relative to the intended target
• dimming smoothness from full output to the lowest expected scene level
• warm-dim behavior where specified
• glare review from typical occupant sightlines
• emergency mode operation where required

Structured commissioning protects design intent and confirms that installation quality meets specification requirements.

Maintenance and Serviceability Engineering

Module Replacement Planning

Modular systems allow LED modules to be replaced independently of the housing. Maintaining a limited stock of spare modules preserves color consistency and simplifies long-term service. Clear documentation of module type and beam angle ensures that replacements match original specifications.

Service access clearances should be verified during design. Without adequate access, routine maintenance becomes disruptive and costly. Planning for future replacement preserves operational continuity.

Driver Access and Documentation

Remote driver locations should be clearly labeled and mapped in as-built documentation. Accessible driver placement simplifies troubleshooting and reduces downtime during service events.

Integrated driver configurations should include sufficient access clearance in the plenum. Documented wiring diagrams and control loop identification assist maintenance teams in diagnosing issues efficiently.

Long-Term Performance Monitoring

High-load environments benefit from periodic inspection of thermal conditions and driver performance. Monitoring for signs of lumen depreciation or color shift allows proactive replacement before noticeable degradation occurs.

Maintenance strategy should reflect anticipated operating hours and environmental conditions. Modular platforms provide flexibility, but structured maintenance planning ensures that performance advantages are sustained over time.

Comparative System Evaluation

Modular Platform Versus Integrated Downlights

Modular recessed systems offer a fundamentally different lifecycle profile compared to fully integrated downlights. With a modular architecture, the housing remains permanently installed while the light engine, optic, and driver can be replaced independently. This separation reduces invasive ceiling work when performance adjustments or component replacement becomes necessary. In environments where access panels are limited or finishes are highly refined, avoiding ceiling disturbance is a significant advantage.

Integrated fixtures may appear simpler in extremely shallow plenums or cost-driven installations. However, their sealed construction limits adaptability. When output, beam distribution, or driver performance needs to be modified, the entire fixture typically requires removal and replacement. That approach increases labor cost and introduces risk to ceiling finishes. Over time, modular systems provide greater flexibility because performance variables can be refined without structural disruption.

Modular Systems Versus Traditional Can and Retrofit Solutions

Traditional can housings paired with retrofit LED inserts were originally designed to modernize legacy incandescent infrastructure. While effective in some retrofit contexts, this approach often lacks the optical integration and thermal optimization found in purpose-built modular systems. Retrofit modules rely on legacy housing geometry that was not engineered specifically for high-performance LED optics.

Thermal pathways in retrofit configurations may also be less efficient. LED modules installed into traditional cans can experience higher junction temperatures due to limited heat dissipation design. Purpose-built modular systems such as the X Series are engineered as cohesive platforms, with thermal management, optics, and driver integration designed together. This integrated engineering produces more predictable lumen maintenance and beam consistency over time.

When the X Series Is Strategically Appropriate

The X Series platform is particularly effective in applications that prioritize beam control precision, dimming performance, and long-term serviceability. Environments that demand layered lighting, warm dim behavior, or adjustable accent illumination benefit from the modular flexibility. The ability to pair a warm-dim 30-degree module such as the XMD1093WSPT with the appropriate housing and trim allows output, beam control, and ceiling appearance to be tuned within the same X Series architectural family.

However, selection should always be contextual. In extremely shallow plenums where housing depth cannot be accommodated, alternative solutions may be necessary. The decision should not be based solely on fixture cost, but rather on system architecture and long-term operational strategy. Evaluating total system performance rather than initial procurement expense leads to more durable and predictable outcomes.

Structured Specification Workflow

Phase 1: Constraint Definition and Feasibility

A disciplined workflow begins with confirmation of ceiling and plenum constraints. Housing selection, including new-construction components such as the X2NCS, must align with structural framing, ceiling build-up, plenum availability, and all rating or access requirements confirmed in the project documents. Without resolving mechanical feasibility first, photometric modeling may produce layouts that cannot be physically installed.

Feasibility review also includes electrical routing pathways and driver accessibility. Plenum congestion should be assessed to ensure that both housing and driver configurations can be accommodated. Defining constraints early reduces redesign during construction and establishes clear boundaries for performance modeling.

Phase 2: Photometric Modeling and Output Calibration

Once constraints are defined, photometric targets and uniformity criteria should be established. Modeling software should be used to evaluate horizontal and vertical illuminance based on mounting height and reflectance assumptions. Beam angle selection, including concentrated 30-degree distributions such as the previously referenced XMD1093WSPT module where appropriate, should be validated against target size, mounting height, and contrast requirements.

Lumen package calibration follows modeling results. Over-specification should be avoided, particularly in low ceiling environments. Selecting the appropriate output ensures visual comfort while supporting broader high efficiency commercial lighting strategies. Performance modeling should simulate maintained light levels rather than relying solely on initial lumen values.

Phase 3: Optical and Trim Configuration

After lumen and beam characteristics are confirmed, trim geometry and reflector finish must be selected. Shielding angle, regress depth, and reflectance all influence perceived brightness and glare control. Micro flange trims, including the X2TRDSWHMF where a round beveled white trim is appropriate, should be coordinated with ceiling finish quality, cut tolerance, and the desired aperture appearance.

This phase also includes verification of adjustable modules or specialty trims where required. Beam behavior at tilt angles and cutoff performance should be reviewed in simulation. Optical decisions directly affect occupant comfort and spatial perception.

Phase 4: Electrical and Control Integration

Driver selection and dimming protocol compatibility should be confirmed next. Compatibility between fixture drivers and the specified control system must be validated before procurement. Warm dim or advanced dimming behaviors require particular attention to driver performance at low output levels.

Code compliance and emergency integration should also be finalized during this phase. Circuit separation, emergency lumen output, and wiring topology must be coordinated with the electrical engineer. Completing this phase ensures that performance objectives align with regulatory requirements.

Phase 5: Verification and Documentation

The final phase involves comprehensive submittal verification. IES files should match the selected module and optic configuration. Driver voltage compatibility and control protocol alignment must be confirmed in documentation.

A structured verification process reduces ambiguity during installation. Clear documentation of housing type, module selection, trim finish, and driver configuration ensures that procurement and installation teams execute the design accurately. Alignment between design intent and field execution depends on disciplined documentation.

Documentation and Submittal Review Checklist

Photometric Verification

Submittal review must confirm that IES files correspond exactly to the specified lumen package and optic. Beam angle and field angle values should match modeled assumptions. Any deviation between modeled data and submitted data must be resolved before approval.

Maintained illuminance calculations should be cross-checked against specified lumen output and Light Loss Factor assumptions. If reflector finish or trim configuration differs from modeled conditions, adjustments may be necessary. Photometric verification ensures that the final installation delivers expected performance.

Electrical and Driver Validation

Driver specifications should align with the defined dimming protocol and voltage requirements. Compatibility between modules and drivers must be documented clearly. For modules such as the XMD1093WSPT, the listed TRIAC/ELV dimming compatibility should be confirmed against the actual dimmer, driver behavior, connected load, and desired low-end performance for the project.

Emergency integration documentation must specify circuit configuration and inverter compatibility where applicable. Voltage range and load calculations should be reviewed to prevent overloading or instability. Electrical validation prevents field performance issues that are costly to correct after installation.

Trim and Module Pairing Confirmation

Trim selection, including reflector finish and flange type, must correspond precisely with the specified module. Pairing accuracy ensures that shielding angle and beam performance match design intent. Misaligned trim and module combinations can alter luminance distribution and glare behavior.

Submittal documentation should clearly list housing type, module model, optic distribution, trim finish, and driver configuration. Thorough review eliminates ambiguity between procurement and installation teams. Comprehensive documentation protects performance integrity and ensures that the DMF X Series system functions exactly as designed.

To Conclude

Selecting within the DMF X Series platform requires treating the recessed lighting package as a coordinated system rather than a single product choice. Housing feasibility, optical configuration, lumen calibration, trim geometry, and driver compatibility must be resolved as interdependent variables. When each component is selected based on clearly defined mechanical constraints, photometric modeling, glare control requirements, and electrical compatibility, the result is predictable performance rather than field improvisation. The modular structure of the X Series rewards disciplined sequencing while reinforcing the broader performance and serviceability advantages of modular DMF lighting systems.

A rigorous approach ensures that the installed system performs exactly as modeled, dims as intended, maintains visual comfort over time, and remains serviceable without invasive ceiling work. By evaluating system architecture instead of focusing solely on initial fixture cost, specifiers can deliver durable outcomes that align with long-term operational priorities. In applications where beam precision, dimming quality, and maintainability matter, structured configuration within the X Series platform provides a technically sound and performance-driven solution.
