DMF M Series Recessed Lighting: A Complete Professional Guide

• DMF M Series recessed lighting uses a modular housing, LED module, and trim system that improves serviceability, thermal performance, and long-term upgrade flexibility.
• DMF M Series 93 CRI 1000-lumen warm dim modules shift from 3000K to 1800K as they dim, closely replicating traditional incandescent behavior.
• DMF M Series performance depends on correct beam selection, compatible dimming protocols, and proper driver load planning to prevent glare, flicker, and electrical instability.

The DMF M Series has become a preferred choice in architectural lighting because it approaches recessed downlighting as a long-term system rather than a temporary fixture solution. This distinction is valuable for professionals managing changing client demands, evolving energy codes, and advanced lighting controls. The M Series operates through a three-part structure: the housing creates the ceiling infrastructure, the LED module defines output and color performance, and the trim shapes the visible aperture and glare control. This layered design simplifies specification based on rough-in requirements, lighting performance, and finished ceiling aesthetics.

This article examines the M Series from a technical perspective for experienced designers, engineers, contractors, and system integrators. It explores housing construction, optical performance, driver operation, and compliance factors within practical project environments. The discussion highlights specific components that demonstrate how the platform performs in real-world applications, especially in residential and commercial new construction projects where adaptability, efficiency, and long-term serviceability are critical considerations.

System Architecture: A Modular Platform Engineered for Professionals

Housing as Long-Term Infrastructure

In a modular lighting system, the housing functions as the structural and electrical backbone rather than a simple rough-in accessory. The DMF Lighting M4NCRS 4" Round Standard M Series Housing New Construction Downlight should therefore be understood as the core infrastructure component within the M Series platform. According to the linked BuyRite Electric product page, the M4NCRS is a 4-inch round new-construction housing developed for use with compatible DMF M Series modules and trims. The housing is intended for installation during the rough-in phase, integrating with framing before drywall and finish operations are completed and establishing the permanent ceiling aperture location early in construction.

According to the published product data, the housing is designed for insulation contact applications and supports airtight performance, making it appropriate for high-efficiency building envelopes. By locking in the mechanical and electrical framework during new construction, the M4NCRS allows module and trim selections to be finalized later without disturbing ceiling finishes. This sequencing advantage supports phased specification decisions while maintaining ceiling integrity.

From a project management standpoint, early commitment to the housing preserves downstream flexibility. Once framing and branch circuitry are complete, designers can refine lumen output, beam distribution, color temperature strategy, or warm-dim functionality by selecting different M Series modules without replacing the installed infrastructure. In high-end residential projects and design-driven commercial environments where revisions are common, this modular adaptability reduces rework and preserves installation efficiency.

Mechanical Interface and Field Modularity

The mechanical interface between housing and module is engineered for repeatable, tool-less engagement. Installers can complete trim-out efficiently and consistently, minimizing variability between crews. In projects involving dozens or hundreds of apertures, this consistency translates into measurable labor savings and fewer post-installation corrections.

More importantly, the interface enables long-term serviceability. If lighting needs change due to evolving code requirements or client preference, the module can be replaced without opening ceilings. The housing remains intact, protecting drywall finishes and insulation. This transforms the downlight from a disposable component into a maintainable system element aligned with broader architectural lighting performance and serviceability priorities.

Thermal Management and Performance Stability

Thermal performance should stay tied to selection and installation: verify housing compatibility, insulation conditions, module output, and plenum clearance before specifying higher-output or warm-dim modules. Poor thermal conditions can shorten driver life, accelerate lumen depreciation, and create inconsistent color behavior. In the M Series, thermal responsibility is distributed between the module heat sink and the housing assembly to promote effective dissipation into the plenum environment.

Stable thermal performance becomes particularly critical when specifying higher output or warm dim modules. Color shifts along a dimming curve can become unpredictable if junction temperatures fluctuate excessively. By maintaining controlled operating conditions, the system supports stronger L70 and L80 projections and preserves color consistency across large installations. For professionals reviewing LM-80 and TM-21 data during specification, this architecture provides tangible confidence in long-term performance.

Optical Engineering and Photometric Precision

Beam Distribution Strategy

The M Series is built around controlled beam distributions rather than broad, undifferentiated light spread. Beam selection should be tied to ceiling height and task, particularly in architectural recessed lighting applications where beam control and glare management directly affect visual comfort. This flexibility is essential in projects where layered lighting strategies demand coordination between ambient, task, and accent layers.

Improper beam selection can lead to wall scalloping, excessive brightness contrast, or insufficient vertical illumination. In residential kitchens with moderate ceiling heights, a flood distribution often provides balanced ambient coverage. In hospitality corridors or galleries, narrower distributions may emphasize artwork or architectural details without spilling light into adjacent surfaces. Photometric modeling should incorporate both CBCP values and field-to-beam ratios to achieve predictable results.

Reflector Geometry and Glare Control

Glare control often separates basic code-compliant lighting from installations that achieve a more refined visual experience. Within the M Series platform, the DMF Lighting M4TRSWH 4" Round Beveled Integrator Recessed Downlight, White Finish functions as the finished trim element, where aperture depth and edge geometry influence shielding performance and perceived brightness. According to the linked BuyRite Electric product page, the component is a 4-inch round beveled trim in a white finish intended for use with compatible DMF M Series housings and modules.

Its beveled aperture profile recesses the light source slightly above the ceiling plane, increasing the effective shielding angle while maintaining a restrained architectural appearance appropriate for contemporary interior environments. This recessed geometry can help reduce high-angle brightness and minimize direct visibility of the LED source, particularly in spaces where ceilings are viewed from extended or shallow sightlines.

The white finish further supports visual integration with adjacent ceiling surfaces by reducing contrast around the aperture opening. In interiors incorporating reflective materials such as polished stone, lacquered millwork, or glossy flooring, careful trim geometry can assist in controlling discomfort glare while preserving consistent luminance balance throughout the space. A more recessed aperture condition also helps prevent the downlight from becoming visually dominant while maintaining the intended optical performance of the selected module.

Color Quality and Warm Dim Performance

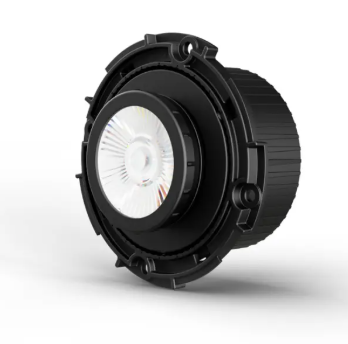

Color rendering performance cannot be reduced to a single CRI metric. The DMF Lighting DRD2M1093WGAT LED General Recessed Downlight Module serves as a representative M Series module where output, color quality, and dimming behavior are coordinated. The distributor product page specifies a 1000-lumen package with 93 CRI and warm-dim performance ranging from 3000K to 1800K. This configuration aligns with living areas, dining rooms, hospitality suites, and premium residential applications where high color fidelity and controlled ambience are part of the design criteria.

The linked BuyRite Electric product page further notes that the warm-dim profile gradually shifts from approximately 3000K at full output to about 1800K at lower dimming levels. Instead of only reducing light intensity, the module produces a progressively warmer appearance intended to emulate the visual behavior associated with traditional halogen sources. In lounge, dining, and hospitality environments, this warmer low-level illumination can contribute to a softer and more intimate visual atmosphere without the complexity of dedicated tunable-color systems.

When coordinated with compatible dimming controls, the module is intended to maintain smooth output reduction while preserving consistent color transition characteristics. Within high-end residential and hospitality applications, the combination of 93 CRI performance and warm-dim capability supports both material color accuracy and adaptable ambient lighting from a single recessed aperture.

Output Levels and Spacing Logic

A 1000-lumen package within a 4-inch aperture offers significant design flexibility. It supports wider spacing in open-plan layouts while maintaining appropriate footcandle levels on task surfaces. At the same time, it dims gracefully for evening scenes, preserving layered lighting hierarchies rather than overwhelming them.

Professionals should evaluate spacing using both lumen method calculations and point-by-point photometric analysis. Surface reflectance, ceiling height, and task orientation influence required illumination levels. The objective is balanced luminance across horizontal and vertical planes, not simply maximizing brightness. Properly specified, the module output aligns with both aesthetic and energy performance goals.

Driver Architecture and Electrical Performance

Constant Current Regulation and Reliability

Stable LED operation depends on precise current control. The M Series driver configurations maintain constant current regulation to protect LED integrity and preserve color consistency. This reduces variability across fixtures and supports predictable dimming performance in large installations.

When aggregating multiple downlights on shared circuits, load planning becomes essential. Designers and electrical engineers must account for total connected load, driver efficiency, and minimum load thresholds for dimmers. In high-end residences where lighting scenes may activate dozens of fixtures simultaneously, proper load distribution prevents flicker, dropout, or nuisance tripping.

Dimming Protocol Compatibility

The dimming section should emphasize verification rather than assumption: confirm the selected module, driver, dimmer, control protocol, and minimum load behavior before installation. Warm-dim modules especially need commissioning across the full dimming range so intensity and CCT shift smoothly together. Reverse phase dimming is frequently preferred in residential environments for its smoother low-end performance. In commercial contexts, 0 to 10V provides zoning flexibility and facilitates energy code compliance.

Warm dim modules require careful commissioning. The dimming curve should be verified across multiple output levels to ensure intensity and CCT shift track cohesively. Inconsistent performance is often traced to incompatible dimmers rather than the fixture itself. Thorough testing during commissioning protects both installer reputation and client satisfaction.

Flicker and Power Quality Considerations

Low-flicker driver performance improves visual comfort and reduces perceptible modulation effects in environments where occupants spend extended periods under artificial illumination, consistent with IEEE flicker guidance. In environments where occupants record video or spend extended hours under artificial lighting, stable driver output becomes increasingly important. The M Series driver architecture maintains low flicker across its dimming range.

Power factor and total harmonic distortion also influence upstream electrical performance. High power factor reduces reactive load, and low THD minimizes interference with other sensitive equipment. In projects with dense LED installations, these characteristics contribute to overall system reliability and electrical stability.

Compliance and Code Alignment

Airtight Construction and Insulation Contact

In high-performance construction, recessed lighting can become a weak point in the building envelope. Airtight housings help prevent conditioned air loss and support blower door performance targets. Proper insulation contact ratings ensure safe installation within insulated ceilings without compromising thermal protection.

Professionals must verify that field conditions align with rated configurations. Depth of insulation, plenum clearance, and framing conditions should be reviewed during coordination meetings. Early verification avoids costly rework or inspection failures.

Energy Code Requirements and Documentation

Meeting IECC energy-code requirements requires careful coordination of fixture efficacy, dimming capability, controls integration, and lighting power density compliance. Warm dim modules must satisfy energy thresholds despite inherent spectral conversion losses associated with lower CCT operation.

Clear documentation in submittals is essential. Module efficacy data, driver compatibility, and certification listings should be included in specification packages. Coordination with authorities having jurisdiction ensures that the selected configuration aligns with local mandates and prevents delays during final inspection.

Installation Engineering and Field Execution

Rough-In Precision and Ceiling Coordination

Rough-in accuracy determines the finished result. Before installing M Series housings, coordinate aperture locations with framing, ductwork, sprinkler heads, ceiling finish thickness, millwork shop drawings, and fixture spacing so the final trim layout aligns cleanly with the architecture. With a new construction housing platform, placement accuracy relative to framing, millwork, and mechanical systems is critical. The housing must be aligned not only to architectural intent but also to future ceiling finishes, insulation depth, and potential obstructions such as ductwork or fire suppression lines.

Experienced contractors understand that recessed lighting interacts with other trades in subtle but important ways. Misalignment by even half an inch becomes visually obvious in minimalist interiors. Coordination meetings should address joist spacing, drywall thickness, and planned finish details such as level-five smooth ceilings or specialty plaster. Establishing layout benchmarks and confirming framing conditions before wiring begins prevents field improvisation later in the schedule.

Trade Integration and Conflict Avoidance

Lighting does not exist in isolation. HVAC diffusers, sprinkler heads, speakers, and access panels all compete for ceiling real estate. In tight plenum environments, the vertical clearance required for housings and drivers must be reconciled with duct routing and insulation thickness. Failure to coordinate early can lead to compromised placement or last-minute relocations.

In high-end residential kitchens, downlights are frequently aligned with cabinet edges and islands. Even slight deviations can disrupt symmetry. For this reason, final layout should be verified against millwork shop drawings before rough-in. In commercial projects, ceiling grid systems add another layer of complexity when coordinating modern recessed ceiling lighting layouts with architectural and mechanical systems. Aperture placement must coordinate with tile layout and structural grid lines to maintain visual order.

Retrofit Strategy and Upgrade Pathways

Evaluating Existing Conditions

Retrofit projects require careful evaluation of existing housings, wiring integrity, and plenum depth. While modular platforms allow module upgrades, compatibility with legacy cans must be confirmed. In some cases, replacing outdated housings with a modern new construction equivalent may be the more prudent long-term decision.

Electrical infrastructure should also be reviewed. Older dimming systems may not support warm dim or advanced LED drivers without modification. Assessing panel capacity, circuit loading, and control compatibility before ordering modules prevents costly surprises during installation.

Phased Modernization

One of the advantages of a modular architecture is phased modernization. A property owner may initially install static CCT modules and later upgrade to warm dim or tunable white. Because the housing remains in place, this transition involves minimal disruption to finishes.

This approach aligns well with budget cycles. Commercial properties can upgrade tenant spaces incrementally rather than executing large capital expenditures all at once. Residential clients can enhance ambiance in specific rooms over time without undertaking full ceiling renovations.

Controls Integration and Intelligent Lighting Ecosystems

Residential Control Systems and Scene Programming

In luxury residential environments, lighting rarely operates as standalone circuits. Integration with centralized control platforms allows for layered scene programming, occupancy logic, and time-of-day adjustments. When pairing recessed modules with advanced control processors, attention must be paid to dimming protocol compatibility and load balancing.

Reverse phase dimming frequently provides the smoothest low-end performance for warm dim modules. However, minimum load requirements must be respected to prevent instability. During commissioning, designers should validate scenes under actual use conditions, including low-light evening settings where minor inconsistencies become noticeable.

Commercial Zoning and Energy Compliance

In commercial projects, 0 to 10V or digital control protocols allow zoned control tied to occupancy sensors and daylight harvesting. Proper zoning strategy reflects functional requirements rather than rigid geometric grids. For example:

• Perimeter zones may respond to daylight sensors.
• Interior zones may follow occupancy patterns.
• Conference rooms may require independent scene presets.

Careful programming ensures that energy savings do not compromise user comfort within broader commercial lighting control and performance strategies. Smooth dimming transitions and stable color output reinforce occupant confidence in automated systems.

Human-Centric Lighting Applications

Tunable and warm dim technologies enable more nuanced lighting experiences. In healthcare or senior living environments, circadian-aligned programming can support occupant wellbeing. However, spectral stability across the tuning range is critical. Shifts in color rendering at intermediate CCT levels can undermine visual clarity during tasks.

In residential settings, warm dim functionality supports natural transitions from daytime activity to evening relaxation. Designers should calibrate intensity and CCT changes gradually to avoid abrupt perceptual shifts. When executed thoughtfully, dynamic lighting becomes an unobtrusive enhancement rather than a technological distraction.

Performance Longevity and Lifecycle Economics

Lumen Maintenance and Chromatic Stability

Long-term performance must be evaluated through lumen maintenance projections and real-world operating conditions. LM-80 testing provides foundational data, while TM-21 extrapolation offers insight into projected L70 or L80 lifespans. Lower junction temperatures and controlled driver operation contribute directly to these outcomes.

Color stability is equally important. In large installations, even slight chromatic drift between fixtures becomes visually apparent over time. Robust thermal management and quality phosphor selection mitigate this risk, preserving uniformity across ceilings and preventing patchwork appearance in aging systems.

Serviceability and Maintenance Planning

Field-replaceable modules redefine maintenance economics. Instead of replacing entire fixtures when output degrades or technology advances, facility managers can swap modules while preserving housings. This reduces material waste and lowers labor costs associated with ceiling repairs.

Warranty terms should be reviewed carefully. Understanding coverage duration for drivers, modules, and housings allows accurate forecasting of replacement cycles. In commercial properties, predictable maintenance planning supports operational budgeting and minimizes downtime.

Comparative Market Positioning

Versus Integrated Downlights

Integrated wafer-style downlights offer simplicity and low upfront cost but lack serviceability. When drivers fail, full fixture replacement is often required. In finished ceilings, this can result in visible patching or mismatched finishes.

A modular platform shifts the cost curve. While initial material cost may be higher, long-term adaptability offsets that investment. In projects where longevity and architectural integrity are priorities, serviceable systems provide measurable financial and operational benefits.

Versus Legacy Can and Lamp Systems

Traditional can and lamp assemblies suffer from lamp variability and limited optical precision. LED retrofit lamps improve efficiency but cannot replicate the integrated reflector geometry and engineered beam control of a dedicated module.

The modular system integrates optics, electronics, and thermal management cohesively. This results in consistent performance across multiple installations. For professionals who rely on predictable photometric modeling, such consistency simplifies both design and client communication.

Sustainability and Environmental Considerations

Energy Performance and LPD Strategy

High-efficacy modules contribute to achieving lighting power density targets under stringent energy codes while supporting broader high efficiency commercial lighting strategies. By optimizing downlight efficiency, designers gain the flexibility to incorporate decorative or specialty luminaires elsewhere without exceeding allowable wattage.

Integration with daylight harvesting and occupancy sensors further enhances energy savings. Automated dimming during periods of adequate daylight reduces consumption while maintaining target illumination levels. This supports both code compliance and long-term operational savings.

Material Efficiency and ESG Alignment

Modular lighting supports resource efficiency by extending fixture lifespan. Rather than discarding complete assemblies during upgrades, only the functional light engine is replaced. This reduces landfill waste and aligns with corporate sustainability initiatives.

For clients pursuing environmental certifications, serviceable lighting systems demonstrate commitment to responsible material use. While lighting is only one component of a broader ESG strategy, it represents a visible and measurable improvement over disposable alternatives.

Common Specification Pitfalls

Common M Series specification mistakes include selecting the housing before confirming ceiling conditions, choosing a module without checking dimming compatibility, using the wrong beam spread for the ceiling height, ignoring trim appearance in reflective interiors, and overloading dimmers with too many LED drivers. Among the most common are mismatched dimming protocols, incorrect beam selection relative to ceiling height, and inadequate coordination with insulation requirements.

Additional pitfalls include:

• Aggregating excessive driver load on a single dimmer.
• Neglecting glare control in reflective interiors.
• Failing to confirm trim compatibility with ceiling thickness.
• Overlooking inrush current when planning breaker capacity.

Rigorous documentation, cross-disciplinary coordination, and pre-installation testing mitigate these risks and protect project outcomes.

Strategic Positioning in Professional Practice

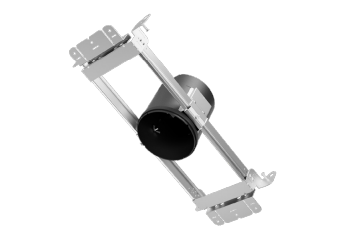

Specify the M4NCRS housing when new-construction rough-in flexibility is the priority, pair it with the M4TRSWH white beveled trim where a clean 4-inch round aperture is desired, and use the DRD2M1093WGAT module when the project requires 1000 lumens, 93 CRI color quality, and 3000K to 1800K warm-dim performance. When housing, module, and trim are specified deliberately, the system delivers stable photometrics, refined visual integration, and long-term serviceability. It performs particularly well in high-end residential, hospitality, healthcare, and premium commercial environments where lighting quality directly influences occupant experience.

For professionals who prioritize adaptability and performance integrity, a modular recessed system offers clear advantages. Properly coordinated with controls, energy code requirements, and architectural intent, it becomes a durable infrastructure component rather than a disposable fixture. In a market saturated with short-lifecycle lighting products, that durability represents both technical rigor and strategic foresight.
