A Complete Guide to SensorWorx Sensors and Switches

• PIR occupancy sensors detect motion only when body heat crosses lens-defined zones; placement and lens choice must match real occupant movement.
• LED drivers often draw high inrush at turn-on; exceeding relay inrush tolerance causes chatter or welded contacts, requiring fewer drivers or contactors.
• 0–10V dimming uses low-voltage analog control wiring; poor separation from line voltage induces noise that creates flicker and unstable dimming.

SensorWorx devices tend to show up on projects where the expectations are very practical: deliver reliable occupancy response, integrate cleanly with modern LED loads, and give owners a control system that stays stable after the first round of tenant changes. For experienced teams, the challenge is rarely “what does this sensor do.” The challenge is selecting the right sensing approach for the actual motion patterns in the space, then pairing it with an output stage and topology that survives real driver inrush, real wiring constraints, and real power quality. When those pieces line up, the system disappears into the background, which is the highest compliment a control system can earn.

This guide is designed to support that outcome by treating sensors and switches as engineered system components rather than isolated products. It focuses on how to translate space behavior into sensing requirements, how to validate coverage in real geometry, how to avoid the electrical pitfalls that cause flicker, ghosting, chatter, or welded contacts, and how to commission with a repeatable workflow that scales. The four specified products are woven into the architecture where they naturally fit, including low-voltage ceiling dual-technology sensing, line-voltage manual-on wall sensing, low-voltage stand-alone 0–10V dimming control, and momentary low-voltage decorator inputs for overrides.

Scope, assumptions, and how to use this guide

Intended reader, boundaries, and technical depth

This guide targets professionals who already specify, install, integrate, or commission lighting controls. The content assumes comfort with circuit topologies, relay and electronic switching characteristics, LED driver behavior, control wiring separation, and the practical mechanics of troubleshooting on occupied sites. Basic definitions are intentionally minimized in favor of engineering constraints that determine whether a deployment remains stable after turnover. The objective is to provide a reference that supports design decisions and reduces rework, not a primer on occupancy sensing.

Scope boundaries matter because SensorWorx devices may be deployed as stand-alone room controls, as low-voltage inputs to power packs, or as part of centralized relay logic. The same “sensor” label can refer to very different electrical and operational behaviors depending on supply class, output stage, and intended architecture. Throughout the guide, the framing stays consistent: select by application constraints, validate coverage in real geometry, engineer the output stage for actual load behavior, then commission with a repeatable workflow. When those steps are followed, the system tends to behave predictably even under imperfect field conditions.

How to read and apply the chapters in practice

The guide is structured to match the lifecycle of a control project from selection through turnover. Portfolio taxonomy and selection methodology help narrow device families and interfaces without getting lost in part lists. Sensing physics and coverage engineering, then translate the room into a detection problem: motion vectors, obstructions, and mounting height define what will be seen and what will be missed. Electrical interface engineering follows because most stubborn issues originate in load behavior, wiring topology, or power quality rather than the sensing element itself.

Commissioning and troubleshooting are presented as engineering workflows, not as generic checklists. They are designed to scale across many rooms and multiple field teams while producing consistent results and defensible documentation. Readers who are deep in commissioning can jump straight to the commissioning and diagnostics chapters, then loop back to selection and coverage for root cause context. Readers who are specifying systems should focus on the taxonomy, application-driven selection, and electrical interface chapters, because those prevent the mistakes that are expensive to fix later.

Portfolio taxonomy and SKU decoding

Device families and where they fit

SensorWorx devices can be grouped into three practical buckets: ceiling-mounted sensors, wall or corner sensors, and switch-format devices. Ceiling sensors tend to be selected when overhead placement offers unobstructed sight lines and when zone geometry benefits from a 360-degree projection into the space. Wall and corner sensors can excel in boundary detection and entry path pickup, but they can also be more exposed to nuisance triggers from doorways and adjacent traffic. Switch-format devices combine user interface with sensing and are constrained by the physical location dictated by code, ergonomics, and existing wiring.

A second dimension is control topology: line-voltage switching versus low-voltage signaling. Low-voltage sensors are often used as inputs to power packs, relay panels, or contactors, which can be more tolerant of high inrush and multi-circuit coordination. Line-voltage switch sensors can simplify small-room retrofits but require careful validation of neutral availability, box fill constraints, and output stage suitability for the connected loads. Practical taxonomy should therefore be based on mounting form and sensing method, and also on supply class and output interface.

SKU decoding as risk control

SKU decoding is a reliability step, not a paperwork step. Devices that look similar in a catalog can differ materially in supply voltage range, whether a neutral is required, lens pattern, coverage intent, and output stage type. These differences show up as field failures when a part substitution is made late, when drawings do not match actual wiring in the wall, or when load inrush assumptions were never validated. A disciplined decoding process prevents the classic situation where the correct sensing technology is ordered with the wrong optics or where the correct optics are paired with an output stage that cannot tolerate the load bank.

A practical decoding checklist should force explicit confirmation of the elements that commonly break projects:

• Supply class and voltage range, including whether the device is intended for low-voltage control power.
• Output type, such as relay switching, electronic switching, analog dimming output, or dry-contact signaling.
• Lens pattern and intended mounting height envelope.
• Override and auxiliary input behavior, including whether a “manual” control is a momentary input or maintained switching.

When these items are pinned down early, installation and commissioning become predictable rather than exploratory.

Application-driven selection methodology

Translating space behavior into sensing requirements

Selection should start with the occupancy signature of the space. A private office dominated by seated work must handle micro motion at a desk without nuisance offs, while a corridor is dominated by directional travel and often tolerates longer time delays for comfort and safety. A storage room may accept more aggressive timeouts if the user experience is acceptable to the owner, but a classroom or conference room typically needs robust hold performance because occupants can remain still for long periods. The space use case sets the false-off tolerance, which is often the most important performance requirement.

Space geometry then refines the requirement. Partition height, glass walls, racking, and shelving create blind pockets for line-of-sight technologies and create unexpected propagation paths for secondary technologies. Mounting height changes zone density at the workplane and can make a sensor that performs well at 9 feet perform poorly at 20 feet for minor motion. If a space has multiple zones of use, such as a collaboration area plus a presentation wall, selection should consider either multi-sensor coverage or an optic pattern that prioritizes the most critical zone. “Center of room” placement is rarely a robust engineering rule in modern interiors.

Electrical and control intent constraints that narrow the options

After sensing requirements are defined, electrical constraints rapidly narrow choices. Voltage class and neutral availability are first, especially in retrofit switch locations, where drawings often misrepresent what is in the box. Load type and LED driver inrush are next because output stage failure is a high-cost callback driver. The number of drivers per switching element, whether drivers are identical, and whether any inductive devices are being switched, determine whether local switching is appropriate or whether centralized relays or contactors are a better choice. These decisions have direct implications for device selection and for wiring topology.

Control intent completes the selection. Occupancy, vacancy, partial-on, and bi-level behaviors are not just code questions; they change user experience and energy outcomes. Energy codes such as the IECC require either manual-on or partial-on user operation in many space types, depending on the adopted edition and local jurisdiction. If dimming is required, analog control integrity and driver compatibility become primary engineering topics, not feature checkboxes. If multi-location overrides are needed, the input method (momentary vs maintained) and the sequence of operation must be explicitly defined to avoid confusion at turnover. A good selection process produces not only a part number, but also an architecture sketch and a commissioning parameter envelope that the field team can follow.

Sensing physics and performance drivers

PIR performance drivers in real buildings

PIR devices respond to changes in infrared energy across zones projected by the lens. Performance depends on how zone boundaries intersect expected motion vectors, which is why minor motion at desks can be marginal if zone density is low at that distance. Thermal contrast matters as well. Sun patches, radiant surfaces, and strong HVAC discharge can reduce the signal-to-noise ratio and make detection inconsistent even when sensitivity is increased.

The most common PIR “failures” are placement and optics mismatches. If the desk is offset or partially shielded by partitions, the person may not cross enough zones to generate reliable modulation. Increasing sensitivity can increase nuisance triggers without solving the root geometry problem. A better approach is to select an optic pattern that increases zone density where the occupant sits, reposition the device to align zones with the work area, or use multiple sensors to cover pockets. Walk testing should include seated micro motion at real occupant positions, not only walking beneath the sensor.

Dual-technology logic and coupling risks

Dual-technology sensing can increase hold reliability, but behavior depends on the state logic and on how the secondary method couples through the room. An OR-style assertion of occupancy can reduce nuisance offs but may increase nuisance ons in mechanically active or acoustically reflective environments. An AND-style strategy can reduce nuisance ons but can increase nuisance offs if either channel becomes marginal due to layout, tuning, or environmental conditions. The intended logic should be understood during selection because it affects both the commissioning approach and acceptance risk.

Coupling is the field risk that creates “ghost occupancy.” Secondary methods can propagate through doorways, over partitions, and into adjacent rooms, particularly in hard-surfaced spaces with open plenums. Over-tuning range is a common cause because default settings can be left at maximum during rushed turnover. A disciplined approach starts conservatively, validates hold performance in intended occupied areas, then expands range incrementally only if needed. Stable operation is characterized by predictable transitions and low state oscillation, not by maximum range settings.

Daylight and photometric control stability (where applicable)

Daylight control is fundamentally a feedback loop. If the photosensor is strongly influenced by the controlled luminaires, dimming changes can alter measured light and trigger more dimming changes, producing hunting or perceptible modulation. Placement intent differs between open-loop strategies that “look” toward daylight apertures and closed-loop strategies that attempt to regulate a workplane proxy. Setpoint selection, deadband, and time averaging are the levers that define whether the loop behaves smoothly.

Commissioning should be performed under representative space conditions, including typical blind positions and furniture, because reflectance and daylight distribution affect measurements. Seasonal and weather variation should be considered normal operating conditions, not edge cases. Driver behavior near low-end dim levels can introduce steps or flicker that the control loop amplifies unless deadbands and averaging are tuned conservatively. A stable daylight implementation typically results from careful placement, conservative initial tuning, and verification that drivers behave predictably across the target range.

Coverage engineering: optics, patterns, and placement rules

Lens patterns and mounting height effects

Coverage should be treated as a geometry problem rather than a “coverage circle.” Lens patterns project zones whose density at the workplane changes with mounting height, and that density determines minor motion reliability. A generalized 360-degree pattern may perform well in unobstructed rooms but can underperform in corridors where zone boundaries do not align with travel direction. Corridor-specific patterns often outperform generalized optics in hallways precisely because the zone structure matches the motion vectors.

Mounting height is a design parameter, not an installation detail. High ceilings reduce zone density at the workplane unless optics are designed for that height and use case. In high-bay environments, a sensor may detect large motion reliably while missing subtle motion at the floor. The design response can include selecting height-appropriate optics, adjusting placement to focus zones on critical areas, or layering devices to cover both travel and task areas. Treating mounting height as a first-class constraint avoids marginal performance that cannot be tuned away later.

Placement heuristics and avoiding nuisance triggers

Placement should maximize desired motion detection while rejecting irrelevant motion sources. Doorway-facing placement can generate nuisance ons if corridor traffic falls within pickup zones, especially when doors remain open. Glass walls and reflective surfaces can create unexpected line-of-sight paths that expand effective pickup. Partitions and shelving create blind pockets that need to be covered intentionally rather than discovered during commissioning.

A practical placement workflow combines pre-design reasoning with verification. Identify critical occupant positions and motion vectors, then place sensors so that zones intersect those vectors with a margin. Use multi-sensor layouts when the space is partitioned into pockets or when a single placement cannot cover both entry paths and micro motion zones. Verify with walk tests that mimic real use, including seated micro motion and boundary movement. Where nuisance triggers are observed, address geometry first, then tune sensitivity, and only then adjust time delays as a last resort for comfort.

Electrical interface engineering

Powering topologies and neutral realities

Architecture begins with the choice between direct line-voltage switching and low-voltage control signaling to external switching hardware. Direct switching can reduce wiring complexity in small rooms, but it is less forgiving with high inrush banks and multi-circuit spaces. Low-voltage architectures often improve reliability by locating switching in power packs, relay panels, or contactors that can be selected specifically for inrush and duty cycle realities. The tradeoff is increased dependence on disciplined control, wiring separation, labeling, and documentation.

Neutral availability is a recurring retrofit constraint that should be verified in the field. Many switch boxes do not contain neutrals, even in buildings that appear modern on plans. Designs that assume neutrals where none exist lead to compromises that can introduce flicker, ghosting, or unstable electronics powering, depending on the device and load. Ground reference integrity also matters for analog dimming and long-run control wiring because noise coupling can corrupt signals. Treat wiring topology and conductor routing as engineered deliverables with explicit verification steps.

Output stages, inrush, and failure prevention

Relay and electronic switching outputs behave differently and should be matched to the load behavior. Relay contacts face wear mechanisms driven by inrush, inductive kick, and switching frequency. Electronic outputs can allow leakage current in the off state, which can cause LED glow or flicker depending on driver design. Evaluation should therefore include load categories and driver characteristics, not only steady-state current ratings. The number of drivers switched simultaneously, and the conditions under which they energize (cold start, vacancy start, power restoration) should be part of the design assumption set.

LED driver inrush is a frequent driver of relay welding or chatter and can create unpredictable failures that look like random device defects, making proper circuit protection planning especially important. Aggregated inrush from a bank of drivers can exceed what local switching devices tolerate, even when the steady-state current is low. Mitigation strategies include reducing driver count per switching element, using switching hardware specifically suited to high inrush, sequencing circuits where possible, or shifting switching to centralized relays or contactors. These strategies should be documented so owners understand why “simpler local switching” was not selected and what constraints drove the design.

Analog dimming integrity and driver compatibility

0–10V control should be treated as a sensitive signal channel, particularly when working with specification-grade lighting systems. Control conductors should be separated from line-voltage conductors, and long parallel runs near noisy feeds should be avoided to reduce induced noise. The control device’s source or sink behavior should be aligned with driver input expectations, and the total driver count per channel should be evaluated based on aggregate input characteristics and wiring topology. Mixed driver types on a single control channel often reduce predictability and should be avoided unless tested and documented.

Where phase-cut dimming is involved, compatibility validation should be treated as mandatory. Minimum load thresholds, forward-phase versus reverse-phase requirements, and audible noise behavior can become acceptance issues even when the electrical function is nominal. Driver behavior near low-end dim levels can cause steps or flicker that occupants interpret as system faults. In mixed retrofit environments, validation using representative fixtures and drivers is often the difference between a smooth turnover and a prolonged commissioning cycle.

SensorWorx switches: selection and wiring realities

Line-voltage switch sensors and manual-on intent

Switch-format sensors combine a user control interface with occupancy sensing, introducing constraints that are different from ceiling-mounted sensor layouts. A line-voltage manual-on-wall switch sensor is typically selected for vacancy-style operation, where occupants intentionally turn the lighting on, and the device automatically turns lights off after the programmed timeout period. The SensorWorx SWX-103-WH Wall Switch Sensor, PIR, 1-Pole, Manual-On, 120–277V, White should be used where manual-on vacancy control is required. The BuyRite Electric product listing references PIR sensing, 1-pole switching, manual-on operation, and 120–277V compatibility, making the device suitable for private offices, small conference rooms, and enclosed rooms where user-initiated lighting and automatic shutoff are both required by the control sequence.

Because sensing is tied to the switch location, coverage geometry depends on wall placement rather than optimized ceiling positioning. Field of view, furniture layout, door swing, and shelving obstructions should be checked against the sensing pattern to reduce nuisance shutoff and blind spots. In vacancy applications, poor alignment between occupant movement and the detection field can directly affect user acceptance.

Electrical coordination is equally important. Multi-gang wall boxes can increase thermal buildup and conductor fill, both of which may affect long-term device reliability. Load compatibility should be reviewed carefully, especially where LED driver inrush current or mixed lighting loads are present. Even when nominal voltage and amperage ratings appear compliant, excessive inrush can stress switching components. Verification should include neutral availability where required, load-type suitability, acceptable temperature rise within the enclosure, and a written sequence of operation that clearly reflects manual-on vacancy intent.

Low-voltage stand-alone dimming switch sensors

Some projects require low-voltage stand-alone control where luminaires are dimmed through a 0–10V signal and device power is supplied separately from line voltage. In these applications, the SensorWorx SWX-121-1-D-GY Wall Switch Sensor, Dual Tech, Auto-On, 0–10V Dimming, Stand-Alone, 12–24V, Gray is appropriate where occupancy sensing and analog dimming output must be integrated into a single wall-mounted control device. Product information published by BuyRite Electric identifies dual-technology sensing, auto-on operation, stand-alone control architecture, 0–10V dimming capability, and 12–24V operation, positioning the device for spaces where local occupancy-based dimming is required without relying on a centralized control system.

This type of device should be treated as a control node rather than a simple switch. Occupancy logic, manual override behavior, and 0–10V analog dimming output are consolidated within one wall station, making wiring quality and driver compatibility critical to system performance. Because the dimming channel is analog, it carries the signal-integrity concerns typical of 0–10V systems, including potential induced noise, grounding inconsistencies, and unstable low-end response if wiring or driver coordination is poor.

In professional deployments, the engineering review should define how occupancy logic interacts with dimming setpoints and how the 0–10V conductors are routed. Analog control pairs should be separated from line-voltage wiring and other high-noise circuits to reduce the risk of flicker or control instability. Driver behavior near minimum dimming levels should also be verified to prevent stepping, oscillation, or visible artifacts during daylight transitions, occupancy events, or manual dim adjustments. The sequence of operation should clearly state system behavior during occupancy, vacancy, and user-initiated dimming changes so occupants experience predictable control response without conflicting control layers.

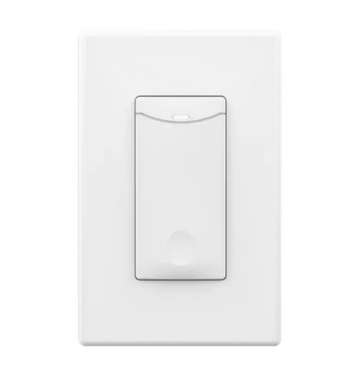

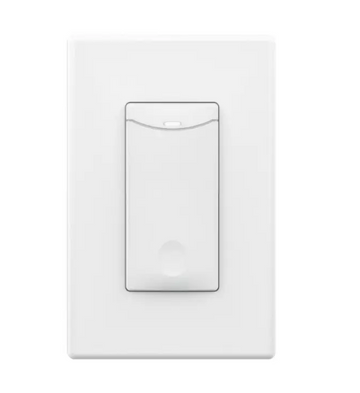

Momentary low-voltage decorator inputs

Momentary low-voltage decorator switches are commonly used as control inputs for overrides, scene recall, timed holds, or manual request functions within low-voltage control architectures. The SensorWorx SWX-801-WH Momentary Decorator Switch, 5–24V, White should be specified as a low-voltage input device rather than a load-switching component. The BuyRite Electric product listing presents the device as a 5–24V momentary decorator switch, positioning it for use with power packs, control panels, or centralized logic systems where switching occurs remotely, and the wall device operates only as a control interface.

Momentary inputs are useful because they communicate an event rather than a maintained on/off state. This supports cleaner sequence logic for timed overrides, multi-location commands, and scene recall functions. In systems where occupancy sensors or panel-based relays determine the actual lighting state, a momentary decorator switch provides a manual command layer without creating competing parallel switching paths.

Performance depends on clearly written sequence-of-operation documentation. Specifications should state whether a press initiates a timed override, recalls a preset scene, or temporarily energizes lighting during scheduled-off periods. Input conductors should be routed with the same separation discipline used for other low-voltage control wiring to reduce induced noise and prevent false triggering. When properly defined and wired, momentary decorator switches integrate cleanly with occupancy logic and centralized control systems without creating conflicting control states.

Control behaviors and sequences of operation

Occupancy, vacancy, partial-on, and priority rules

Control behavior should be documented as explicit state logic rather than implied by a part number. Occupancy mode, vacancy mode, partial-on, and bi-level strategies define not only energy outcomes but also user satisfaction and complaint rates. The sequence should specify re-entry behavior, whether manual inputs override automatic behavior, and how long overrides persist. Priority rules matter when schedules, daylight control, and occupancy logic all interact, because conflicts without clear precedence can create unpredictable behavior that is difficult to troubleshoot.

Operational edge cases should be addressed up front. Cleaning mode, presentation mode, and after-hours access patterns frequently create the “exceptions” that become the dominant behavior in certain facilities. Power-cycle behavior should be described explicitly, including what state the system returns to after a brownout and whether lights default on, default off, or resume the prior state. When these rules are written clearly and validated during commissioning, acceptance becomes smoother, and ownership expectations align with actual behavior.

Time delay and sensitivity tuning strategy

Time delay and sensitivity determine acceptance more often than any other settings. Excess sensitivity can increase nuisance ons and state oscillation, while conservative sensitivity can increase nuisance offs, especially for seated micro motion. A stable tuning strategy starts with baseline profiles by space type, then applies controlled adjustments based on observed behavior under realistic conditions. The goal is not maximum sensitivity; the goal is an adequate margin for the motion that matters while rejecting irrelevant triggers.

A disciplined tuning workflow changes one variable at a time and validates the result. Geometry should be addressed before sensitivity whenever possible, because many sensitivity “fixes” create nuisance triggers elsewhere. Time delay should be tuned with user experience and code constraints in mind, but time delay should not be used to hide poor coverage. When daylight control is present, stability should be prioritized first with deadbands and averaging, then energy capture can be increased gradually after flicker risk is eliminated. Documenting final settings is critical so future service work does not restart tuning from scratch.

Dimming behavior integration with sensing

When dimming is part of the system, transitions become as important as steady-state levels in modern commercial L

ED lighting environments. Occupancy-on behavior should specify whether lights go to a preset level, to the last level, or to a daylight-influenced level. Vacancy-off behavior should specify whether lights snap off, fade down, or go to a low background level for safety. These decisions influence both user satisfaction and driver stress, particularly if rapid cycling occurs in spaces with intermittent traffic.

Dimming control integrity also depends on wiring discipline and driver compatibility. Noise coupling on 0–10V conductors can create visible instability that occupants interpret as defective fixtures. Driver non-linear behavior near the low end can produce steps that feel like flicker, even if the control signal is stable. Commissioning should include verification of transitions under typical daylight conditions and occupant patterns, not only testing in empty rooms. A good dimming integration feels consistent and predictable to occupants, even when the underlying control logic is complex.

System architectures and integration patterns

Stand-alone room control patterns

Stand-alone room control can be effective when loads are modest and room boundaries are clear. Local control reduces wiring complexity and can simplify troubleshooting because the control loop is contained. However, stand-alone designs still require system thinking: coverage must be valid for the motion of interest, output stages must be appropriate for load behavior, and manual control must interact predictably with automatic logic. Multi-circuit rooms require explicit decisions about whether circuits are ganged, sequenced, or independently controlled, and these decisions should be reflected in wiring diagrams and sequences.

Stand-alone designs also benefit from clear labeling and as-built documentation. Installers and service teams need unambiguous definitions of line, load, and control conductors. Override strategies should be explicit, including whether an override is a parallel switching path or a logical input that changes behavior. Without this clarity, a simple room can become a recurring service call because the behavior is not easily explained or reproduced. When stand-alone intent is clearly defined and documented, turnover is smoother, and post-occupancy changes are easier to manage.

Low-voltage sensor input to power packs or panels

Low-voltage architectures often improve reliability when loads have high inrush or when spaces span multiple circuits. In these systems, sensors provide inputs and switching occurs in power packs, relay panels, or contactors selected for the electrical reality. This approach supports scalability, makes it easier to coordinate multi-circuit control, and can reduce the stress on room-level devices. It also supports more flexible override strategies, including momentary inputs and centralized logic handling.

The main requirement is integration discipline. Control wiring must be separated from line voltage, labeled consistently, and mapped clearly to zones and outputs. Long control runs require attention to reference integrity and noise coupling, especially for analog dimming conductors. Commissioning must validate not only local sensing but also the end-to-end response through the switching hardware. When correctly implemented, low-voltage architectures often have a lower long-term service burden because switching hardware is centralized and can be maintained without disturbing occupied spaces.

BAS, DDC, and multi-system coordination

When occupancy and daylight signals interface with BAS or DDC systems, the interface should be treated as a contract. Signal type, normal state, behavior under loss of power, and expected latency should be defined and verified. Dry-contact interfaces still require clarity around normally open versus normally closed and how the receiving system biases the input. Analog interfaces require scaling definitions and reference integrity, and long runs increase the risk of noise-induced errors.

Priority rules must be explicit when schedules, occupancy logic, and HVAC strategies interact. If schedules suppress auto-on or force-off regardless of occupancy, that behavior must be clearly stated and tested. If HVAC setback uses occupancy state, timing relationships should be coordinated to avoid discomfort and unnecessary cycling. Commissioning should include end-to-end validation of these interactions, not only device-level walk tests. Clear interface contracts reduce cross-team disputes and improve owner confidence.

Installation engineering and field QA

Pre-commission electrical and mechanical verification

Pre-commission QA prevents avoidable troubleshooting later. Verification should include supply voltage at the device location, neutral presence where required, termination integrity, and conductor routing that matches the intended topology. Mechanical considerations matter as well: a sensor that sags, rotates, or shifts in a ceiling tile effectively changes coverage and can create intermittent failures that look like tuning problems. Devices installed near diffusers or vibrating structures can experience environmental conditions that push performance toward edge cases.

Box fill and thermal context should be verified for switch-format devices. Multi-gang configurations can trap heat and create long-term reliability issues even when wiring is electrically correct. Conductor management and strain relief affect termination longevity, especially in retrofit boxes with limited space. A structured QA punch list should be resolved before commissioning begins, because commissioning time should be spent validating behavior and tuning sequences, not correcting wiring and mounting issues that could have been caught earlier.

Separation, routing, and labeling discipline

Control wiring separation is a reliability requirement, especially for analog dimming conductors and sensitive input lines. Low-voltage conductors routed alongside noisy line-voltage feeders are more likely to experience induced noise that shows up as flicker, false triggers, or unstable readings. Routing should minimize long parallel runs near high-current conductors and should respect best practices for separation. Where control and power must cross, crossings should be perpendicular and intentional.

Labeling is the operational backbone of a scalable deployment. Sensors should be mapped to zones, zones mapped to outputs, and outputs mapped to circuits in a way that service teams can follow without reverse engineering. As-built documentation should reflect what was installed, not what was designed, because field routing and last-minute changes are common. Clear labeling reduces commissioning time, improves troubleshooting speed, and makes future modifications safer. Projects that invest in labeling discipline tend to retain control functionality longer because maintenance teams can service systems confidently.

Commissioning workflow: repeatable and inspection-ready

Baseline profiles, walk tests, and settings capture

Commissioning should scale through standard profiles and controlled variation. Baseline settings by space type provide a starting point, but validation through walk tests is required to ensure coverage matches the space. Walk tests should replicate real occupancy patterns, including seated micro motion, boundary movement near doorways, and the typical paths occupants take. Testing only by walking beneath a sensor can create false confidence and can miss the failure mode that matters most: nuisance-offs during normal use.

Settings capture should be treated as an explicit deliverable. Record time delay, sensitivity, mode selections, and any special behaviors such as partial-on or bi-level operation. Document any deviations from baseline profiles and the reason for the deviation, such as partitioning differences or unique occupant behavior. This documentation prevents rework after turnover because future teams can understand intent quickly. It also supports inspection and acceptance because functional verification can be tied to documented settings and test results.

Layered commissioning for dimming and daylight behavior

When dimming and daylight control are present, commission in layers. Start by validating occupancy behavior and stable switching or dimming transitions without daylight influence. Then introduce daylight control and tune for stability, focusing on deadbands and averaging so the system does not hunt. Only after stability is verified should energy capture be increased by tightening targets or reducing deadbands. This staged approach reduces the risk that multiple interacting loops create instability that is difficult to diagnose.

Commissioning should also validate override behavior and power-cycle response. Multi-location control inputs, momentary overrides, and schedule interactions must behave consistently with the sequence of operation. Power restoration behavior should be tested because brownouts and resets are common in real facilities. If behavior changes on restoration, owners should know and agree with that behavior. A commissioning process that validates layered behavior produces predictable outcomes and reduces the service burden that often follows complex control deployments.

Troubleshooting and root-cause diagnostics

Symptom categorization and test-driven isolation

Troubleshooting becomes efficient when symptoms are categorized into a small number of diagnostic buckets: nuisance off, nuisance on, flicker or instability, ghosting, relay failure, and intermittent resets. Each category maps to different likely causes and test methods. Nuisance offs often trace to coverage geometry, partitions, or thermal contrast issues in PIR-dominant installations. Nuisance ons often trace to doorway pickup, reflective coupling, or overly aggressive range settings in secondary sensing.

A test-driven approach isolates variables rather than relying on trial-and-error tuning. For nuisance offs, verify micro motion detection at real occupant locations and evaluate whether zone geometry supports that motion before increasing sensitivity. For flicker, isolate by disabling daylight control and verifying driver behavior independently, then reintroduce layers to identify whether the issue is loop tuning or noise coupling. For ghosting, evaluate leakage paths, neutral integrity, and driver minimum-load behavior, and validate with a known compatible load where practical. This method reduces time on site and prevents settings changes that create new problems elsewhere.

Electrical failure modes: inrush, leakage, noise, and resets

Relay chatter and welded contacts often point to inrush exposure rather than a defective relay. If many drivers energize simultaneously, aggregated inrush can exceed the tolerance of local switching hardware even when the steady-state current is low. Diagnostics should include estimating driver count and inrush risk, then determining whether the switching strategy should change, such as reducing drivers per element or using external relays or contactors. Inductive kick from coils can also stress contacts and electronics if suppression is not present.

Ghosting and low-level glow often point to leakage current paths, especially with electronic outputs or certain driver designs. Noise-induced instability often points to control wiring routing and separation problems, especially on 0–10V conductors. Intermittent resets frequently point to power quality issues, loose terminations, or shared neutral problems that affect device power integrity. Addressing these issues often requires electrical hygiene improvements rather than sensor replacement. A troubleshooting workflow that checks topology, routing, and load characteristics before swapping devices typically resolves issues faster and with fewer repeated site visits.

Documentation, submittals, and specification package

Submittal review and preventing mismatches

Submittal review should be treated as technical validation, not as a paperwork milestone. Confirm supply class, voltage range, neutral requirements, output stage suitability by load category, and lens pattern intent by mounting height. Confirm that the sequence of operation matches the owner’s operational expectations, including override behavior, re-entry logic, and time delay constraints. If dimming is involved, confirm that driver models and control methods align with the specified control outputs and that analog wiring practices are defined.

A disciplined submittal process prevents the failures that are expensive to fix later. Ordering errors, incorrect optics, and mismatched topologies are common when submittals are rushed or treated as administrative. The review should also confirm accessories and integration assumptions, such as whether low-voltage control power is available where needed. Where substitutions are proposed, evaluate them against the same constraints rather than only comparing headline features. A reliable deployment often begins with a rigorous submittal review culture.

As-builts, settings tables, and lifecycle maintainability

As-built documentation preserves intent. Zone maps should show what each sensor controls and how zones overlap in larger spaces. Wiring diagrams should reflect the actual installation, including any field changes, and should identify control and power separation practices. Settings tables captured after commissioning should record time delays, sensitivity, modes, and dimming setpoints where applicable. Device inventories tied to physical locations reduce replacement errors and speed troubleshooting.

Lifecycle maintainability depends on these artifacts. Without them, service teams are forced into guesswork, and control systems become fragile over time. Clear documentation also reduces reliance on the original installer and helps owners manage renovations and tenant changes without dismantling the original logic. Documentation improves safety as well, because technicians can identify what is low voltage and what is line voltage before opening boxes. Well-documented systems retain their performance longer because they can be serviced accurately and consistently.

Compliance and standards touchpoints

Functional compliance and verification intent

Compliance should be addressed in functional terms rather than through part lists. Many spaces now require by code, such as ASHRAE 90.1, either manual-on or partial-on user operation, depending on the adopted edition, space type, and local jurisdiction. Requirements often include manual-on behavior in certain space types, limits on time delays, and daylight control behaviors in spaces subject to daylighting provisions. These requirements should be integrated into the sequence of operation early, so the project does not attempt last-minute behavioral changes that degrade occupant experience. Functional compliance also requires verification, meaning commissioning documentation should demonstrate the required behaviors through test results and settings capture.

Verification is easier when compliance intent is explicitly tied to the commissioning workflow. If time delay limits are a requirement, settings tables should show those values, and tests should confirm behavior. If manual-on intent is required, the sequence should specify how auto-on is handled and how manual interaction behaves. When compliance is treated as part of system engineering, inspection approval becomes smoother, and owners are less likely to request post-turnover changes that undermine performance. Clear functional intent reduces the risk of disputes over whether the system meets requirements.

Safety, listing constraints, and installation practices

Safety and listing considerations affect installation practices and long-term reliability. Devices should be installed in environments consistent with their ratings, and wiring should comply with separation requirements between line voltage and low-voltage control conductors. Plenum considerations, enclosure practices, and termination standards should be defined in installation guidance and reflected in as-builts. Clear separation practices also reduce noise coupling and improve analog control stability, which is both a performance and a reliability benefit.

Installation practices should define what constitutes line voltage versus low voltage paths, how those paths are routed, and how they are labeled. These practices support safe service work and reduce accidental modifications during maintenance. They also improve troubleshooting because technicians can identify the correct circuits and control channels quickly. Safety and performance are linked in controls deployments because poor wiring practices can create both hazards and instability. Projects that enforce installation standards tend to experience fewer intermittent problems and fewer repeated service calls.

Appendices: tools, templates, and quick references

Selection matrix and design checklists

A selection matrix creates discipline and prevents decisions from being made on habit. It should capture space behavior, geometry, control intent, electrical constraints, and architecture assumptions in a structured format. A practical matrix also includes the acceptance priorities for the space, such as whether nuisance offsets are intolerable or whether energy capture is prioritized. This matrix becomes a shared language between design, installation, and commissioning teams and reduces the gap between “what was intended” and “what was installed.”

Useful checklist assets include coverage and placement checklists by space type and topology checklists that force verification of neutral availability, driver counts, and inrush assumptions. These checklists should be applied early and again before commissioning to catch field changes. When a project uses both ceiling sensors and switch-format controls, the checklist should explicitly confirm that sensing location constraints are acceptable. Structured tools do not replace engineering judgment, but they reduce the chance that predictable items are missed under schedule pressure.

Commissioning forms, wiring diagram index, and diagnostics matrix

Commissioning forms should capture baseline settings, final settings, test results, and deviations from standard profiles. A good form makes it easy to see what room types share a profile and where unique tuning was required. Wiring diagram indexes should be organized by architecture, such as direct line-voltage switching, low-voltage sensor to power pack, and panel-based switching. This helps service teams quickly identify which diagram applies to a room without searching through unrelated pages.

A diagnostics matrix is one of the most field-valuable assets. It should map symptoms to likely causes, tests, and corrective actions, including categories like nuisance off, nuisance on, flicker, ghosting, relay chatter, and resets. It should also include a section for “systemic versus isolated” behavior to guide whether troubleshooting starts at the device level or at the branch circuit and topology level. When these appendices exist and are used, control systems become maintainable assets rather than fragile special projects.

Where the specified SensorWorx products fit in real designs

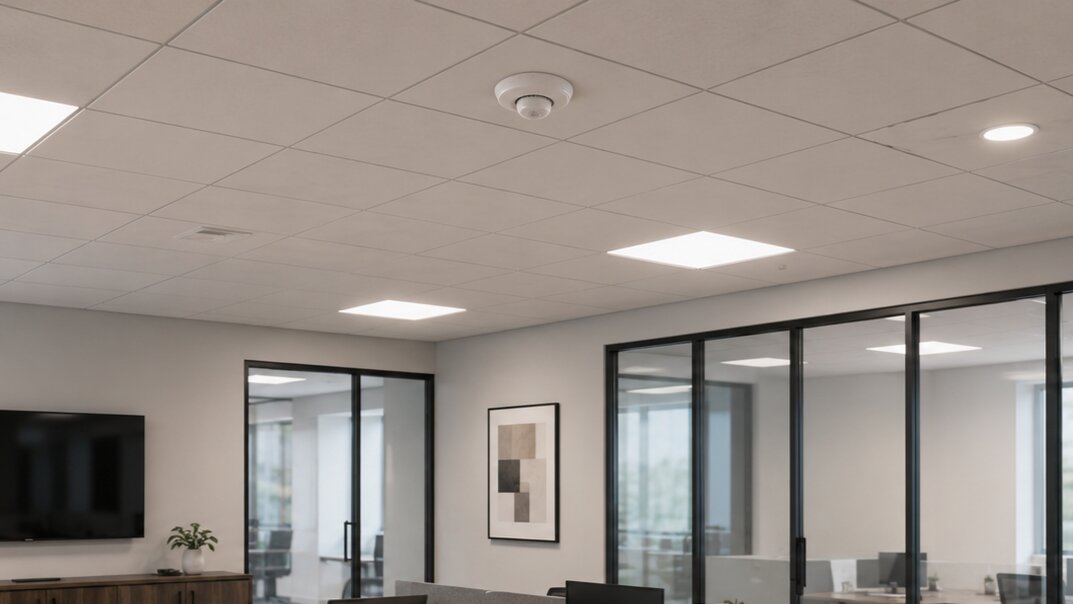

Ceiling dual-technology sensing as a low-voltage input

A ceiling-mounted dual-technology sensor is typically specified when overhead placement provides unobstructed sight lines and when the control architecture relies on low-voltage sensing inputs that communicate with separate switching hardware. The SensorWorx SWX-222-1 Ceiling Occupancy Sensor, Dual Tech, 360° Large Motion, 12–24V should be treated as a low-voltage ceiling-mounted sensing solution intended for larger open areas. Specifications published by BuyRite Electric reference dual-technology sensing, a 360-degree large-motion coverage pattern, and 12–24V operation, making the device well-suited to applications where ceiling mounting supports broad coverage and reliable occupancy hold performance.

In this arrangement, the sensor serves exclusively as an input device. Load switching is performed by a dedicated power pack, relay panel, or contactor selected to match the connected lighting load. Separating sensing from load switching reduces electrical stress on room-level devices and can improve long-term maintainability by centralizing higher-current switching components in accessible locations.

Coverage design remains an important consideration even when dual-technology sensing is employed. Large-motion detection is generally effective for circulation paths and room entry events, but seated micro-motion performance should be confirmed through placement studies and field verification. Furniture layouts, room partitions, and alcoves should be reviewed carefully so coverage assumptions are not based solely on an open-floor-plan condition. The low-voltage architecture also benefits from disciplined conductor routing and clear identification practices to ensure sensor inputs and switching outputs remain traceable during commissioning and future service activities. When these engineering practices are followed, ceiling-mounted dual-technology sensors can provide predictable and stable occupancy-control performance across large commercial building applications.

Switch-format sensing and control for localized rooms

Switch-format sensing should only be selected when the wall-box location provides a clear view of the occupied area. Devices such as the SWX-103-WH inherit the physical limitations of switch placement, making room geometry and occupant movement patterns more important than sensor sensitivity settings. In rooms where the switch location provides good line of sight to typical occupancy areas, a switch sensor can simplify retrofits and provide a straightforward manual interface. The previously referenced SWX-103-WH manual-on PIR switch sensor represents a common pattern where manual-on intent is desired, and local switching is appropriate for the load. For these deployments, acceptance risk often depends on validating that sensing from the wall captures the motion that matters, not only entry motion.

The engineering considerations extend beyond sensing. Switch boxes have thermal and space constraints that can affect long-term reliability, especially in multi-gang conditions. Load bank behavior, especially the LED driver inrush, must be within the tolerance of the device’s switching method. If the project includes dimming or complex overrides, separating sensing and switching into a low-voltage architecture can reduce risk and increase flexibility. The key is aligning the switch-format device role with the architecture rather than forcing it into a role better served by ceiling sensing or centralized switching.

Stand-alone low-voltage dimming control in occupied spaces

Low-voltage stand-alone devices that combine sensing and 0–10V dimming are appropriate when the project architecture expects local control nodes and when analog dimming is part of the user experience. The SWX-121-1-D-GY dual-tech stand-alone dimming switch sensor is an example of a device that should be treated as both a sensor and an analog control endpoint. Routing and separation of the 0–10V conductors, driver compatibility validation, and clear sequence definitions for how dimming interacts with occupancy transitions are the core engineering tasks. Without those, instability can be misdiagnosed as “sensor problems.”

When deployed correctly, this pattern can provide an intuitive local interface with robust sensing and smooth dimming behavior. Commissioning should validate transitions in realistic conditions, including the effect of daylight and typical occupant interactions with manual dimming. The sequence of operation should explicitly define what happens when an occupant manually dims, then leaves and returns, and whether the system restores last level or uses a preset. Clear definitions prevent occupant confusion and reduce post-turnover adjustments that can destabilize the control loop. The result should feel consistent rather than reactive.

Quick reference bullets for field teams

Selection and design reminders

• Validate sensing geometry first, then tune sensitivity, then adjust time delay only if necessary for comfort.
• Treat LED driver inrush as a design constraint and do not rely on steady-state current for switching decisions.
• Keep 0–10V conductors separated from line voltage and avoid long parallel runs near noisy feeders.
• Define override behavior and priority rules explicitly in the sequence of operation and validate end-to-end.

Commissioning and troubleshooting reminders

• Walk tests should include micro motion at real occupant locations, not only walking beneath the sensor.
• For flicker, isolate daylight layers and verify driver behavior separately before changing control settings.
• For ghosting, investigate leakage current paths and minimum load behavior, not only device settings.
• For intermittent resets, investigate terminations, neutrals, and power quality before replacing devices.

Final Thoughts

A SensorWorx deployment that holds up over time is usually the result of disciplined engineering choices made early, not heroic troubleshooting late. Coverage decisions are tied to occupant behavior and room geometry rather than default placements, switching decisions reflect LED driver inrush and load categories rather than steady-state amperage, and 0–10V conductors are treated like the signal paths they are, with proper separation and routing. Commissioning is repeatable and produces real artifacts: settings tables, zone maps, and a clearly written sequence of operation that any qualified team can interpret months later. When those pieces are in place, the control system becomes effectively invisible to occupants, which is exactly what most owners want.

The most practical way to use this guide is as a working standard across design, installation, and commissioning. Use the selection framework to force explicit inputs about motion type, mounting height, partitions, and nuisance tolerance, then use the electrical interface chapter as a gating review so that topology, neutral availability, and inrush exposure are verified before procurement. Fold commissioning forms and test scripts into closeout requirements so the handover package preserves intent.

The specified products should be selected by control architecture: use the SWX-222-1 where overhead dual-tech sensing and low-voltage input architecture are appropriate, the SWX-103-WH where manual online-voltage wall sensing and local switching make sense, the SWX-121-1-D-GY where stand-alone 0–10V dimming control can be wired with proper analog-signal discipline, and the SWX-801-WH where momentary low-voltage inputs are needed for clean event-based overrides.

Reliability improves when each device is aligned with its intended role: ceiling-mounted dual-tech sensing for broad coverage, manual-on-wall sensing for localized control, stand-alone dual-tech dimming control for occupancy-based 0-10V applications, and momentary low-voltage inputs for event-driven override logic. This architecture-first approach typically produces more stable operation and fewer commissioning callbacks.
