- LED wrap fixtures require photometric analysis of light distribution, spacing, uniformity, and glare control, not just total lumen output.
- Real LED wrap fixture performance depends on delivered lumens, thermal management, diffuser quality, and driver reliability, not advertised lumens per watt.
- Selecting LED wrap fixtures without verifying controls compatibility, certifications, installation access, and serviceability increases lifecycle costs and failure risk.

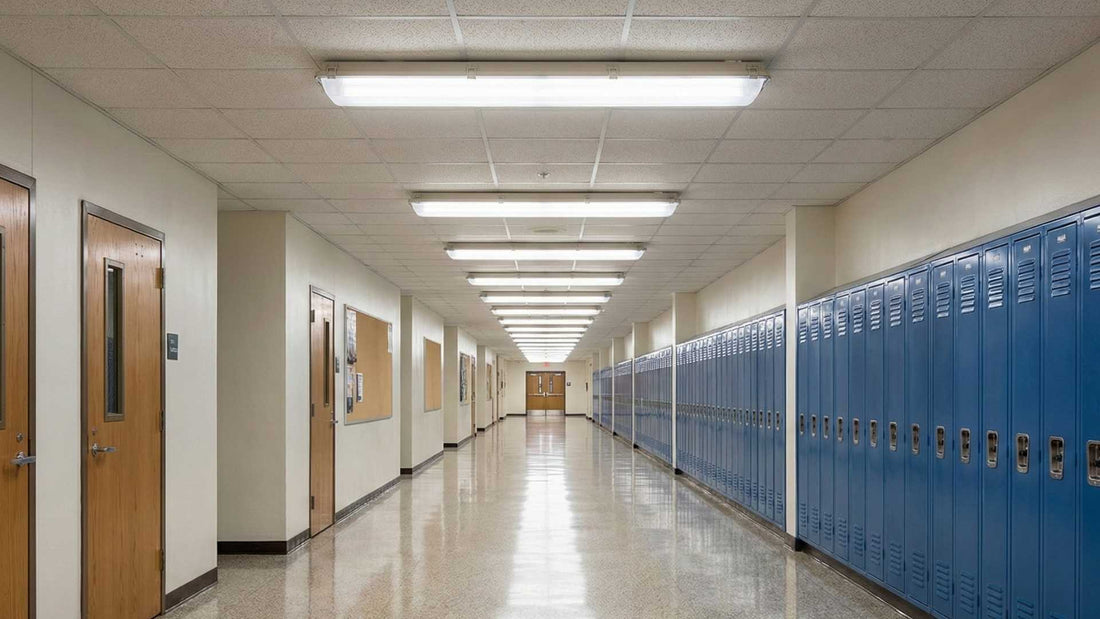

LED wraparound fixtures occupy a unique position in commercial and institutional lighting. They are often treated as commodity luminaires, specified quickly and installed in high volumes across corridors, classrooms, back-of-house spaces, and utility areas. That perceived simplicity is precisely what makes them risky. In practice, wrap fixtures influence visual comfort, energy compliance, maintenance workload, and long-term operating costs far more than most teams anticipate.
Experience across the review, design, and remediation of numerous lighting systems shows the same issues recurring across different sectors. The root cause is rarely poor intent; more often, it stems from incomplete technical evaluation, overreliance on datasheet claims, or a misalignment between design assumptions and real-world conditions. This article identifies eight mistakes that consistently undermine LED wrap fixture performance, with a focus on what professionals should evaluate before fixtures ever reach a jobsite.
Mistake #1: Neglecting Photometric Suitability and Spacing Design
Understanding Light Distribution Beyond Lumen Counts
One of the most persistent errors is specifying LED wraparound fixtures largely on the basis of total lumen output rather than light distribution characteristics. Lumens indicate how much light exits a fixture, but they do not describe where that light goes once installed. Two fixtures with identical lumen ratings can produce entirely different visual results depending on optical design, lens geometry, and housing depth.
In wrap fixtures, distribution is heavily influenced by diffuser shape and internal reflector geometry. Some products create wide batwing distributions ideal for uniform ambient lighting, while others concentrate output directly below the fixture, leading to scalloping and uneven illumination. Without analyzing luminous intensity distribution curves, professionals risk installing fixtures that meet numeric lighting targets on paper but fail visually in the space.
Spacing-to-Mounting Height Ratios and Uniformity Metrics
Spacing mistakes usually appear during post-installation walk-throughs rather than at the design stage. This happens when spacing-to-mounting height ratios are ignored or misunderstood. Fixtures are placed to fit ceiling grids rather than photometric performance, leading to hotspots or insufficient overlap between beams.
When evaluating wrap fixtures, it is recommended that the following be validated using simulation tools such as AGi32 or DIALux:
- Spacing-to-mounting height ratio at target ceiling height
- Average-to-minimum uniformity ratios
- Vertical illumination levels where orientation tasks occur
- Glare potential based on viewing angles and lens brightness
Poor spacing design impacts occupant comfort more than total light levels. Glare, contrast imbalance, and shadow banding often originate here, not from underpowered fixtures.
Mistake #2: Confusing Efficacy with Performance
Why Lumens per Watt Is an Incomplete Metric
High lumens per watt values dominate LED marketing, and many wrap fixtures now claim numbers well above 130 LPW. While this appears impressive, it often creates a false sense of security. Efficacy measures electrical efficiency, not lighting effectiveness. A high-efficacy fixture can still perform poorly in a given application if its optical output is misdirected or excessively diffused.
Professionals sometimes overlook the difference between LED package efficiency and system efficiency. Driver losses, optical losses, and thermal degradation all reduce usable light. A fixture that advertises high efficacy at the component level may deliver significantly less light at the working plane once installed.
Delivered Lumens and Application-Level Evaluation
What ultimately matters is how much usable light reaches the task surface per watt consumed. Delivered lumens account for optical losses caused by diffusers, reflectors, enclosure geometry, and thermal constraints. Unfortunately, many manufacturers still highlight source lumens rather than delivered lumens in their documentation.
When assessing performance, the focus should be on application-level metrics:
- Maintained illuminance at task height
- Total connected load per square foot
- Light loss factor assumptions over time
- System efficacy rather than component efficacy
By evaluating fixtures this way, it becomes much easier to separate genuinely efficient products from those optimized primarily for marketing claims.
Mistake #3: Underestimating Diffuser Optics and Material Quality
Optical Function Versus Visual Appearance
Diffusers are often treated as aesthetic elements, yet they play a central role in performance. In wrap fixtures, the diffuser determines beam spread, luminance uniformity, glare control, and overall efficiency. A poor diffuser can reduce effective output by double-digit percentages without any obvious warning in the datasheet.
Specifications often describe the diffuser only as “frosted” or “opal,” without providing data on transmittance or optical behavior. This lack of detail leaves performance outcomes largely to chance. Diffuser selection should be treated with the same level of scrutiny applied to LED boards or drivers.
Material Selection and Long-Term Degradation
Material choice significantly affects light transmission stability over time. Acrylic diffusers typically offer high clarity and uniformity initially but may crack under impact. Polycarbonate diffusers are more durable but can scatter light more aggressively and reduce efficacy if poorly formulated. Lower-grade plastics may yellow, haze, or embrittle due to heat and UV exposure.
When reviewing diffusers, we should look for:
- Documented light transmission percentages
- UV stabilization data
- Impact resistance ratings where required
- Evidence of long-term optical stability
Ignoring diffuser quality often results in unwanted light loss and color distortion several years after installation, long after warranties are forgotten.
Mistake #4: Inadequate Focus on Thermal Management
The Reality of Heat Inside Wrap Fixtures
The idea that LEDs do not generate meaningful heat remains one of the most damaging misconceptions in lighting design. LEDs produce less radiant heat than legacy sources, but they still generate substantial junction heat that must be actively managed. Wrap fixtures exacerbate this challenge because they are typically enclosed and surface-mounted close to ceilings with limited airflow.
If heat is not effectively dissipated, LED junction temperatures rise, accelerating lumen depreciation, shifting chromaticity, and shortening driver life. In my experience, thermal issues explain a majority of early LED fixture failures.
Evaluating Thermal Design and Ambient Conditions
Thermal management is not just about heat sinks. It involves airflow paths, material conductivity, driver placement, and ambient operating conditions. A fixture tested at 25°C ambient may behave very differently in a warm ceiling plenum or industrial environment.
When evaluating wrap fixtures, professionals should confirm:
- Maximum rated ambient temperature
- LM-80 data paired with TM-21 projections
- Housing materials and heat dissipation methods
- Driver thermal isolation from LED boards
Fixtures designed with integrated aluminum thermal pathways consistently outperform sealed steel housings in high-use environments. Thermal design should be evaluated as a system-level concern, not a secondary attribute.
Mistake #5: Choosing Fixtures That Limit Control System Integration
Dimming, Protocols, and Controls Compatibility
Lighting control systems have evolved well beyond basic on-off switching or simple occupancy sensors. Most commercial buildings now require integrated controls to meet energy codes and operational goals. Despite this, many wrap fixture selections still disregard protocol compatibility. Specifiers might select a fixture listed as "dimmable," only to later discover it supports only 0–10V analog dimming and lacks the ability to integrate with digital platforms like DALI-2, Bluetooth Mesh, or Zigbee.
This oversight becomes costly when retrofitting into control-heavy environments. Misalignment between the driver and control system can introduce flicker, poor dimming curves, or even total incompatibility. I’ve seen this happen in facilities with networked control systems, where legacy dimming drivers caused erratic behavior or failed commissioning tests. This is particularly problematic when fixtures are expected to interface with centralized building management systems or advanced scheduling platforms.
Sensor Integration and Emergency System Readiness
Beyond dimming capability, it is essential to assess whether a fixture can accommodate or integrate external or onboard sensors. Many wrap fixtures are sealed or offer limited internal space, making them incompatible with plug-in sensors or emergency inverters. Evaluation should include not only the control protocol, but also the fixture’s form factor, access points, and available knockouts for third-party integration.
In addition, ensure the fixture can accommodate:
- Occupancy and vacancy sensors
- Daylight harvesting photocells
- Battery backup drivers and test switches
- Wireless mesh controllers or relay modules
Skipping this evaluation may force costly field retrofits or result in partial system integration that fails to meet energy codes or commissioning requirements.
Mistake #6: Over-Prioritizing Initial Cost vs. Lifecycle Costs
Why Lowest-Cost Fixtures Often Become the Most Expensive
It’s not uncommon for value engineering discussions to focus solely on fixture unit cost, ignoring total ownership costs over time. Unfortunately, this creates a race to the bottom. Low-cost wrap fixtures often feature unbranded drivers, low-bin LED packages, and cost-cut diffuser materials. They might meet code on day one, but their long-term performance quickly deteriorates under real-world conditions.
I’ve revisited projects where the lowest-bid fixture failed in less than three years due to driver burnout, discolored lenses, or significant lumen drop-off. In those cases, the cost of replacing failed fixtures and paying for labor quickly exceeded any savings achieved during procurement. Worse, in tenant-occupied or public environments, early failures damage trust and reduce the perceived value of the lighting upgrade.
Calculating and Comparing Total Cost of Ownership (TCO)
A more sustainable approach is to evaluate fixtures using total cost of ownership (TCO) models that factor in:
- Energy usage based on real LPW
- Projected lumen maintenance (L70, L80 over time)
- Labor and access costs for driver or LED replacement
- Downtime or access costs in difficult-to-reach areas
- Warranty fulfillment and OEM support access
You should always examine TM-21 projections, driver specs (PF, THD, ambient rating), and ask vendors to quantify savings over 50,000 to 100,000 hours. While higher-quality fixtures may carry a premium, their performance stability, warranty coverage, and compatibility with long-term energy incentives more than justify the investment.
Mistake #7: Non-Compliance with Codes, Listings, and Standards
Certification Gaps and Their Hidden Costs
Fixture compliance is a non-negotiable aspect of commercial and institutional lighting projects. However, wrap fixtures are frequently installed without confirmation of required certifications. Lack of UL listing, DLC qualification, or proper IP rating can jeopardize inspection approvals, invalidate rebate eligibility, or even expose owners to liability.
For example, many rebate programs require DLC Premium certification, not just standard DLC. Some facility types, such as food service or healthcare, require NSF or special ingress protection ratings. Choosing an uncertified or under-certified fixture might save a few dollars upfront but could trigger far greater financial and regulatory consequences.
Environmental and Code-Specific Requirements
Professional specifiers should confirm not only national standards but also jurisdiction-specific energy codes. Depending on location and application, you may need to verify:
- UL or ETL listing for safety compliance
- DLC Premium for utility rebate programs
- FCC compliance (particularly Part 15) for electromagnetic emissions
- Damp or wet location ratings, based on exposure
- IP ratings (typically IP44 or higher for industrial environments)
- IK ratings in vandal-resistant or impact-prone settings
- ASHRAE 90.1 compliance for energy controls
Every one of these certifications carries implications for acceptance, incentives, and longevity in your project. Always require verification from the manufacturer, not just claims on spec sheets.
Mistake #8: Disregarding Installation Access and Long-Term Serviceability
Mounting Constraints and Wiring Limitations
Even technically sound fixtures can become headaches during installation if their form factor, mounting hardware, or access points are not suited for the site conditions. In many cases, installers are forced to fabricate brackets, cut ceiling tiles, or reroute conduit simply because the fixture design wasn't evaluated against ceiling structure, grid configuration, or junction box access.
When selecting wrap fixtures, it is advisable to request a dimensional drawing that shows:
- Mounting footprint and hole spacing
- Knockout locations and driver access points
- Compatibility with surface mount, T-bar grid, or pendant systems
- Whether the fixture supports continuous row installation or standalone deployment
It is also important to confirm that the fixture includes all mounting hardware and wire access channels required for fast, low-friction installation. A few minutes saved per fixture can add up significantly when multiplied across hundreds of units.
Maintaining Fixtures Without Disassembly Hassles
Serviceability becomes a serious issue once fixtures are mounted at height or in critical areas. If servicing requires fixture removal or extensive disassembly, maintenance costs skyrocket. Modular fixture designs that allow driver or LED board replacement without removing the unit from the ceiling are much easier to manage over a 10-year lifecycle.
It is recommended to specify fixtures that feature:
- Tool-free lens removal
- Hinged chassis or removable gear trays
- Driver compartments accessible from below
- Clear labeling of internal components
These details are often omitted from cut sheets but make all the difference during emergency battery replacements or warranty service work. Make serviceability a specification requirement, not an afterthought.
Specification Checklist for LED Wrap-Around Fixtures
To support your specification and selection process, I’ve included a detailed checklist covering each major dimension of wrap fixture performance. Use this to verify product suitability during design review or procurement:
Photometric Evaluation:
- Delivered lumens at installed CCT
- Beam pattern suitable for application (e.g., wide vs. narrow)
- IES file availability and recent photometric lab date
- SMHR validation for uniformity
Optical and Material Quality:
- Diffuser light transmission percentage
- Material: PMMA, polycarbonate, or tempered glass
- Lens UV resistance and anti-yellowing treatment
- Luminance uniformity across diffuser
Electrical and Controls:
- Driver make, model, and specs (PF > 0.9, THD < 20%)
- Dimming protocol supported (0–10V, DALI, etc.)
- Compatibility with occupancy and daylight sensors
- Emergency battery backup readiness
Compliance and Certification:
- UL, CSA, or ETL listing (depending on region)
- DLC Premium qualification for rebates
- IP, IK, and damp/wet location ratings
- Code compliance: ASHRAE 90.1, IECC
Installation and Maintenance:
- Mounting options and hardware included
- Knockout locations and access for wiring
- Modular serviceability (driver, LED board access)
- Availability of accessories (sensor kits, row joiners, wire guards)
Make this list a regular part of your pre-bid review, and you’ll avoid most of the mistakes discussed in this article.
FInal Thoughts
Choosing LED wrap-around fixtures may appear straightforward, but as this article has shown, there are multiple technical layers that demand attention from lighting professionals. From photometric performance and thermal behavior to controls compatibility and lifecycle economics, each aspect of fixture design influences the long-term success of your lighting system.
I’ve written this not just to warn against mistakes but to equip you with the questions and criteria that should be central in your evaluation process. By applying detailed scrutiny to each fixture’s optical, thermal, electrical, and compliance attributes, you ensure that your project delivers quality, efficiency, and maintainability over time. Good lighting design begins with good product selection, and that starts with avoiding the eight pitfalls we’ve now covered in full.
