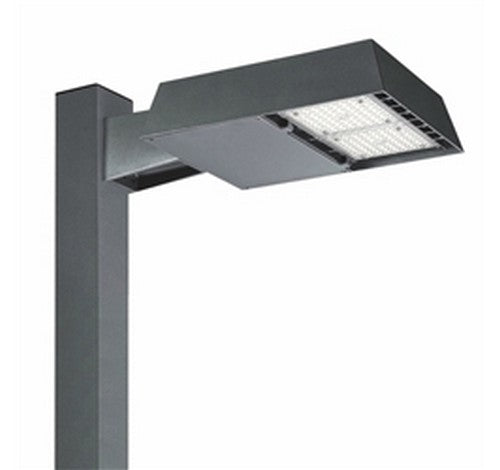

Hubbell Outdoor Lighting RAR2-165 100W Dark Bronze RATIO LED Area/Site Fixture,Type 3, 21000 Lumens

2 sold in last 8 hours
customers are viewing this product

Low profile LED area/site luminaire with a variety of IES distributions for lighting applications such as retail, commercial and campus parking lots Featuring Micro Strike Optics which maximizes target zone illumination with minimal losses at the house-side, reducing light trespass issues Visual comfort standard Compact and lightweight design with low EPA 3G rated for high vibration applications including bridges and overpasses Control options including photo control, occupancy sensing, NX Distributed Intelligence™ and 7-Pin with networked controls Best in class surge protection available



Rectilinear form mimics the traditional
shoebox form factor keeping a similar but
updated style and appearance, ideal for
retrofit applications
Die-cast housing with hidden vertical heat
fins that are optimal for heat dissipation while
keeping a clean smooth outer surface
Corrosion resistant, die-cast aluminum
housing with powder coat paint finish


Entire optical aperture illuminates to create
a larger luminous surface area resulting in
a low glare appearance without sacrificing
optical performance
80, 160, 320 or 480 midpower LEDs
3000K, 4000K or 5000K (70 CRI) CCT
Zero uplight at 0 degrees of tilt
Field rotatable optics


Standard square arm mount, compatible with
B3 drill pattern
Optional universal mounting block for ease
of installation during retrofit applications.
Available as an option or accessory for
square and round poles.
Knuckle arm fitter option available for 2-3/8”
OD tenon. Max tilt of 60 degrees with 4
degree adjustable increments. (Restrictions
apply for 7-pin options)


Universal 120-277 VAC or 347-480 VAC input
voltage, 50/60 Hz
Ambient operating temperature -40˚C to 40˚C
Drivers have greater than 90% power factor
and less than 20% THD
LED drivers have output power over-voltage,
over-current protection and short circuit
protection with auto recovery
Field replaceable surge protection device
provides 20kA protection meeting ANSI/
IEEE C62.41.2 Category C High and Surge
Location Category C3; Automatically takes
fixture off-line for p


DLC® (DesignLights Consortium Qualified,
with some Premium Qualified configurations.
Listed to UL1598 and CSA C22.2#250.0-24
for wet locations and 40˚C ambient
3G rated for ANSI C136.31 high
vibration applications
Fixture is IP66 rated
Meets IDA recommendations using 3K CCT
configuration at 0 degrees of tilt


5 year limited warranty
See HLI Standard Warranty for
additional information
