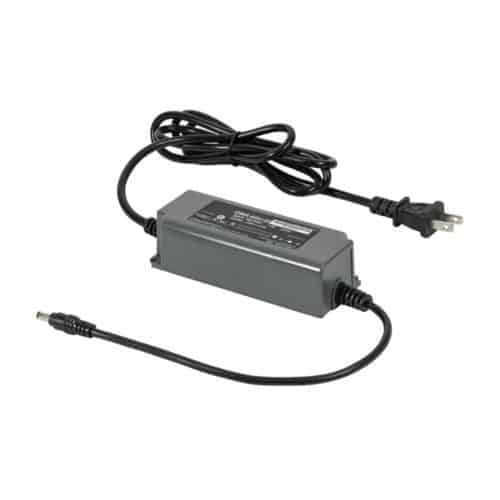

Core Lighting PS-90W-24V-CL2

PS-90W-24V-CL2 Product Description

Short circuit, over current, over voltage, over temperature protection. High efficiency up to 91%. Class 2 power unit.

Features:

Input Voltage 90 ~ 264V AC
Input Frequency 50/60Hz +/- 3Hz
Output Voltage 24V DC
Output Power 90W
Rated Load Current 3.75A
MTBF 292.8Khrs
Dimensions 6-3/4”L x 2-1/2”W x 1-1/2”H
Operating Temperature † -40°C – +70°C
Operating Humidity 20% ~ 95% RH
Environment Dry or Damp
Certifications c-UL-us
Warranty 5 Years – see published
warranty terms for detailed
information.

About Core Lighting:

Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
