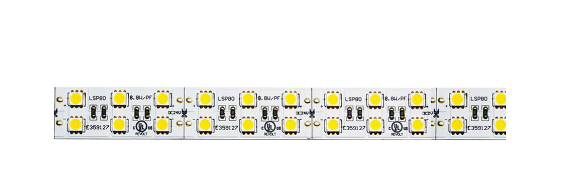

Core Lighting LSP80-35K-PF-24V-HR95
LSP80-35K-PF-24V-HR95 Product Description
LSP80 Super High Output strip is designed to produce more than 720 lumens at 8.8 Watts per foot. These field cuttable LED strips are offered in a low profile design that can be attached almost anywhere and are great for many common lighting applications, such as cove lighting or cabinets. LSP80 series produces a 120° light beam spread and is offered in different color temperatures to fit your specific needs. UL listed.
SPECIFICATIONS:
INPUT VOLTAGE: 24V DC
POWER CONSUMPTION: 8.8W per foot
LUMEN OUTPUT: 720 Lumens per foot
NO. OF LEDs: 36 LEDs per foot
BEAM ANGLE: 120º
CRI: 90+
DIMMING: MLV, ELV, 0-10V and TRIAC
MAXIMUM RUN LENGTH: 24 Feet
FIELD CUTTABLE: Every 2.0 in (50.8MM)
IP RATING: IP45 dry location (indoor)
LUMEN MAINTENANCE: 50,000 hrs.
OPERATING TEMPERATURE: -40ºF(-40ºC)~+140ºF(+60ºC)
BINNING: 1.5 Step Macadam Elipse
CERTIFICATIONS: UL listed
DIMENSIONS: 0.78” x 0.08 (width x height)
FEATURES:
■ 8.8W per Foot
■ 720 Lumens
■ 90+ CRI
■ Two rows of high-output diodes
■ 24 Feet Maximum Run Length
■ Ideal for accent and ambient lighting
■ Multiple CCT options available
■ UL Listed, Title 24 JA8 compliant
■ Dimmable with CORE dimmable drivers
■ Approved for closet / storage space installation
per NEC 410. 16(A)(3) and 410.16(C)(5)
About Core Lighting:
Core Lighting focus is to refine today’s illumination by developing cutting-edge and technologically advanced lighting products that are functional and energy efficient. Core Lighting has set the tone for what sets the company apart from the rest by striving for innovation, uncompromising quality and customer focused service.
