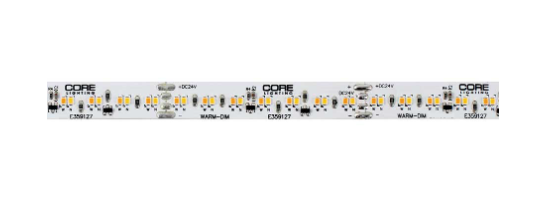

LSM-35WD is a warm-dim LED strip with smart chip technology. Using a standard wall box dimmer, this LED strip automatically shifts color temperature from 3000K down to 1800K as it is being dimmed down. LSM-35WD provides warm-dim technology at a fraction of the price without the need for any special lighting control system.

SPECIFICATIONS:

INPUT VOLTAGE: 24V DC
POWER CONSUMPTION: 3.6W per Ft.
LUMEN OUTPUT: 210 Lumens per Ft.
NO. OF LEDS: 64 LEDs per Ft.
BEAM ANGLE: 120°
CRI: 95+
DIMMING/ CONTROL: MLV, ELV, 0-10 AND TRIAC
MAXIMUM RUN LENGTH: 21 Ft.
FIELD CUTTABLE: Every 2.4 in
IP RATING: IP45 dry location (Indoor)
OPERATING TEMPERATURE: -40°F (-40°C) ~ 140°F (60°C)
BINNING: 1.5 Step Macadam Elipse
LUMEN MAINTENANCE 50,000 Hrs.
CERTIFICATIONS: UL Listed, TITLE 24 JA8
DIMENSIONS: 0.47” x 0.04” (11.9mm x 1.2mm) (WxH)
WARRANTY: 5 Years

FEATURES:

• 3.6W per Ft
• Auto Warm-Dim Technology
• Field cuttable
• Suitable for accent or ambient lighting
• Ideal for Commercial and Residential Applications
• No Special Controllers Required
• Superior COLOR RENDERING INEX (CRI)
• Architectural Grade LED Lghting
• UL Listed
• California TITLE 24 JA8 Compliant
• Approved for closet / storage space installation per NEC 410. 16(A)(3) and 410.16(C)(5)
