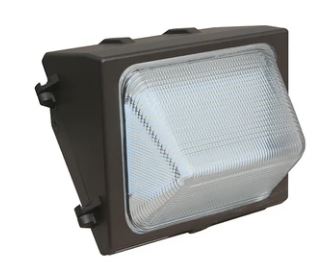

Westgate WMX-SM-15-30W-50K

WMX-SM-15-30W-50K Product Description

• ADC12 Aluminum Heat Sink, Outdoor Powder Coating
• Connect One End or Both Ends (Dual Function)
• Multi-Power Switch is inside the Fixture
• 7-year warranty
• Prismatic Borosilicate Glass Lens

SPECIFICATIONS:

ELECTRICAL:
• Input Wattage: 15/20/25/30W
• Input Voltage: 120-277V AC 50/60Hz
• Input current: 0.35A
• Power factor: >0.9
• Efficacy: 130 LPW

Mechanical:
• ADC12 Aluminum Heat Sink, Outdoor Powder Coating
• Lens: Prismatic Borosilicate Glass Lens
• Same Footprint as Traditional HID Wall Packs
• Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
• Mounting: Wall Mounting
• Operating Temperature: -40°F ~ 104°F
• Lifespan: 70000 Hrs.
• IP rating: IP65, Wet Locations

Lighting:
• Dimming: 0-10V Dimming
• Chip: Philips Lumileds LEDs
• Multi-Power Switch is inside the Fixture
• Total Lumens: 4200LM Max.
• Color Temperature: 3000K/4000K/5000K
• CRI: >70

APPLICATIONS:
• Ideal for general site lighting, alleys, loading docks,
doorway, pathway and parking areas.
• Replace existing HID wall packs
• Great for use with photocell
