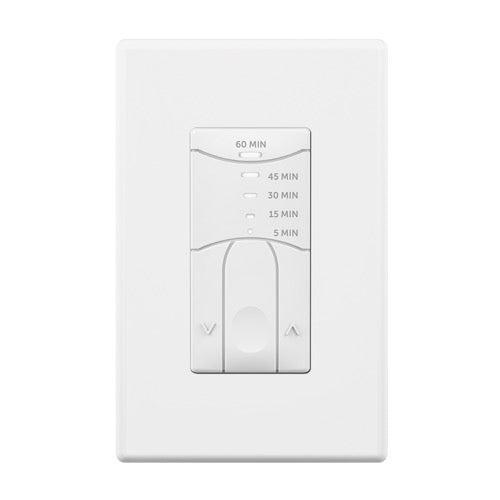

SensorWorx SWX-843-60M-LA

SWX-843-60M-LA Product Description

The SensorWorx interval timer switches provide an automatic lighting control solution that is intuitive to operate. Designed with contractors in mind, the unit is significantly shallower than typical timers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For interval adjustment, raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the timer setting / time remaining. Configurable parameters include Maximum Time Setting, Blink Timeout Warning, Turn on Timer Levels, and LED Indication. This stylish unit also matches the SensorWorx family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.

Specifications:

Brand: SensorWorx
Part Number: SWX-843-60M-LA
Switch Type: Button
Input Voltage: 120-277V
Sensor Coverage: 2,025 Sq Ft
Special Features: B.A.A. Compliant
Made in USA: Yes
Color: Light Almond

Features:

Accommodates neutral (3-wire) and no-neutral (2-wire) installation
Electronically timed switching ensures long relay life
Meets NEC 404.2(c) and 404.22 guidelines regarding powering over ground and current leakage
Enclosure is 25-40% shallower than other timers (less than 1” depth into wallbox)
Self-grounding mounting strap
Modern look and intuitive easy-tap buttons for On/Off, Increase Time, and Decrease Time
Settings are adjustable without removing cover plate
5 LED time level indicators
Configurable parameters including maximum time, turn on timer Setting, and blink warnings
Blue locator LED when lights are off

About SENSORWORX:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
