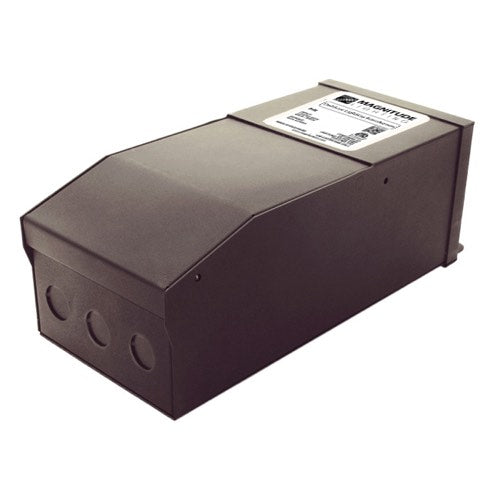

Magnitude Lighting X1200SOD

X1200SOD Product Description

The X-Series is a multi-tap magnetic dimmable transformer making it the perfect choice for landscape and other indoor or outdoor lighting applications. Encased in a high-quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, each unit is equipped with push-to-reset breakers, one on each output, to protect both the driver and the load. All of our magnetic transformers are phase dimmable with a standard leading edge MLV TRIAC dimmer.

Specifications:

Manufacturer: Magnitude Lighting
SKU: X1200SOD
Input Voltage Range: 120VAC ± 10%
Input Frequency: 50 / 60Hz
Input Current: 10.20A
Efficiency: > 93%
Max Load: 4 x 300W (12VAC), 2 x 600W (24VAC)
Output Voltage @ Max Load: 12 VAC / 24 VAC
Output Current @ Max Load: 50A (12VAC) / 100A (24VAC)
Open Circuit Output Voltage: 13.0 VAC / 26.0 VAC
Operating Temperature: -22°F - 113°F
Min. Installation Spacing: 5"
Thermal Class: B130°C
Minimum Dimming Level: 1%
