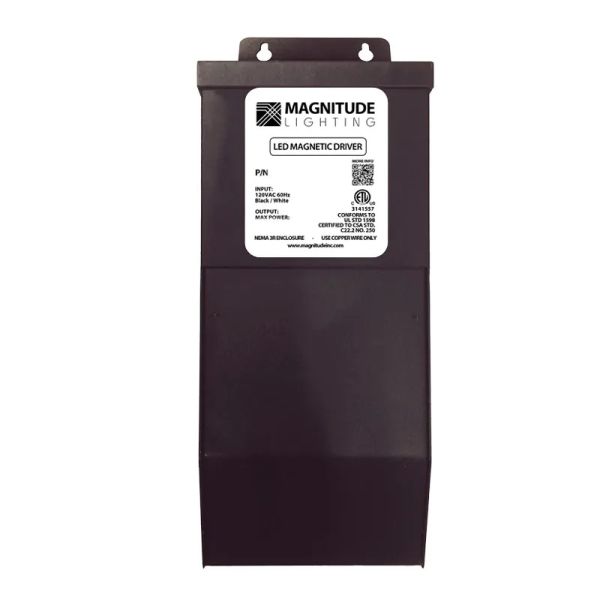

Magnitude Lighting M500S24OD

M500S24OD Product Description

The AC-SERIES is the most compact magnetic core dimmable transformer on the market, making it the perfect choice for landscape and other indoor or outdoor lighting applications. Encased in a high quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, each unit is equipped with circuit breakers to protect both the driver and the load. All of our magnetic transformers are phase dimmable with a standard leading edge MLV TRIAC dimmer.

Specifications:

Manufacturer: Magnitude Lighting
SKU: M500S24OD
Input Voltage Range: 120VAC ± 10%
Input Frequency: 50 / 60Hz
Input Current: 5.12A (12VAC), 5.12A (24VAC)
Efficiency: 90.5% (12VAC), 89.0% (24VAC)
Max Load: 500W
Output Voltage @ Max Load: 11.5 VAC (12VAC), 23.0 VAC (24VAC)
Output Current @ Max Load: 41.0A (12VAC), 21.0A (24VAC)
Open Circuit Output Voltage: 12.5 VAC (12VAC), 23.0 VAC (24VAC)
Operating Temperature: -22°F - 113°F
Min. Installation Spacing: 5"
Thermal Class: B130°C
Minimum Dimming Level: 1%

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
